106
CHANGE OF WHEELS TREAD
E503

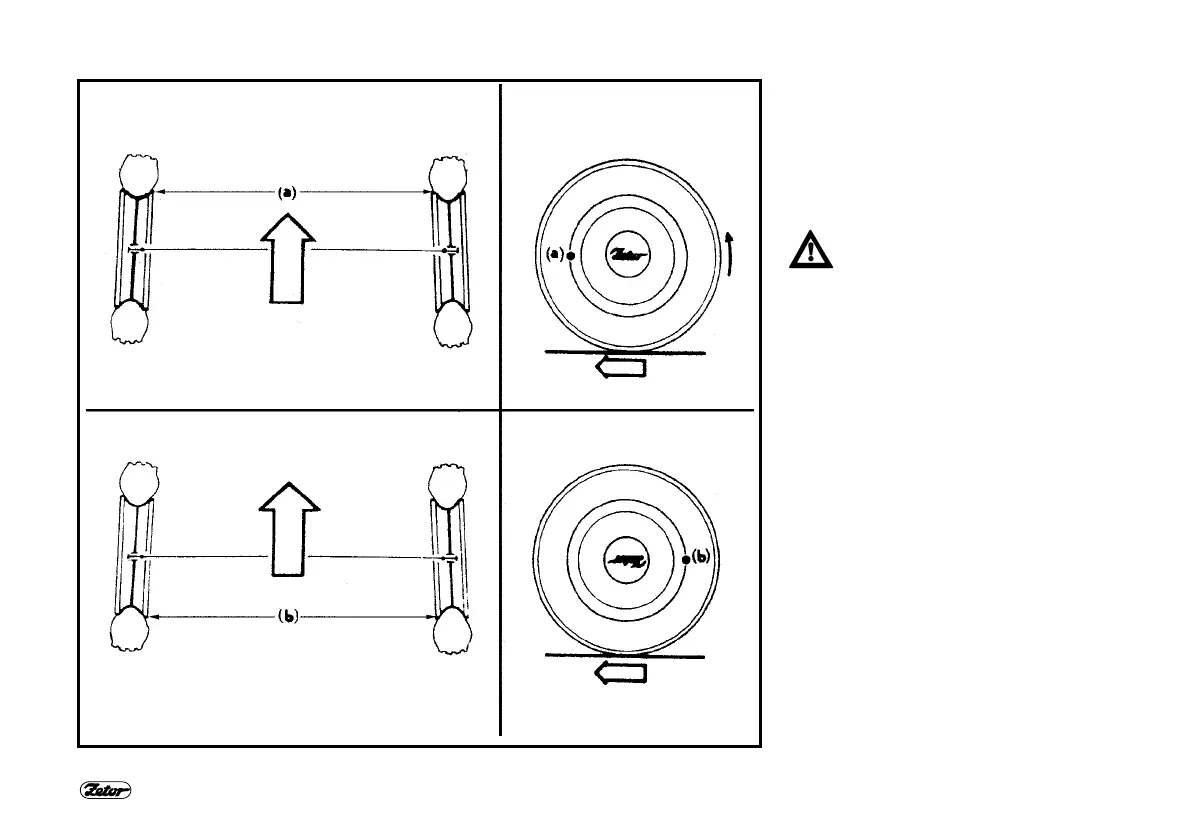

FRONT WHEELS TOE-IN
The value of front wheels toe-in was
measured on the rim of the tractor:
With driving axle: 0 to 4mm
The toe-in “S“ is given by the difference
of the measured values: S = b - a.
Before you check the toe-in, it is
necessary to inflate the front
tyres to the prescribed pressure.
Measurement of toe-in is per-
formed on rims of the wheels.
