DRIVE OF FARMING MACHINES
E357
E358
REPLACEABLE TERMINALS OF THE
REAR OUTPUT SHAFT
The tractor is equipped standardly with a
terminal having 6 splines.
∗The tractor may also be equipped upon
request with a replaceable output shaft
terminal having 6 or 21 splines.

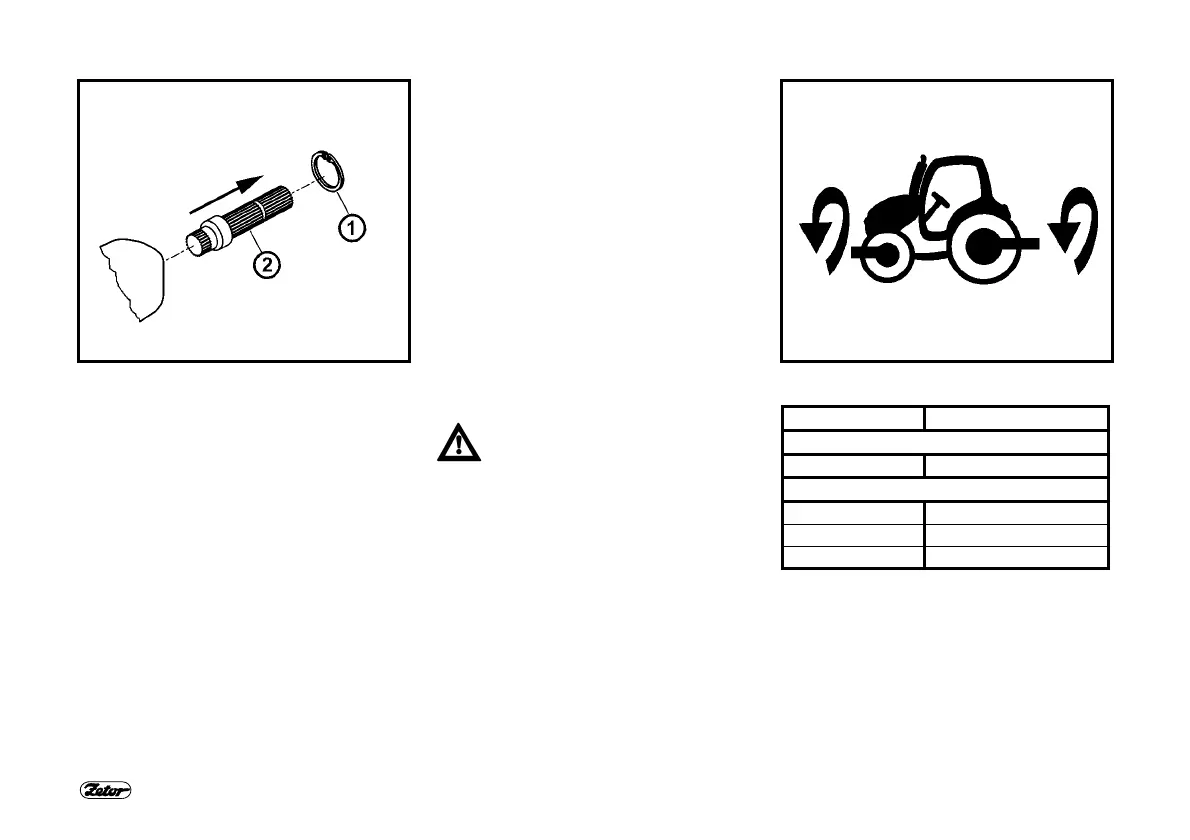

Replacement procedure:
1. Using circlip tongs remove the circlip
(1)
2. Pull out the replaceable terminal (2)
in direction of the arrow.
3. Perform installation of a new termi-
nal in reverse order and pay special
attention to installation of the circlip
(1).
Replacement of the terminal shall
be performed when the engine is
stopped.
Rpm of the output shaft and
terminal type shall be chosen
depending on the prescribed rpm
of the coupled mechanism.
Shifting 540 and 1,000 or 540E
min
-1
is possible regardless to the
number of splines of the installed
terminal.
MAXIMUM TRANSFERRED POWER
Output shaft Transferred power
front
1,000 min
-1
45 kW*
rear
1000 min
-1
full engine power
540 min
-1
full engine power
540E min
-1
full engine power
*In case of a transfer without shocks the
value of the maximum transferred power
can be increased to 50 kW.
