Page A-15
ZF M athers, LLC
12125 Harbour Reach Drive, Suite B
Muki l teo, WA 98275 U. S. A.
800 -54 6 -54 55 / 4 25-583-1 900
Fax: 425-493-1569
MMC-307 Rev.G 8/03

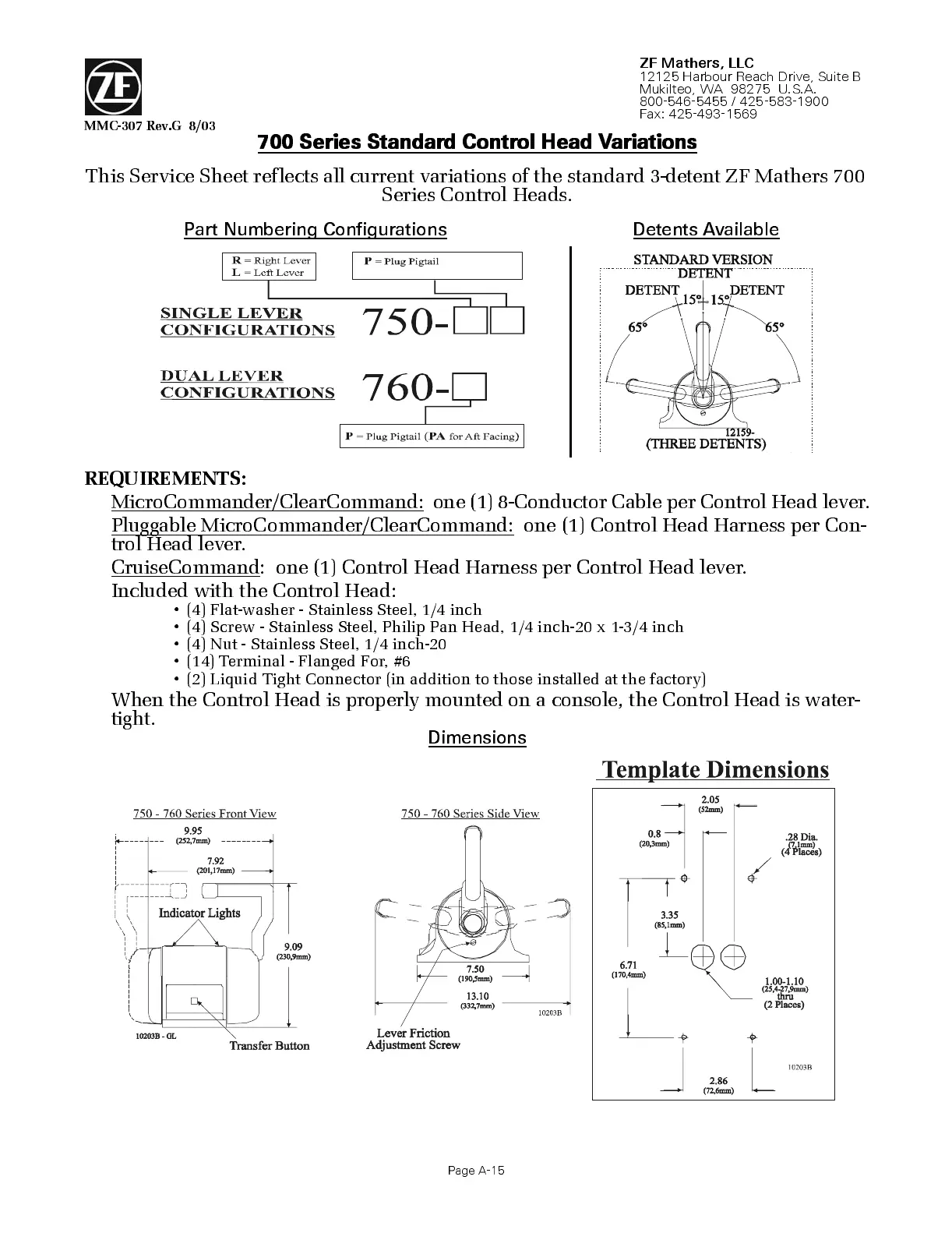

This Service Sheet reflects all current variations of the standard 3-detent ZF Mathers 700
Series Control Heads.
REQUIREMENTS:
MicroCommander/ClearCommand: one (1) 8-Condu c to r Ca b le p er Contro l H ea d le ve r.
Pluggable MicroCommander/ClearCommand: one (1) Control Head Harness per Con-
trol Head lever.
CruiseCommand: one (1) Control Head Harness per Control Head lever.
Included with the Control Head:
• (4) Flat-wa sh er - Stainless Steel, 1/4 inch
• (4) Screw - Stainless Steel, Philip Pan Head, 1/4 inch-20 x 1-3/4 inch
• (4) Nut - Stainless Steel, 1/4 inch-20
• (14) Terminal - Flanged For, #6
• (2) Liquid Tight Connector (in addition to those installed at the facto ry)
When the Control Head is properly mounted on a console, the Control Head is water-
tight.
700 Series S tandard Contr ol Head V ariations
Part Numbering Configurations Detents Available
Dimensions
