Page A-44
I) Cable Installation [Refer To Figure 2:]
1. Remove and retain the jam nut from the end of the 43C cable to be installed
in the Actuator/Processor.
2. Remove and discard the rubber boot and the rubber dust cover from the e nd
of the 43C cable to be installed in the Actuator/Processor.
3. Insert the end of the cable through the hole in the Actuator/Processor.
4. Thread the jam nut onto the end of the cable inside the Actuator/Processor.
5. On the outside of the Actuator/Processor, press the 43C Cable Retainer over
the notch in the 43C cable. This is intended to be a snug fit and may require
some force.
6. Install tw o screws through the 43C Cable Retainer and into the Actuator/Pro-
cessor.
7. Tighten the two screws securely with a Phillips Screwdriver.
8. Insert the 43C Cable Connect Nut through the cross -bar .
9. Thread the 43C Cable Connect Nut onto t he end of the 43C cable.
10.After the cable connect nut is threaded onto the cable, tighten the jam nut
against the cross-bar using a 7/16 nut driver or socket and 7/16 open end
wrench.
11.Replace cover to Actuator/Processor. Refer to technical manual supplied
with the Actuator/Processor for any other required set up or adjustment.
NOTE: 43C
CABLE
AND
JAM
NUT
ARE
SUPPLIED
BY
OTHERS
.

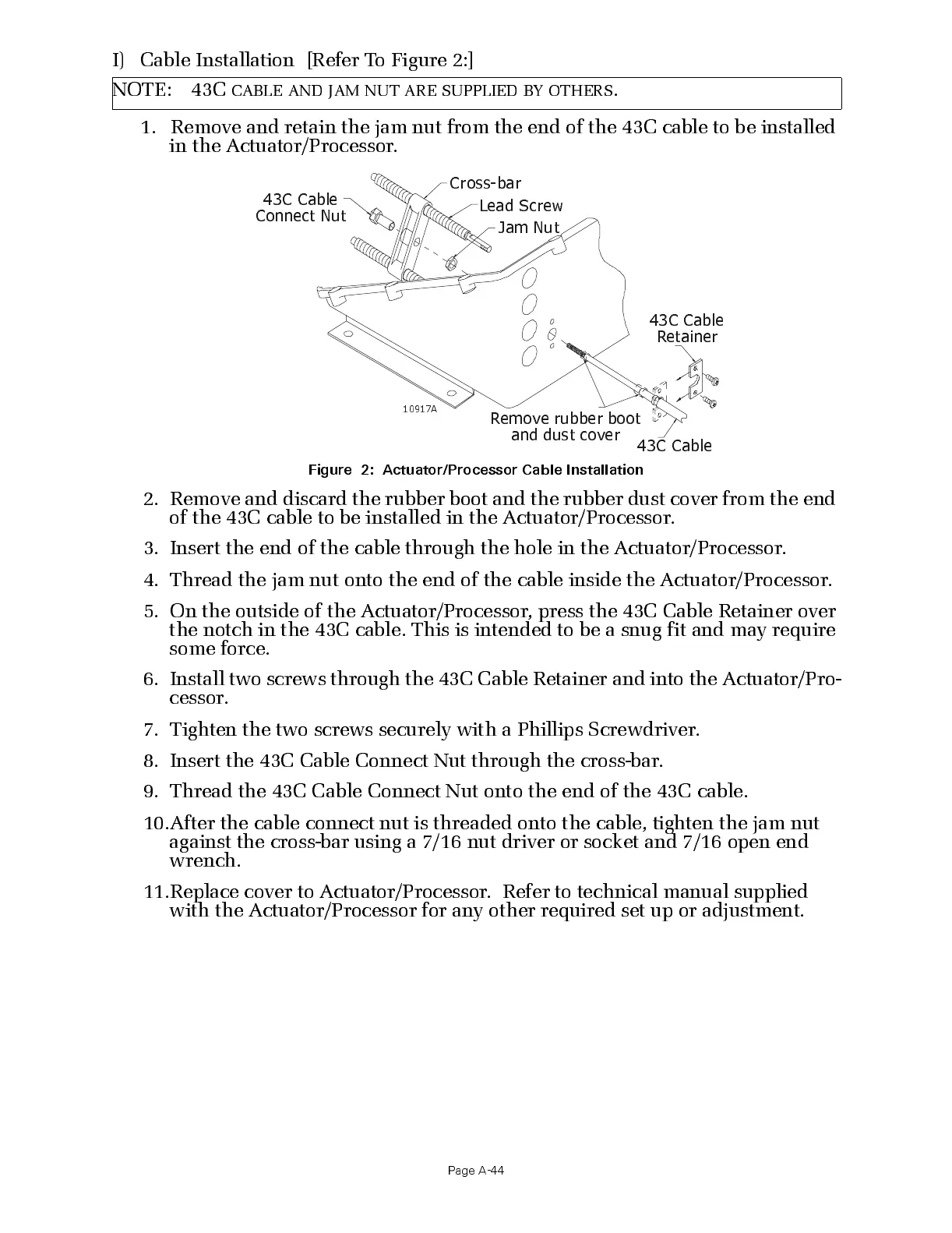

Figure 2: Actuator/Processor Cable Installation
43C Cable
Connect Nut
Cross-bar
Lead Screw
Jam Nut
43C Cable
Retainer
43C Cable
Remove rubber boot
and dust cover
10917A
