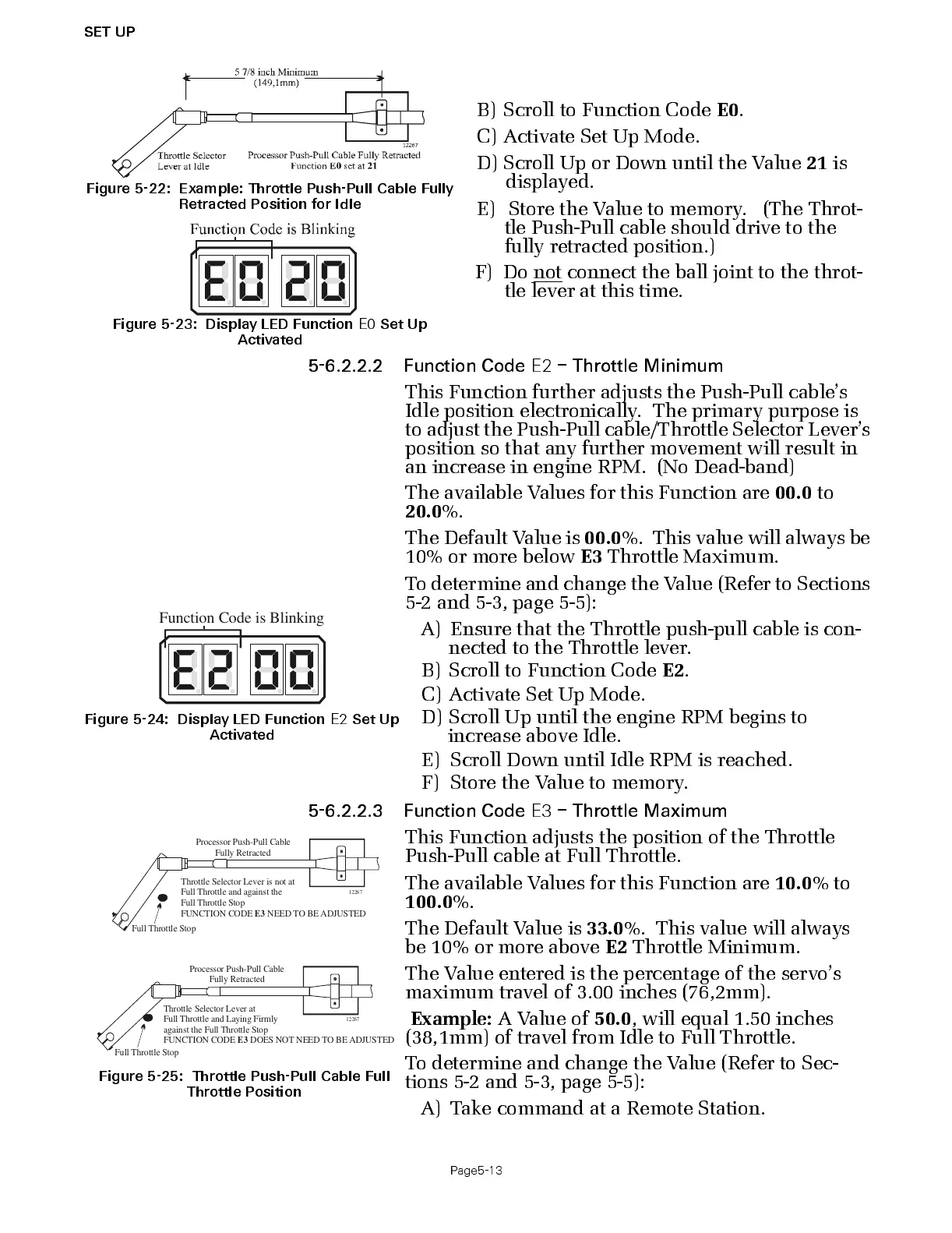

SET UP
Page5-13
5-6.2.2.2 Function Code E2 – Throttle Minimum
5-6.2.2.3 Function Code E3 – Throttle Maximum
Figure 5-22: Example: Throttle Push-Pull Cable Fully
Retracted Position for Idle
Figure 5-23: Disp lay LED Function E0 Set Up
Activated
B) Scroll to Function Code E0 .
C ) Acti v ate Set Up Mode.
D) Scroll Up or Down until the Value 21 is
displayed.
E) Store the Value to memory. (The Throt-
tle Push-Pull cable should drive to the
fully retracted position.)
F) Do not connect the ball joint to the throt-
tle lever at this time.
Figure 5-24: Display LED Function E2 Set Up
Activated
This Function further adjusts the Push-Pull cable’s
Idle position electronically. The primary purpose is
to adj ust the Push-P ull cable/Throttle Selector Lever’s
position so that any further movement will result in
an increase in engine RPM. (No Dead-band)
The available Values for this Function are 00.0 to
20.0 %.
The Def ault Va lu e is 00.0 %. This value will always be
10% or more below E3 Throttle Maximum.
T o determine a nd change the V alue (Refer to Sections
5-2 and 5-3, page 5-5):
A) Ensure that the Throttle push-pull cable is con-
nected to the Throttle lever.
B) Scroll to Function Code E2 .
C) Activate Set Up Mode.
D) Scroll Up until the engine RPM begins to
increase above Idle.
E) Scroll Down until Idle RPM is reached.
F) Store the Value to memory.
Figure 5-25: Throttle Push-Pull Cable Full
Throttle Position
This Function adjusts the position of the Throttle
Push-Pull cable at Full Throttle.
The available Values for this Function are 10.0 % to
100.0 %.
The Default Value is 33.0 %. This value will always
be 10% or more above E2 Throttle Minimum.
The Value entered is the percentage of the servo’s
maximum travel of 3.00 inches (76,2mm).
Example: A Value of 50.0 , will equal 1.50 inches
(38,1mm) of travel from Idle to Full Throttle.
To determine and change the Value (Refer to Sec-
tions 5-2 and 5-3, page 5-5):
A) Take command at a Remote Station.
Function Code is Blinking
T
hrottle Selector Lever is not at
Full Throttle and against the
Full Throttle Stop
FUNCTION CODE NEED TO BE ADJUSTED
E3
Processor Push-Pull Cable
Fully Retracted
12267
Full Throttle Stop
T
hrottle Selector Lever at
F
ull Throttle and Laying Firmly
against the Full Throttle Stop
F
UNCTION CODE DOES NOT NEED TO BE ADJUSTE
D
E3
Processor Push-Pull Cable
Fully Retracted
12267
Full Throttle Stop
