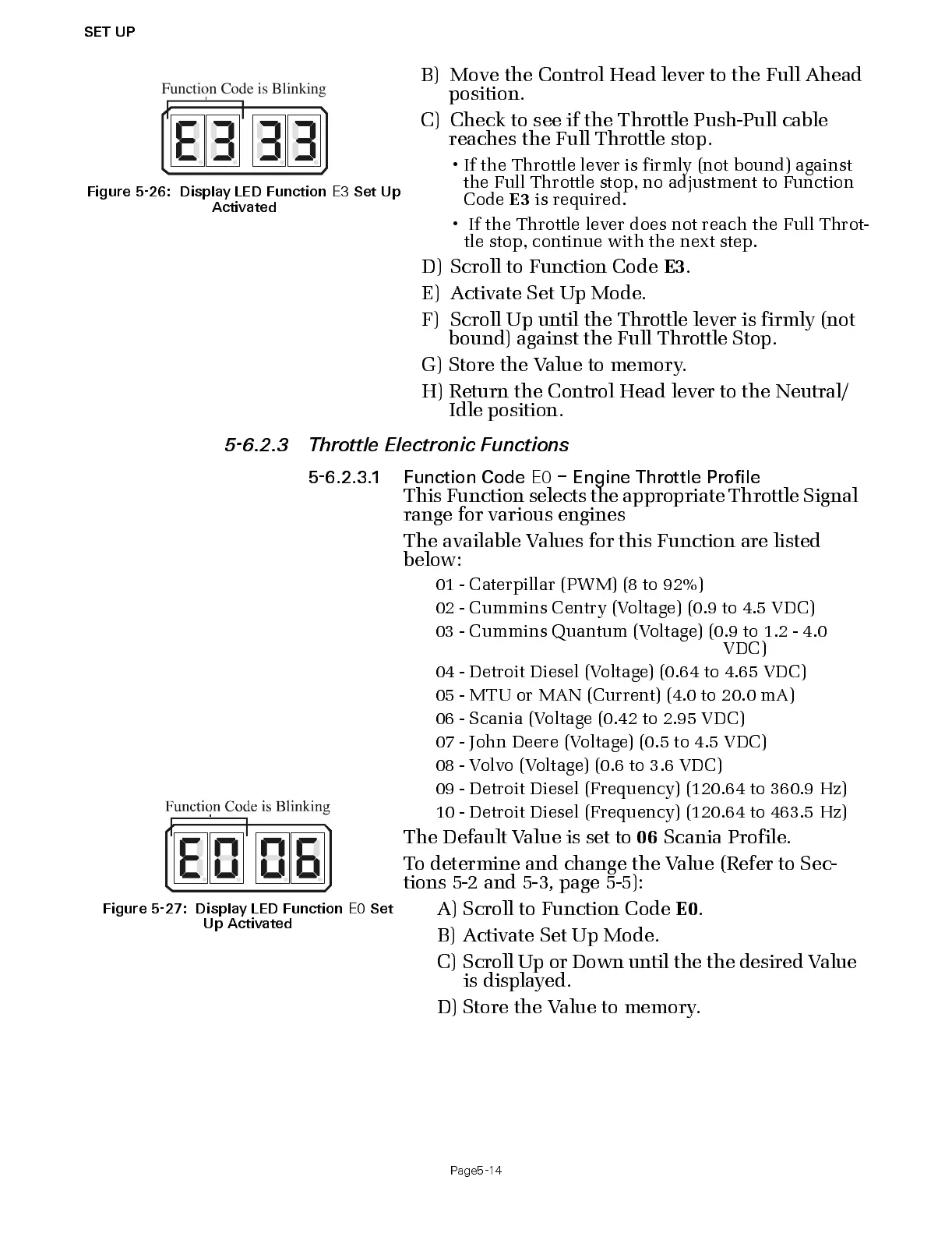

SET UP
Page5-14
5-6.2.3
Throttle Electronic Functions
5-6.2.3.1 Function Code
E0
– Engine Throttle Profile
Figure 5-26: Display LED Function
E3
Set Up
Activated
B) Move t he Control Head lever to the Full Ahead
position.
C) Check to see if the Throttle Push-Pull cable
reaches the Full Throttle stop.
• If the Throttle lever is firmly (not bound) ag ainst
the Full Throttle stop, no adjustment to Function
Code
E3
is required.
• If the Throttle lever does not reach the Full Throt-
tle stop, continue with the next step.
D) Scroll to Function Code
E3
.
E) Activate Set Up Mode.
F) Scroll U p until the Throttle lever is firmly (not
bound) against the Full Throttle Stop.
G) Stor e th e Value to me mo ry.
H) Return the Control Head lever to the Neutral/
Idle position .
Figure 5-27: Display L ED Function
E0
Set
Up Act i v ated
This Functio n selects the appropriate Throttle Signal
range for various engines
The available Values for this Function are listed
below:
01 - Caterpillar (PWM) (8 to 92%)
02 - Cummins Centry (Voltage) (0.9 to 4.5 VDC)
03 - Cummins Quantum (Voltage) (0.9 to 1.2 - 4.0
VDC)
04 - Detroit Diesel (Voltage) (0.64 to 4.65 VDC)
05 - MTU or MAN (Current) (4.0 to 20.0 mA)
06 - Scania (Voltage (0.42 to 2.95 VDC)
07 - John Deere (Voltage) (0.5 to 4.5 VDC)
08 - Volvo (Voltage) (0.6 to 3.6 VDC)
09 - Detroit Diesel (Frequency) (12 0.64 to 360.9 Hz)
10 - Detroit Diesel (Frequency) (120.64 to 463.5 Hz)
The Default Value is set to
06
Scania Profile.
To determine and change the Value (Refer to Sec-
tions 5-2 and 5-3, page 5-5):
A) Scroll to Function Code
E0
.
B) Acti v ate Se t Up Mode.
C) Scroll Up or Dow n until the the desi red Valu e
is displayed.
D) Store t he Value to memory.
Function Code is Blinking
To Next Page
