SET UP
Page5-23

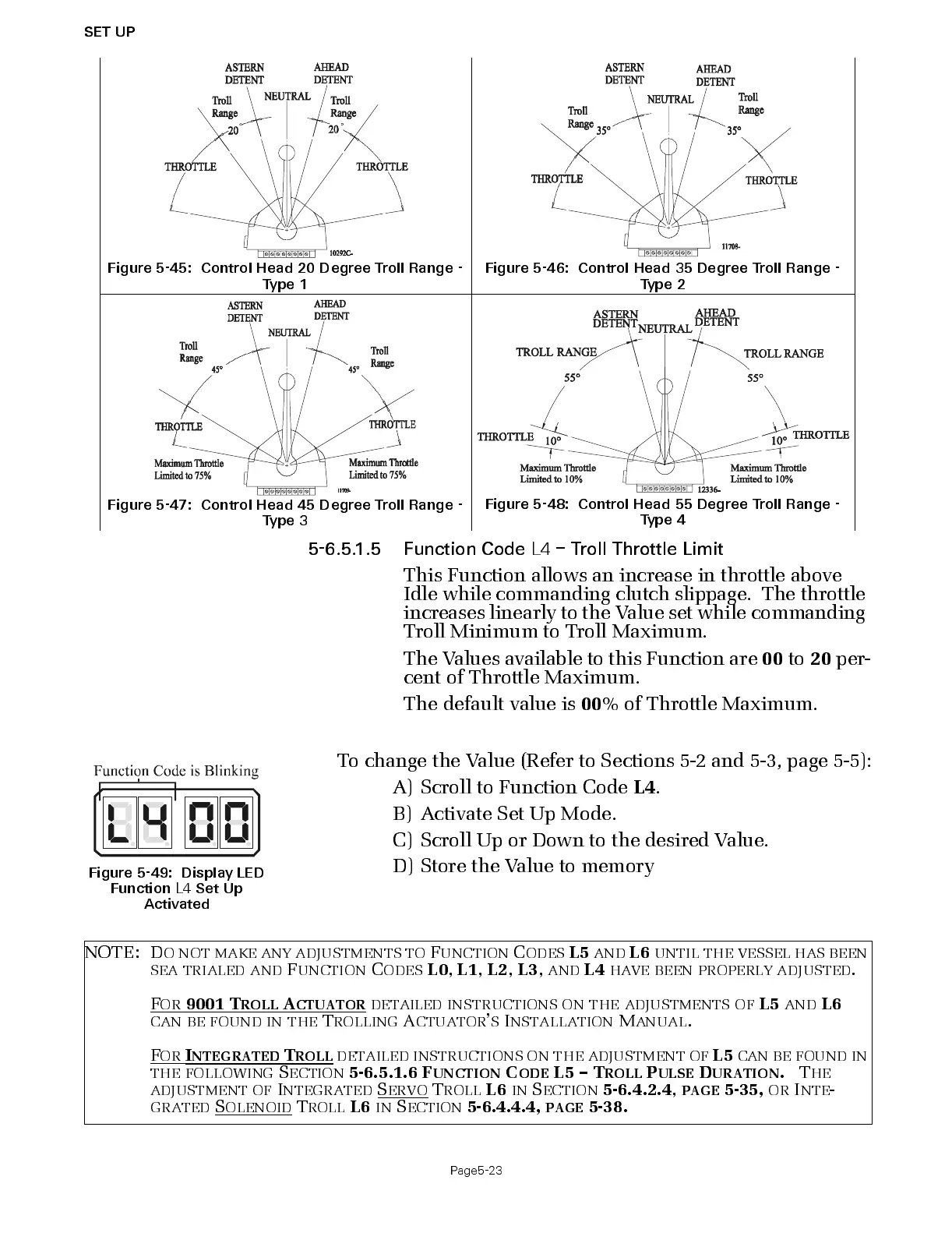

5-6.5.1.5 Function Code L4 – Troll Throttle Limit
This Function allows an increase in throttle above
I dle whi le co mm a nding clut ch slippage. The thrott le
incre ases linea rly to the Valu e set w hile comm anding
Troll Minimum to Troll Maximum.
The Values avai la ble t o this Functi on a re 00 to 20 per-
cent of Throttle Maximum.
The default val ue is 00 % of Throttle Maximum.
Figure 5-45: Control Head 20 Degree Troll Range -
Type 1
Figure 5-46: Control Head 35 Degree Troll Range -
Type 2
Figure 5-47: Control Head 45 Degree Troll Range -
Type 3
Figure 5-48: Control Head 55 Degree Troll Range -
Type 4
Figure 5-49: Display LED
Function L4 Set Up
Activated
To change the Value (Refer to Sections 5-2 and 5-3, page 5-5):
A) Scroll to Function Code L4 .
B) Activate Set Up Mode.
C) Scroll Up or Down to the desired Value.
D) Store the Value to memory
NOTE: D O NOT MAKE ANY ADJUSTMENTS TO F UNCTION C ODES L5 AND L6 UNTIL THE VESSEL HAS BEEN
SEA TRIALED AND F UNCTION C ODES L0 , L1 , L2 , L3 , AND L4 HAVE BEEN PROPERLY ADJUSTED .
F
OR 9001 T ROLL A CTUATOR DETAILED INSTRUCTIONS ON THE ADJUSTMENT S OF L5 AND L6
CAN BE FOUND IN THE T ROLLING A CTUATOR ’ S I NSTALLATION M ANUAL .
F
OR I NTEGRATED T ROLL DETAILED INSTR UCTIONS ON THE ADJUSTMENT OF L5 CAN BE FOUND IN
THE FOLLOWING S ECTION 5-6.5.1.6 F UNCTION C ODE L5 – T ROLL P ULSE D URATION . T HE
ADJUSTMENT OF I NTEGRATED S ERVO T ROLL L6 IN S ECTION 5-6.4.2.4 , PAGE 5-35, OR I NTE -
GRATED S OLENOID T ROLL L6 IN S ECTION 5-6.4.4.4, PAGE 5-38.
