ZiLOG Z80 User Manual

9

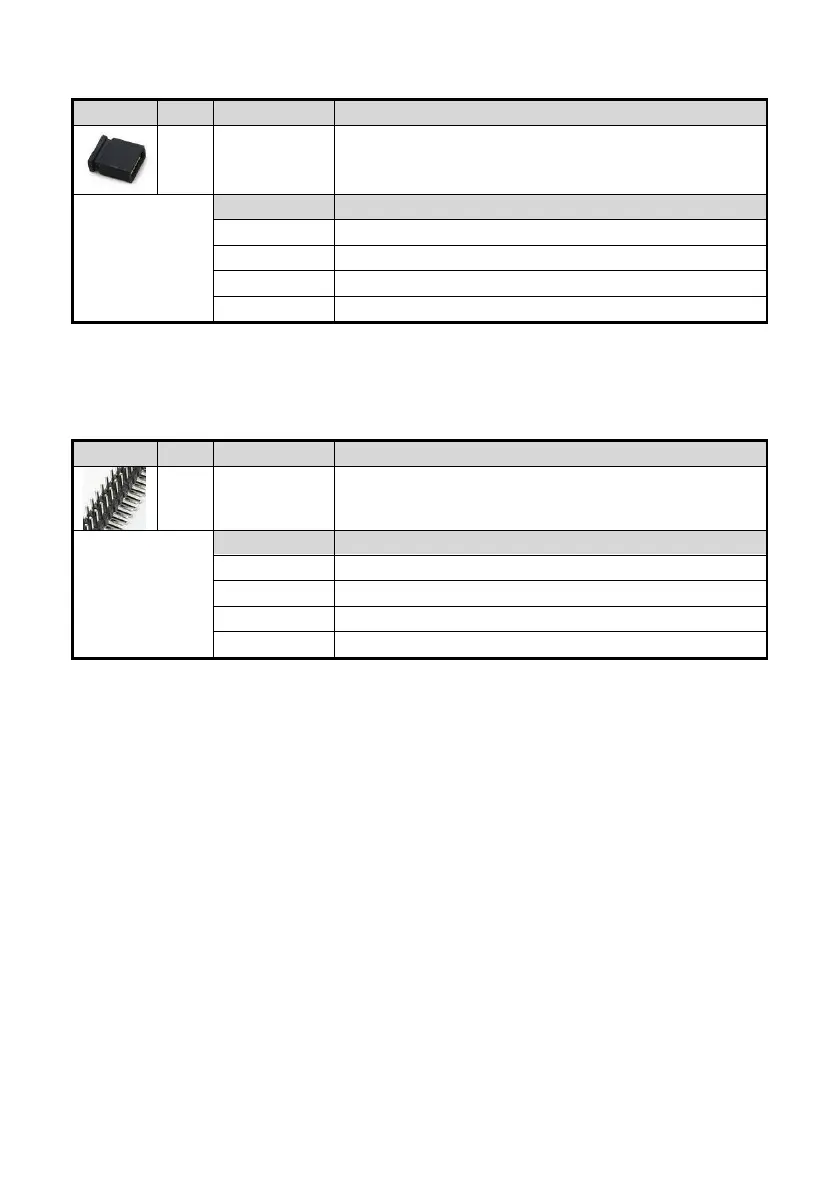

JP1 and J2
Image Qty Reference Description
2
JP1 and JP2 Jumper shuntfor pinspacing = 2.54mm
Supplier Partnumber
eBay 201261690156
Farnell 2396303
Mouser 649-68786-102LF
RS 674-2397
Theseshunts (smallsockets) connect the required pins on JP1 andJ2.
P1
Image Qty Reference Description
1
P1 Pin header, male,angled,2-row x 39-pin, 2 row(1
rowoptional)
Supplier Partnumber
eBay 200906546562(2x40 pin tobe cutto length)
Farnell 1097962 (2x40pin to be cut to length)
Mouser 571-9-103795-0(2x40 pinto becut tolength)
RS 155-743(2x40 pin tobe cutto length)
Thisconnectormateswith theRC2014 busbackplane.You can fit a single or a
double row header. The onlyreasonsfor the second rowis toprovideadditional
powersupplypins,make the modulethe same heightas the othersand to increase
stabilityof themodule.
Somepins need tobe removed, using apair of pliers, beforefitting.

ZiLOG Z80 Specifications

General

Manufacturer	ZiLOG
Introduction Year	1976
Clock Speed	2.5 MHz to 20 MHz
Data Width	8-bit
Address Width	16-bit
Instruction Set	Z80
Transistor Count	8, 500
Package	40-pin DIP
Category	Microprocessor
Memory Address Space	64 KB
Voltage Supply	5V
