8
C5

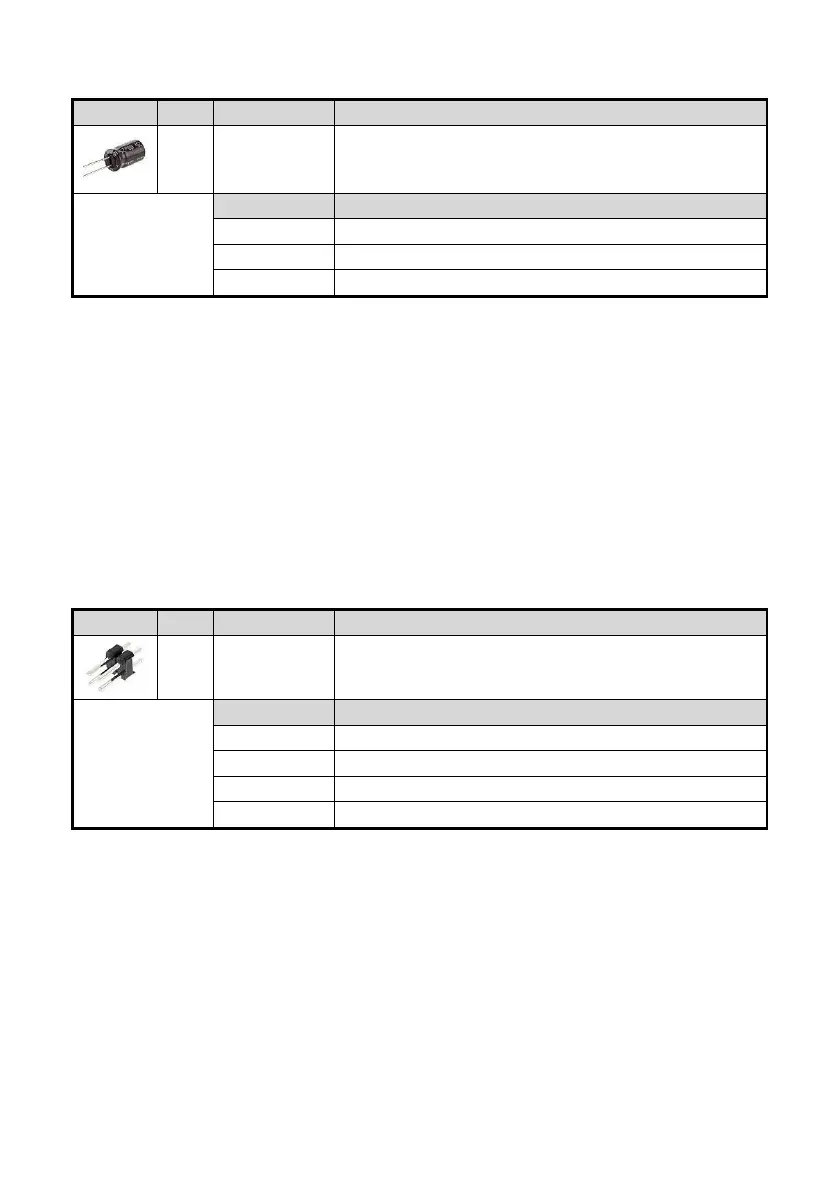

Image Qty Reference Description
1
C5 Capacitor 100uF,electrolytic,lead spacing=
2.54mm(radial) or14mm (axial)
Supplier Partnumber
Farnell 9452478 (100uF, 16V,radial)
Mouser 140-REA101M1CBK0611P(100uF, 16V,radial)
RS 711-0933 (100uF,16V, radial)
Thiscapacitorprovides suppressionof transientson thepower supply. The PIO
modulemay well beusedto powerand control external electronics,in whichcase
therecouldbe significanttransientsgenerated on thesupply lines. Where possible
supply transients should be suppressedat source, so this componentshould not be
critical.
ThePCB allowsfor a radial or axial capacitors. In order tobuilda low profile board,
the capacitorshould lay onits side. An axial capacitorwould bemost secure inthis
configuration, but thereis limited length allocated and youprobablydon’t have one!
JP1 and JP2
Image Qty Reference Description
1
JP1 and JP2 Pin header, male,2 rowsx 2 pins, straight
Supplier Partnumber
eBay 200906546562(2x40 pin tobe cutto length)
Farnell 2356151 (2x40pin to be cut to length)
Mouser 710-61308021121(2x40 pin tobe cut tolength)
RS 155-721(2x40 pin tobe cutto length)
Thispair of jumpers allow the interruptdaisy chain signals tobe connectedto the
RC2014bus signalUSER2 (pin 38) and USER 3 (pin39). To makeuse ofthis feature
you must use abackplanethatis specificallydesigned toprovidethe necessary daisy
chain,such as BackplaneSC107. The currentofficial RC2014 backplanesdo not
supportthis feature.
Alternativelythe signals IEI andIEO canbe foundon connectorP2 on the backedge
of theboard.Dupont wires canbe used todaisychain thesesignalsto other
modules.

ZiLOG Z80 Specifications

General

Manufacturer	ZiLOG
Introduction Year	1976
Clock Speed	2.5 MHz to 20 MHz
Data Width	8-bit
Address Width	16-bit
Instruction Set	Z80
Transistor Count	8, 500
Package	40-pin DIP
Category	Microprocessor
Memory Address Space	64 KB
Voltage Supply	5V
