17
Step 3

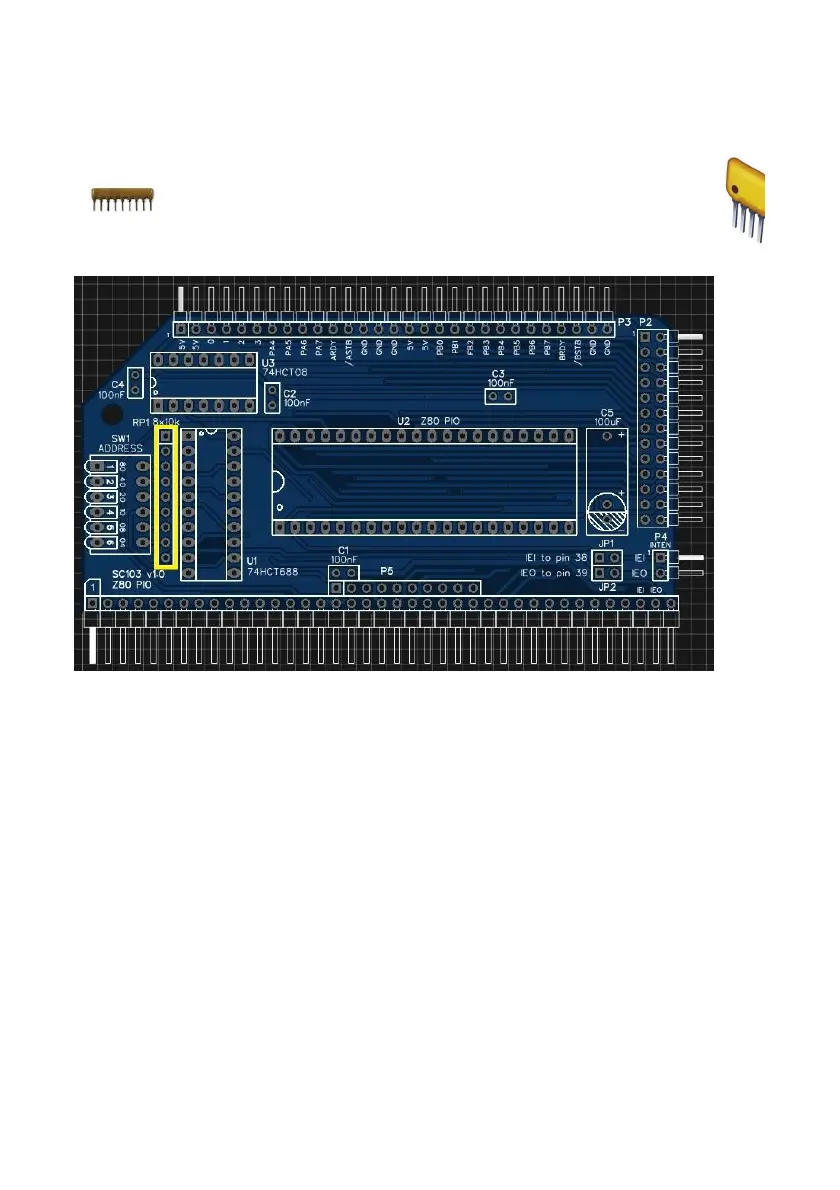

Fit andsolderresistor packRP1.
Thismust befitted the correctway round.The component
should
have
pin
1
marked
with
a
dot,
as
illustrated
right.
