Zip Aquapoint III AP3/10 User Manual

4
INSTALLATION INSTRUCTIONS & USER MANUAL
210005 V2.00 AUG 2017 - ZIP APIII/5-15(OB)
TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
Zip Aquapoint III
MODEL
AP3/05/0B AP3/05 AP3/10/OB AP3/10 AP3/15/OB AP3/15
Installation
Overbasin Underbasin Overbasin Underbasin Overbasin Underbasin
Declared load profile
XXS XXS XXS XXS XXS XXS
Energy efficiency class
(1)
A A A A A A
Energy efficiency (ηwh)
(1)
% 35.9 35.2 36.3 35.2 36.1 35.3
Annual electricity
consumption
(1)
kWh 514 525 508 524 510 523
Thermostat temperature
setting
e
(2)
Specific precautions See installation and operating instructions
“Smart” value
0
Rated volume
l
6.2 6.6 9.8 9.9 14.8
14.9
Weight empty / full kg 6.5/13.5 8.5/18.5 9.8/24.7
Power rating
W
2,000
Nominal supply voltage
V AC
230
Protection class IP24
Heat up time (10°C to
65°C)
mins 11 20 29
Packaging dimensions
mm
300x300x440 300x400x530 350x400x540
Maximum working
pressure
MPa 0.55
Water connections 1/2” BSP
(1) EU Regulation 812/2013;EN 50440
(2) Temperature control ‘e’ setting corresponds to approx. 41°C for models AP3/05/0B, AP3/05 or 35°C for models AP3/10/OB, AP3/10, AP3/15/OB, AP3/15.

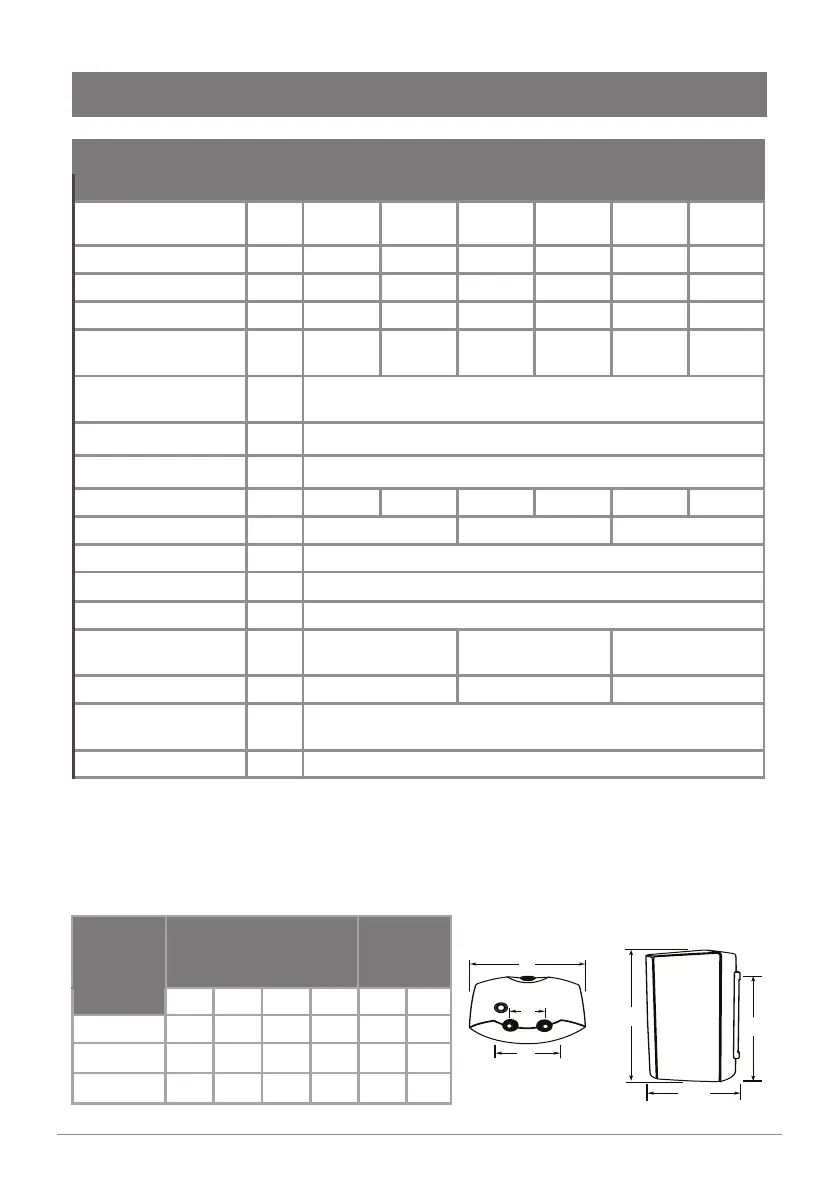

TECHNICAL DATA
Model
Dimensions
(mm)
Fixing
centres
(mm)
A B C D E F
AP3/05(OB) 376 256 260 100 252 140
AP3/10 (OB) 480 350 265 100 378 140
AP3/15 (OB) 480 350 310 100 378 140
D
B
F
E
C
A
Dimensions
