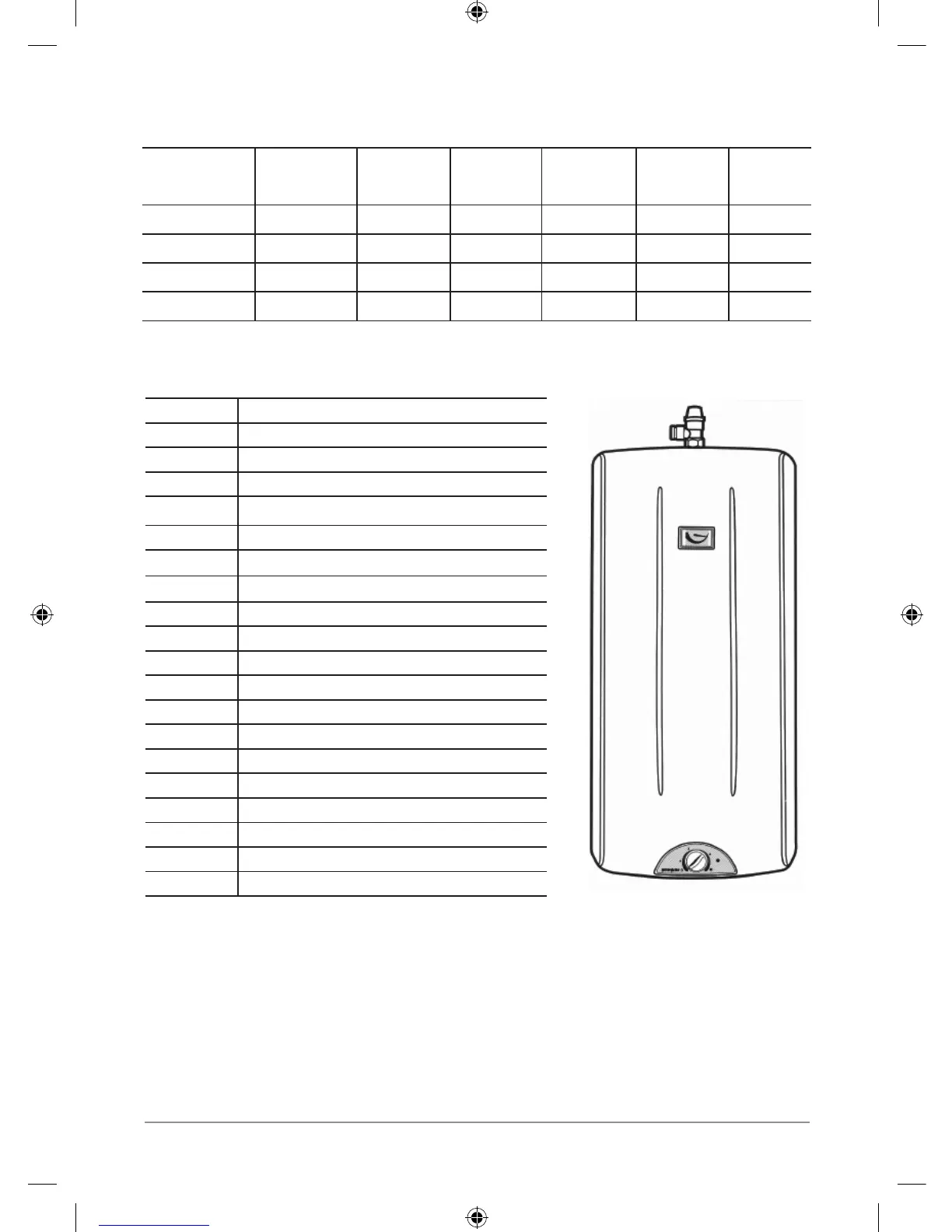

AP3/30_AP3/50_AP3/80_AP3/100_Instructions. V1.01 Page 5 August / 2012
Dimensions
Aquapoint Capacity
(litres)
Width
(mm)
Height
(mm)
Depth
(mm)
Weight
Empty (kg)
Weight
Full (kg)
AP3/30 30 420 525 445 19 49
AP3/50 50 420 690 445 24 74
AP3/80 80 420 950 445 28 108
AP3/100 100 420 1125 445 31 131
Part No. Description
AQ0318 600W element
AQ0301 1000W element
AQ0302 Gasket
AQ0303 Neon lens
AQ0319 Thermostat
AQ0305 Resettable cut-out
AQ0320 Sacricialanodefor30litre
AQ0306 Sacricialanodefor50litre
AQ0307 Sacricialanodefor80&100litre
AQ0308 Neon light indicator
AQ0311 Temperature indicator
AQ0312 Elementangefor50,80&100litres
AQ0322 Elementangefor30litres
AQ0313 Screw holder
AQ0314 Anode gasket
AQ0315 Insulating bush
AQ0317 Temperature&pressurereliefvalve
AQ0309 Control knob
AQ0316 Control panel
Spare Parts
Components supplied with the unit for site tting
• ColdInletassemblycomprisingpressurereducingvalvewithintegrallinestrainerand
expansion relief valve with check valve, expansion vessel take off and balanced cold
water take off. (See Fig.1)
• Expansionvesselandwallxingbracket.
• ZipAquapointhotwatercylinderwalllocatingbracket.
• Tundish.
