Hydro Tap Installation and Operating Instructions - 89026UK - June 2009 Page 23 of 24

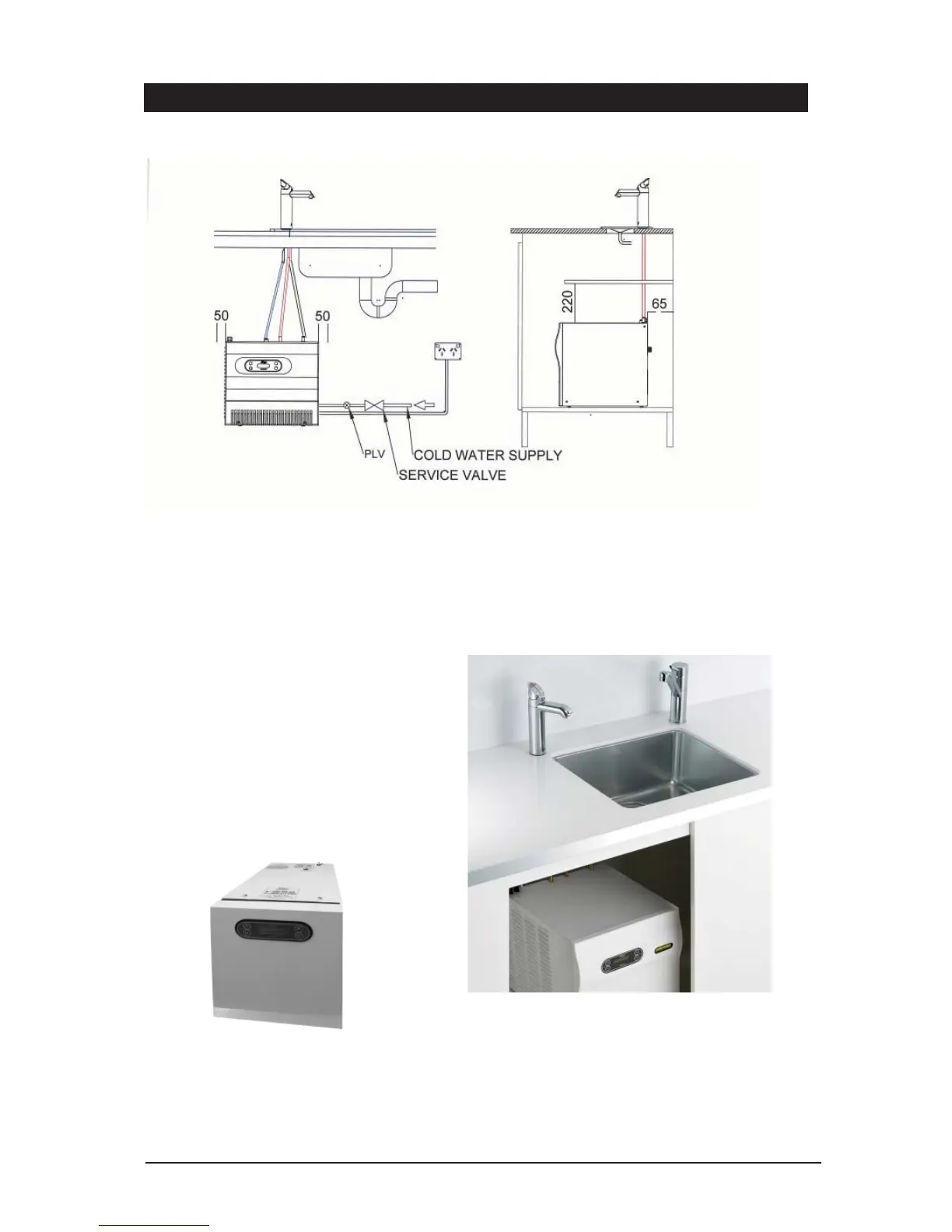

Typical undersink layout
Domestic Compact model 437677UK shown
NOTE: The pressure limiting valve (supplied) must be fitted between the external service valve and the appliance
Domestic Compact model 437677UK installationTypical Boiling Only / Boiling Ambient unit
