Installing the appliance
1. Thoroughly ush the water supply pipes
before installation to remove any water
borne debris.

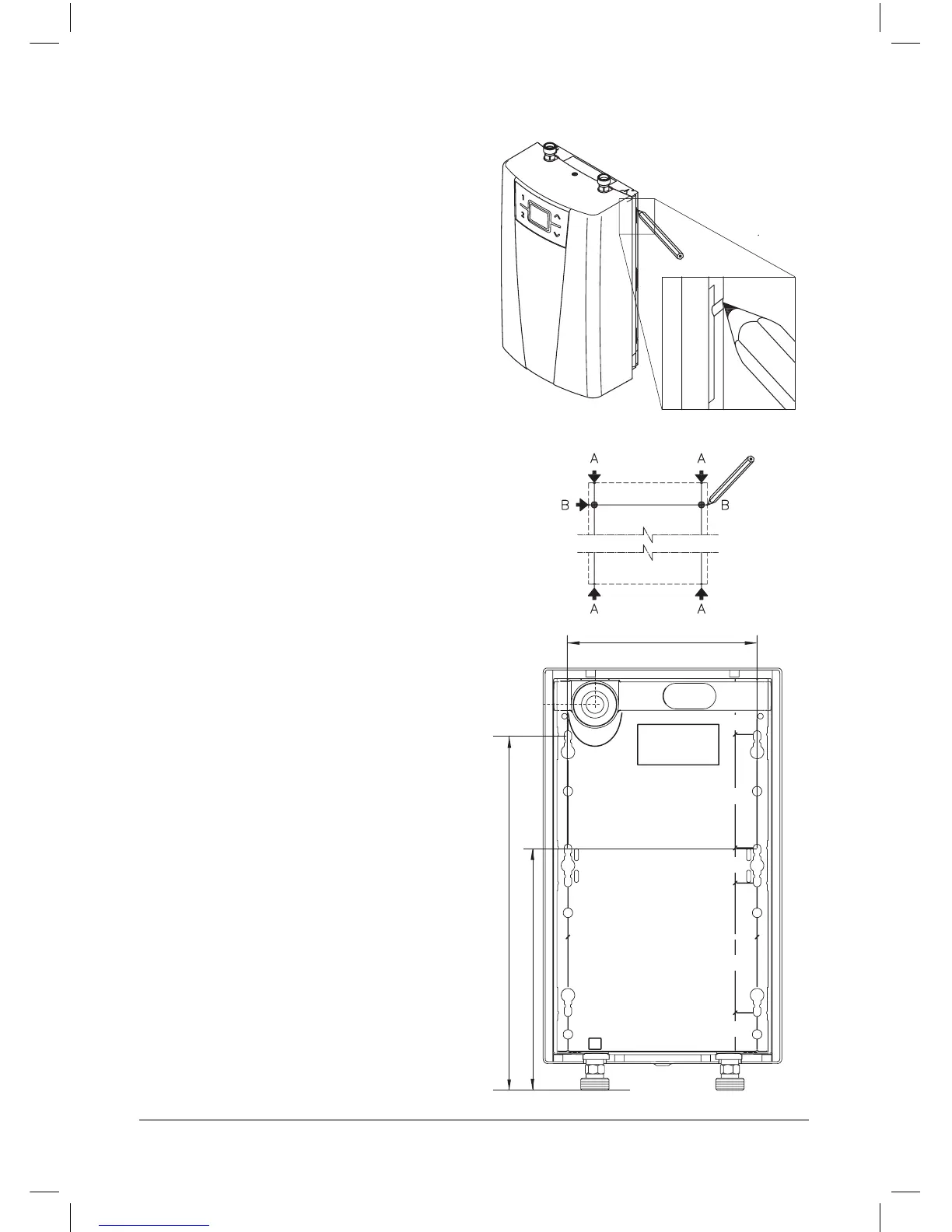

2. Hold the appliance on the wall and mark
the drill lines at top and bottom, left and
right, corresponding to the small notches at
the edge of the front cover (see Fig 1).
3. Join the top and bottom marks vertically
(A-A) and the left and right marks
horizontally (B-B). The intersections of
these lines are the drill points (see Fig 2).
4. Drill the holes using a 6mm drill then
insert the dowels and screws provided
leaving the screws protruding 5mm from
the wall.
5. Hang the appliance with the screws
engaging in the key-hole slots in the
back plate until it clicks into place
(see Fig 3).
6. Attach the water connecting pipes to the
appliance water connections using ½”
seals.
7. Ensure that all air is eliminated from the
water heater by opening and closing the
hot water tap until all air has been
eliminated from the water heater and no
more air emerges.
