INSTALLATION
Installing the appliance

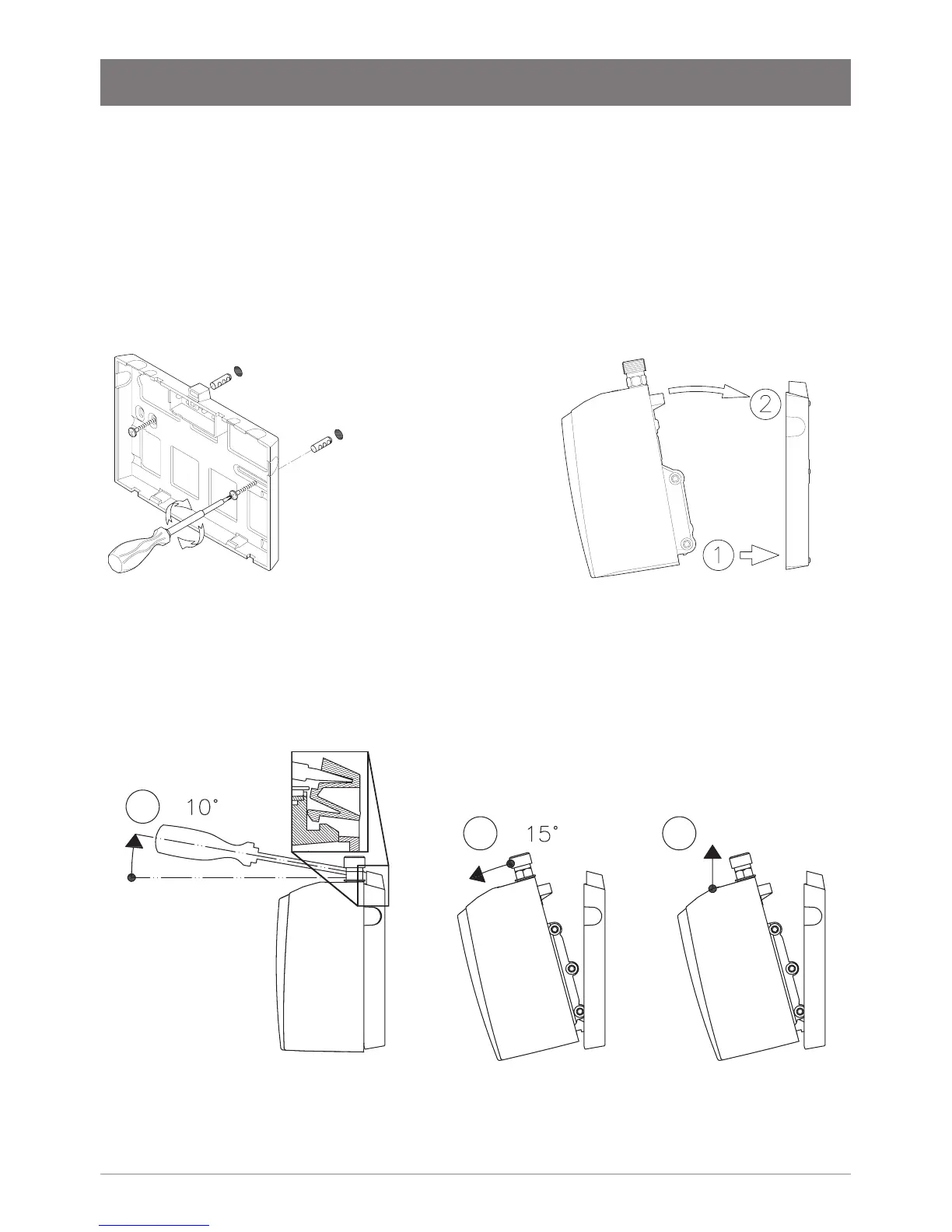

• Secure the wall bracket to the wall with screws and wall plugs supplied (Fig. 1).
• Place the appliance on the wall bracket and snap into position (Fig. 2).
Note This appliance is intended for under-basin installation with the water connections pointing
vertically upwards.
Fig. 2Fig. 1
Drill size Ø 7mm.
Use the mounting bracket as
a guide for fixing marks.
Drilling width variable:
100mm minimum to
145mm maximum.
To remove the appliance from the wall bracket
Put the flat screwdriver tip into the interlock between the water connections until it stops and lift it
slightly upwards (Fig. A), tilt the appliance forward by max. 15° (Fig. B) and remove it upwards (Fig. C).
A
B
C
