INSTALLATION INSTRUCTIONS & USER MANUAL
210011 V2.02 MAY 2018 -ZIP ES
TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
INSTALLATION
Seal
Seal
Hot Water
Connection
(outlet)
Filter
Cold Water
Connection
(inlet)
Fig. 3

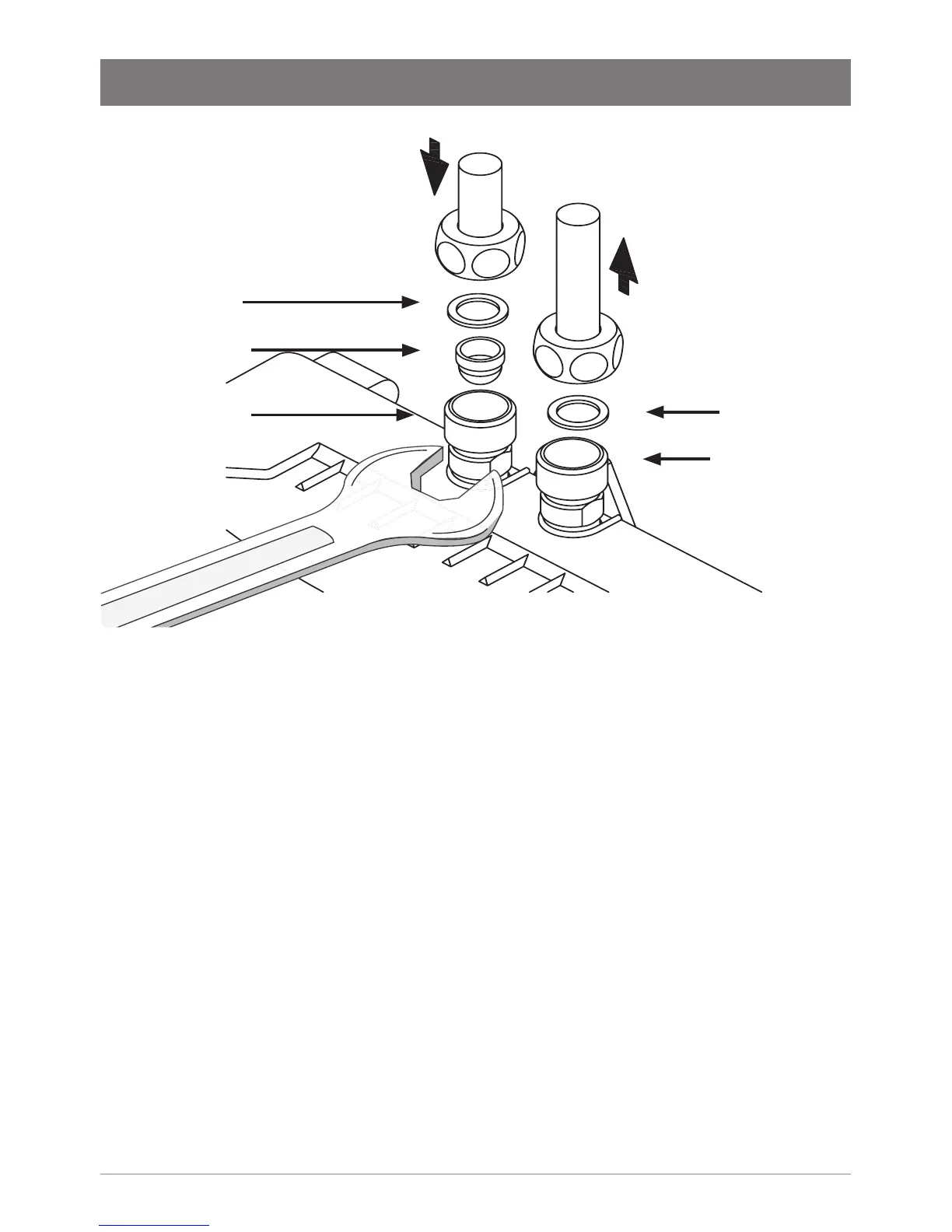

Plumbing connection (Fig. 3)
• The cold water inlet (blue) and hot water outlet (red) are marked on the rating plate. Connect
the appropriate pipes from the tap to the water inlet and outlet accordingly. Avoid exerting any
mechanical pressure on the appliance by applying a 13mm spanner on the flats of the inlet and
outlet connections when tightening the pipe connectors (Fig.3).
• When supplying mixer taps a non-return valve must be fitted to the hot water outlet and not to
the cold water inlet (Fig. 5).
• A flow control valve may be required on the cold supply to the mixer taps to balance the flow
(Fig. 5).
• Thoroughly flush the water supply pipes before connection to remove any water borne debris.
• Once the water connections have been made, check for any leaks and rectify as necessary.
• In order to obtain an optimum water jet at low flow rates, always screw the aerator insert
supplied with the unit onto the tap outlet. This insert fits commercially available sleeves with
an M22 or M24 thread.
