127899 Rev. C
14
ZIPP I E ZM-310

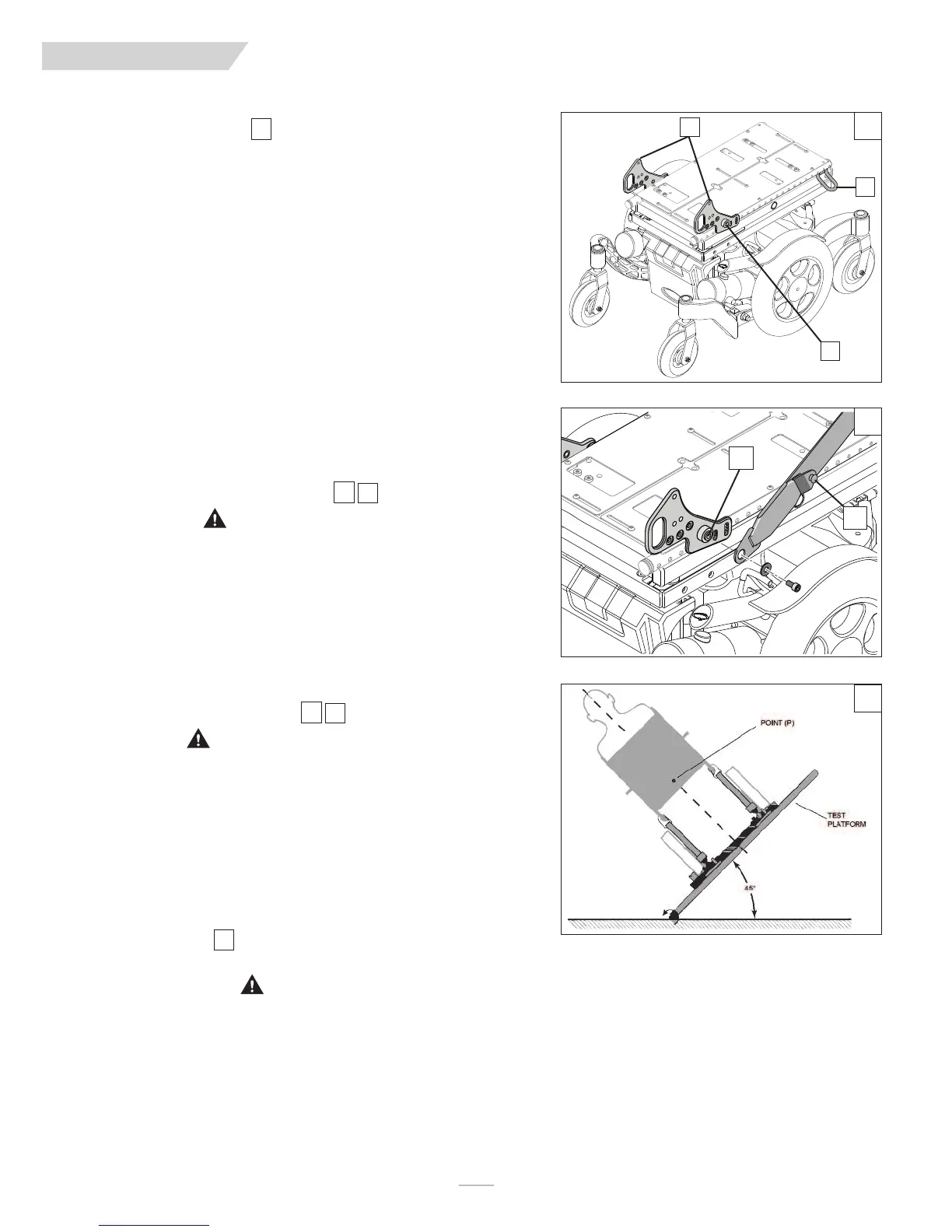

SECUREMENT POINTS
Rear securement points(A), front securement points(B), Pelvic Belt
Securement point(C)
SECURING THE WHEELCHAIR
This wheelchair is to be used only with Wheelchair Tie-down and Occupant
Restraint Systems (WTORS) that have been installed in accordance with the
manufacturer’s instructions and SAE J2249.
NOTE–
A copy of SAE J2249 Wheelchair Tie-down and Occupant Restraint
Systems (WTORS) for use in Motor Vehicles can be obtained from:
SAE International
400 Commonwealth Drive.
Warrendale, PA. 15096-0001
(877) 606-7232 or (724) 776-4970
Attach WTORS to the tie-down brackets in accordance with the manufactur-
er’s instructions and SAE j2249.
SECURING THE OCCUPANT:
WHEELCHAIR-ANCHORED BELTS
WARNING
Only use a pelvic belt system that meets the requirements of ANSI-Resna
WC Vol 1 Section 19 and SAE J2249, and has been specified to work in con-
junction with the Zippie ZM-310 transit system.
1. Installation
a. Install the pelvic belt (D) onto the pelvic belt securement point
anchored to the seating frame of the Zippie ZM-310. Using a 10mm
Hex key, torque the screw to 144in-lbs securing the pelvic belt to the
mounting anchor (E).
b. Repeat step 1 for the opposite side.
VEHICLE-ANCHORED BELTS
WARNING
This wheelchair has an overall rating of “A” with regard to accommodating
the use and fit of vehicle-anchored belts. This rating is scored as follows: A =
Excellent, B = Good, C = Fair, D= poor.
The test for Lateral Stability Displacement for Point (P) is shown in the figure
at right. The average test result for point (P) is:
• Zippie ZM-310 - 0.547inches (13.9mm)
NOTE–
Figure 5 shows the rear view of the wheelchair and human surrogate
secured on test platform and tilted to 45°.
SEATING SYSTEM
WARNING
This wheelchair has been tested for seating in a motor vehicle with the facto-
ry installed seating system only. Ensure that the factory installed seating sys-
tem is secured to the wheelchair frame before operation. Refer to the seat-
ing system owner’s manual for further information.
3
4
3
5
4
5
VII. WARNINGS: COMPONENTS & OPTIONS
3
4
5
D
E
B
A
C
