Zippie ZM-310 - N. ELEVATING LEGREST ADJUSTMENT(Optional); O. CENTER MOUNT HANGER ADJUSTMENT

127899 Rev. C
32
ZIPP I E ZM-310ZIPP I E ZM-310

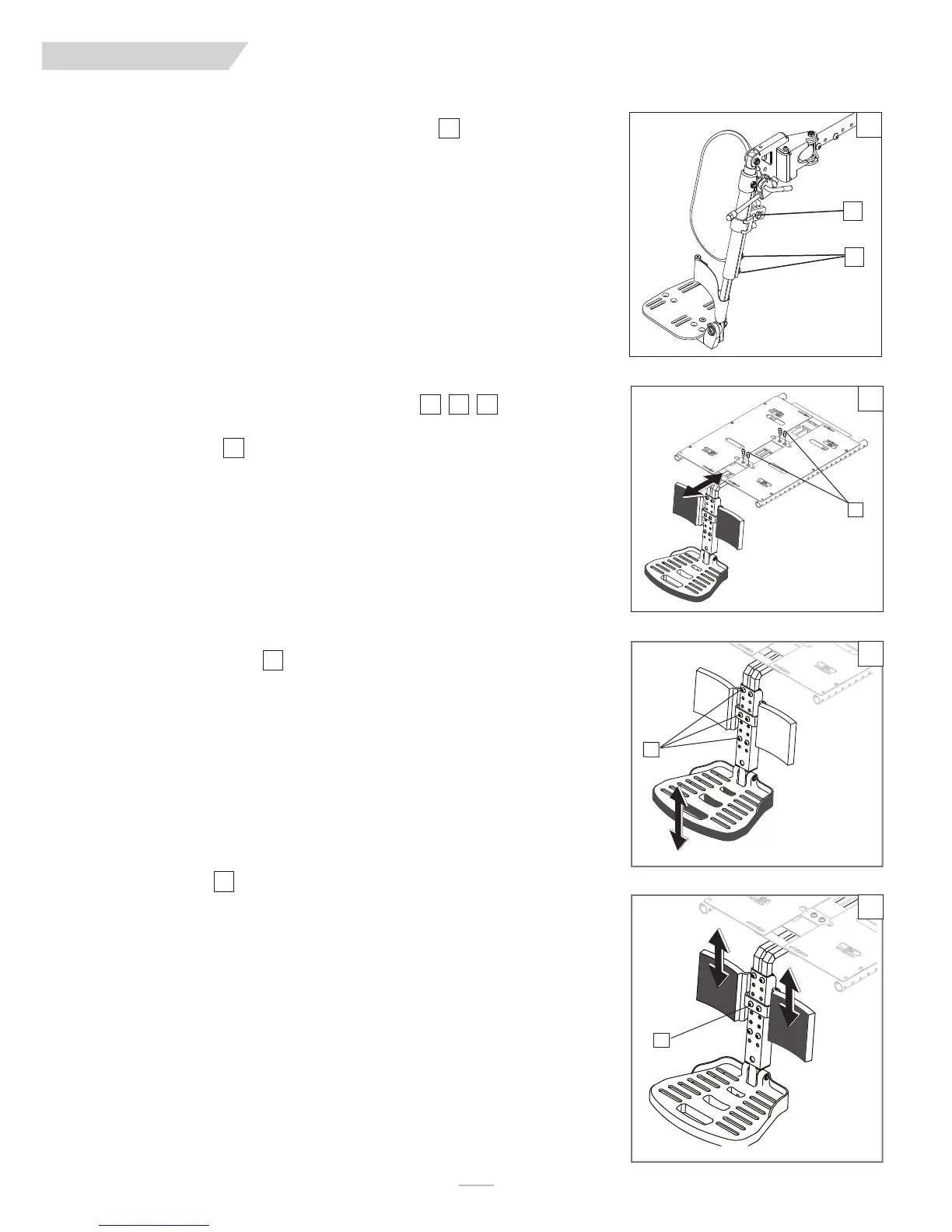

XI. DEALER SERVICE & ADJUSTMENT
N. ELEVATING LEGREST ADJUSTMENT
(Optional)
1. Footplate Height Adjustment
a. To raise footrest, loosen the two bolts(A) that hold the extension tube and footplate
in place.
b
. Adjust the footplate up or down for best adjustment, and tighten the hardware(A).
2. Calf pad Adjustment
a. Remove the securing screw (B).
b. Move Calf Pads to desired height.
c. Re-tighten the screws (B) through adjusted hole.
O. CENTER MOUNT HANGER ADJUSTMENT
(ASAP Seating only)
1. Removing the assembly
a. Remove the four screws (C) and slide the footrest assembly out of the receiver.
2. Footplate Height Adjustment
a. Remove the six securing screws (D).
b. Move the footplate up or down to the desired height.
c. Re-install screws (D) through adjusted holes and tighten the hardware.
3. Calf pad Adjustment
a. Remove the two securing screws (E).
b. Move Calf Pads to desired height.
c. Re-install screws (E) through adjusted holes.
706968
68
69
70
67
69
70
D
E
68
C
67
A
B
