ZIV F2MUX - Intf1 Interface Connection; Multimode Optical Interface (P2 Position)

F2MUX
FAMILY OF CONVERTER DEVICES TYPE F2MUX 16/28
USER GUIDE - Rev. V00 (June 2021)
2.2 INTF1 INTERFACE CONNECTION
2.2.1 Multimode optical interface (P2 position)
F2MUX.1# versions include, in the P2 position of INTF1, two ST female multimode optical
connectors, the use of which is indicated in FIGURE 5.
The operating mode is configured by internal settings (see FIGURE 13).
The use of the C37.94 standard with frame timeslots is set at the factory. The frame itself
contains information about the number of timeslots used.

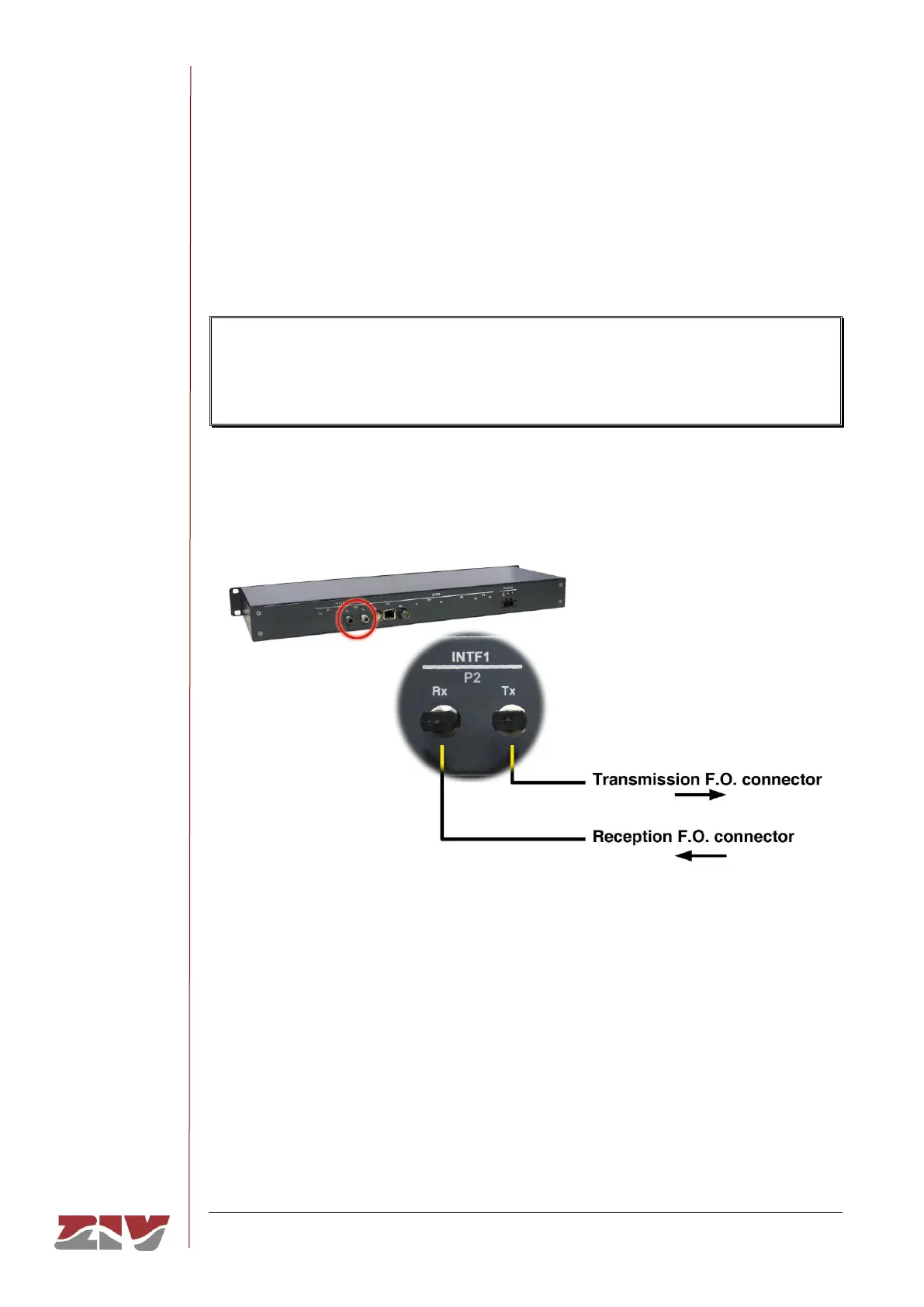

FIGURE 5 Multimode (ST female) optical fiber signals of INTF1 (P2 position)
