F2MUX
FAMILY OF CONVERTER DEVICES TYPE F2MUX 20/28
USER GUIDE - Rev. V00 (June 2021)
2.3.4 C37.94 multimode optical interface with ST connectors (P4 position)
F2MUX.13 and F2MUX.23 versions include, in the P4 position of INTF2, two ST female
optical connectors for optical signals according to C37.94 standard. The use of the
connector is shown in FIGURE 11.

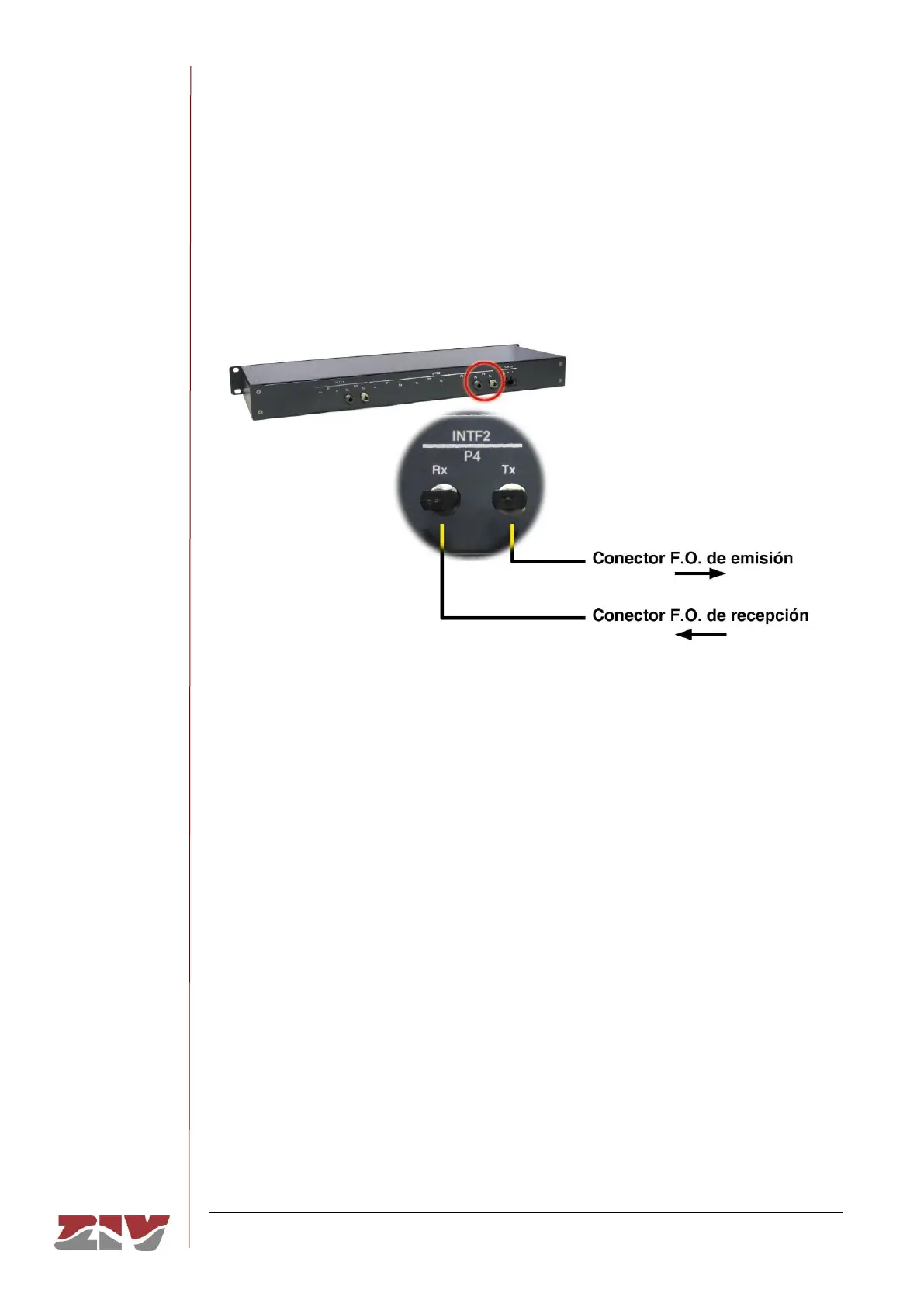

FIGURE 11 C37.94 signals, for ST connectors, of INTF2 (P4 position)
