F2MUX
FAMILY OF CONVERTER DEVICES TYPE F2MUX 18/28
USER GUIDE - Rev. V00 (June 2021)
2.3 INTF2 INTERFACE CONNECTION
2.3.1 G.703 interface at 2 Mbit/s (P1 position)
F2MUX.10 and F2MUX.20 versions include, in the P1 position of INTF2, the connectors
that corresponds to the G.703 signals at 2 Mbit/s with codirectional clock. The use of the
connectors is indicated in the following figures.
The use is configured by internal settings, see FIGURE 14, between: two unbalanced
BNC connectors (75 Ω), straps S9 and S15 in position 2-3, or a balanced RJ-45
connector (120 Ω) for twisted pair, straps S9 and S15 in position 1-2.
The use of the two unbalanced BNC connectors (75 Ω) is set at the factory.

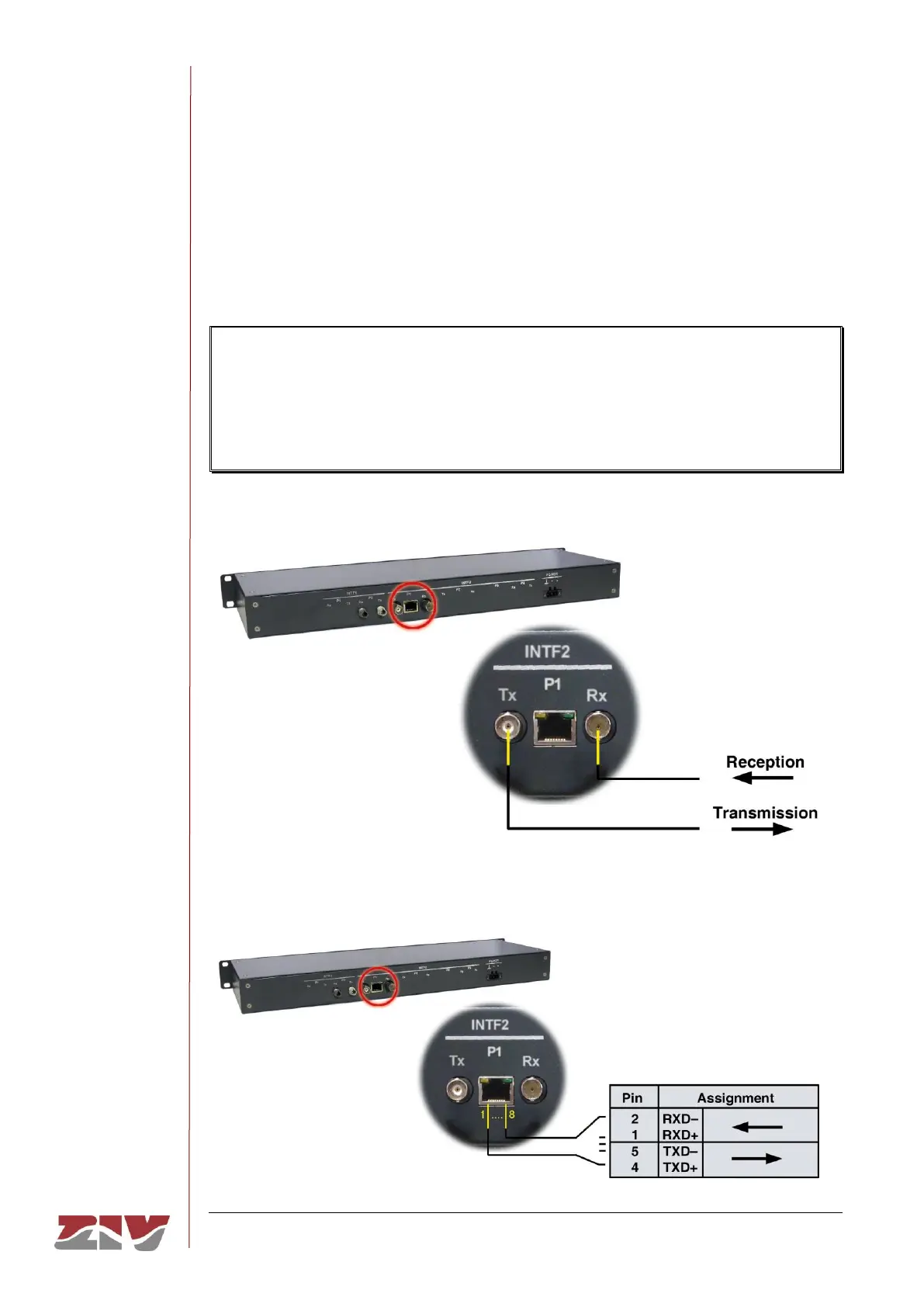

FIGURE 7 G.703 signals at 2 Mbit/s, for BNC connectors, of INTF2 (P1 position)
FIGURE 8 G.703 signals at 2 Mbit/s, for RJ-45 connector, of INTF2 (P1 position)
