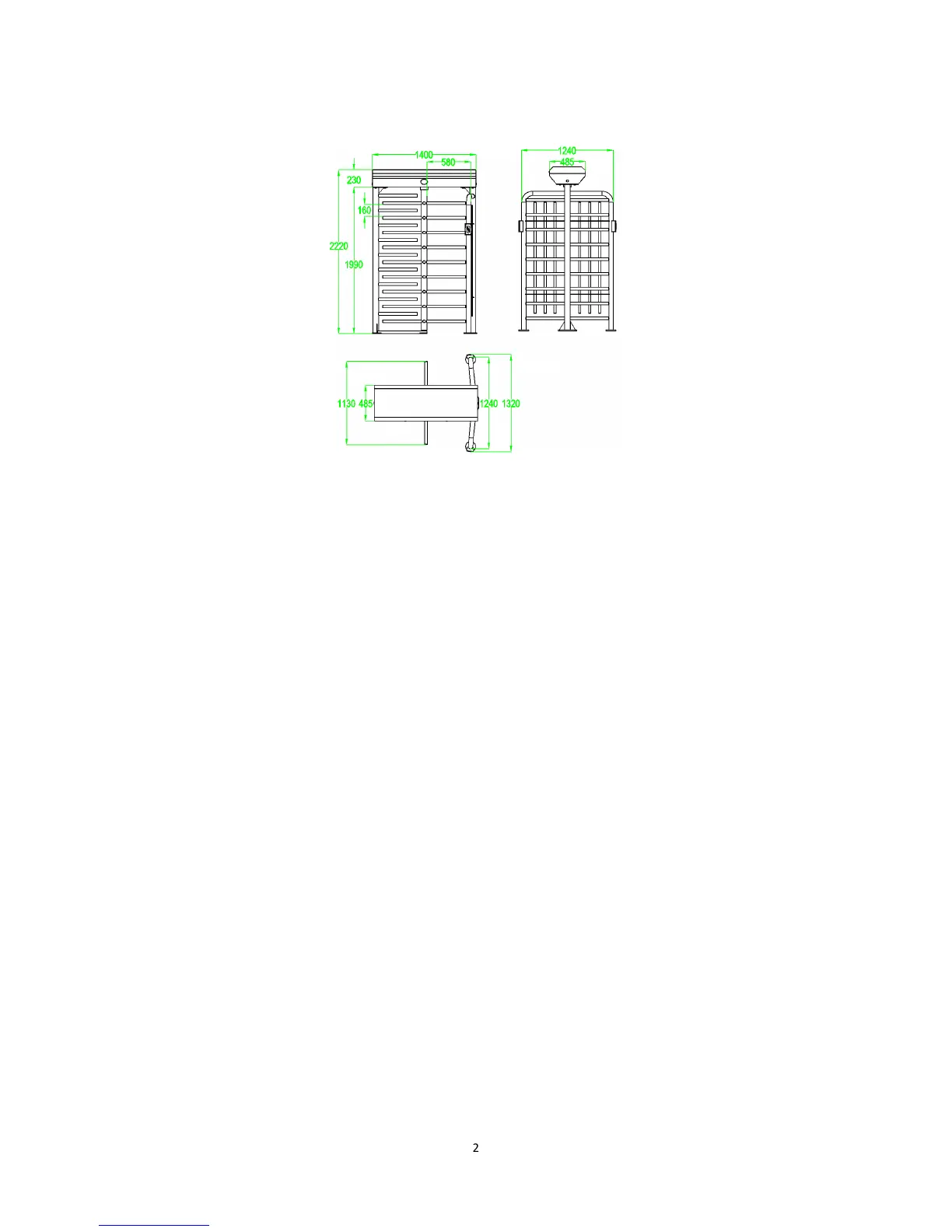

FHT2400’s appearance and dimensions are as shown in Figure 1-2B：
Figure 1-2B
1.3 Mechanical system of FHT2300&FHT2400 series
The mechanical system of the full height turnstiles includes a mainframe box and a frame. The
direction indicator, core, control panel, access controller and lock are installed in the mainframe box.
The core component mainly consists of two solenoids, a spring and a transmission mechanism. The
frame supports the entire mainframe box.
1.4 Electronic control system
The electronic control system of the full height turnstile is composed of reader, control panel,
access controller, direction indicator, horn, and transformer.
Reader: The reader reads the data from the card and sends it to the controller.
Control panel: The control panel is the system’s control center that receives signals from the
controller. After the signals have been processed by the control panel, the control panel will deliver
commands to the indicator. .
Direction indicator: This indicator displays the current status of the sign at the channel, and directs
the pedestrian to pass the channel.
