ZKTeco SpeedFace M4 Quick Start Guide

SEN
BUT
NO
COM
NC
AL-
AUX
GND
GND
COM
NO
+12V DC
GND
+12V DC
Do not Use
AL+
DC12V
+12V
GND
ZKBioAccess IVS
Click [COMM.] > [Ethernet] > [IP Address] , input the IP address and click [OK].
Note: In LAN, IP addresses of the server (PC) and the device must be in the same
network segment when connecting to ZKBioAccess IVS software.
Recommended AC adapter: 12V, 3A
To share the power with other devices, user an AC adapter with higher current ratings.
Connect the device and the system software over an Ethernet cable. An example is shown below:
Alarm
Smoke Detector
ExitButton
Door Sensor
Detector Power
Default IP address: 192.168.1.201
Subnet mask: 255.255.255.0
IP address: 192.168.1.130
Subnet mask: 255.255.255.0
Ethernet Connection

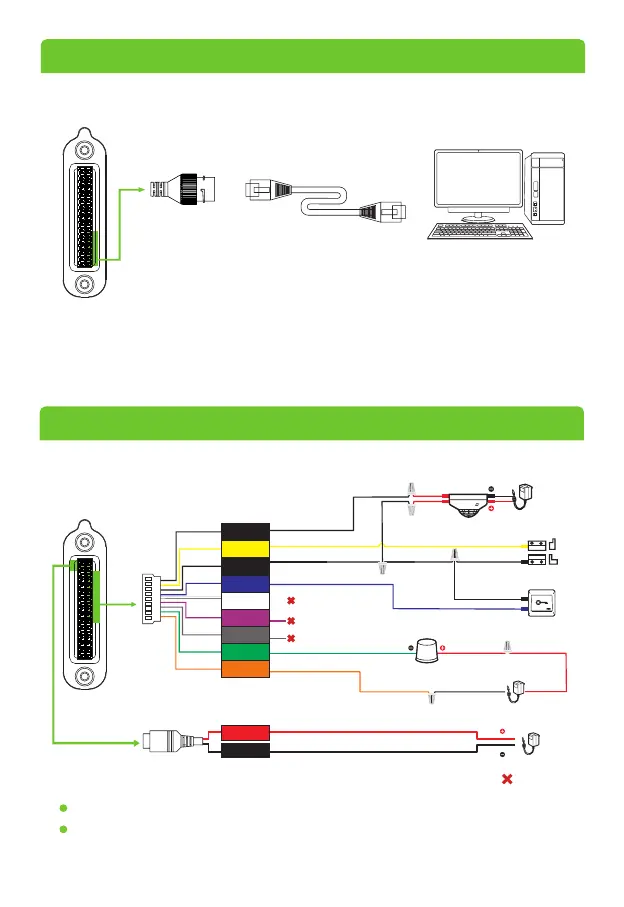

Door Sensor, Exit Button, Power & Alarm Connection
