ZKTeco SpeedFace-V3L Installation Guide

3

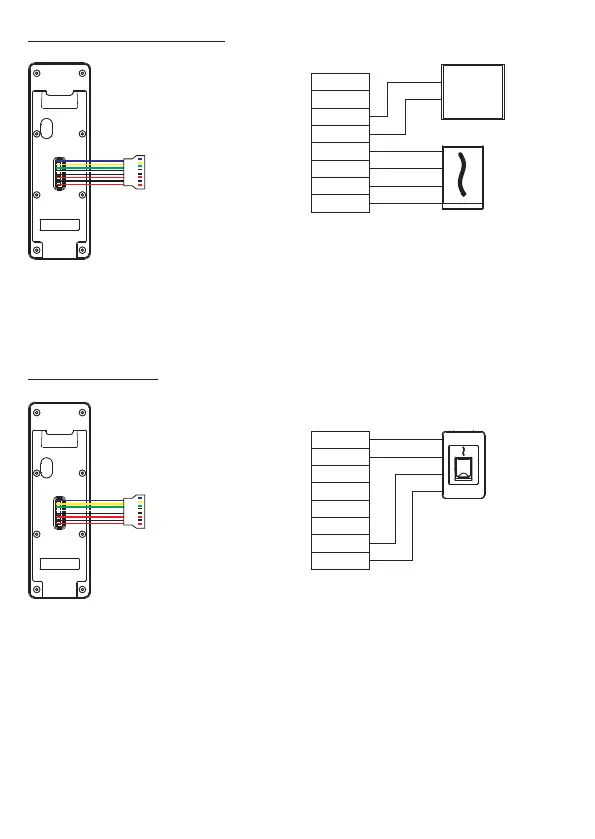

Wiegand Reader Connection
Note: 485A and 485B can be connected to the Barrier gate or the 485 Reader,
separately, but cannot be connected to the gate and reader at the same time.
RS485 Connection
WD0
WD1
485A
485B
WD0-OUT
WD1-OUT
INWD0
INWD1
GND
12V-OUT
Wiegand
Reader
+12V
GND
WD1
WD0
Access
Controller
485 Reader
+12V
GND
485+
485-
485A
485B
WD0-OUT
WD1-OUT
INWD0
INWD1
GND
12V-OUT

ZKTeco SpeedFace-V3L Specifications

General

Display type	LCD
Screen shape	Flat
Built-in display	Yes
Display diagonal	2.4 \
Display size (HxV)	240 x 320 mm
Internal memory	256 GB
Processor cores	2
Internal storage capacity	512 GB
Operating system installed	Linux
Type	Face recognition terminal
Access code reader	-
Authentication type	Biometric, Face recognition
Access chip/card reader	No
Face recognition distance	0.5 - 2 m
False Rejection Rate (FRR)	0.02 %
False Acceptance Rate (FAR)	0.01 %
International Protection (IP) code	IP65
Operating temperature (T-T)	-5 - 45 °C
Total megapixels	1 MP
RS-485 ports	1
Package weight	800 g

Weight and Dimensions

Depth	58.5 mm
Width	185 mm
Height	20 mm
Weight	300 g
