ZKTeco SpeedFace-V3L Installation Guide

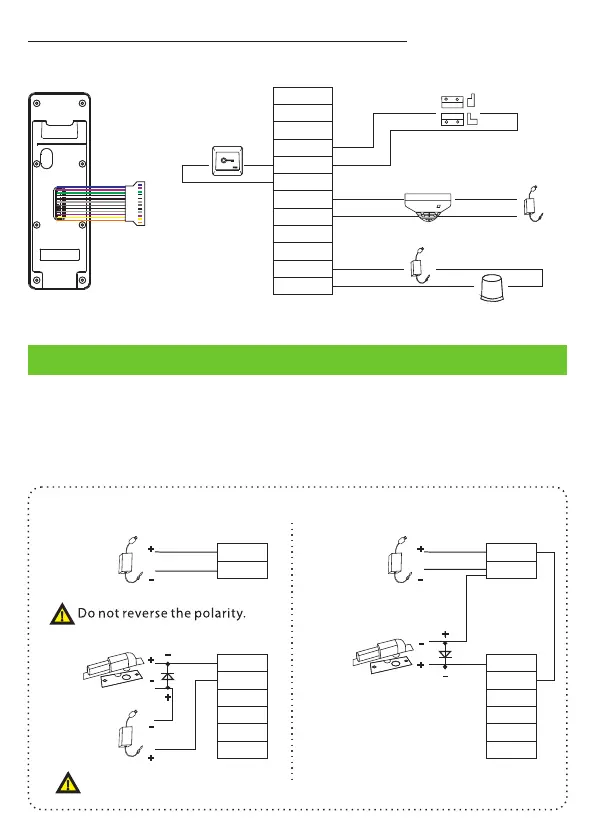

Door Sensor, Exit Button, Alarm & Auxiliary Connection
4
NC
COM
NO
SEN
GND
BUT
AUX
GND
BELL+
BELL-
ALARM+
ALARM-
+
-
-
+
Alarm
Alarm Power
NO
COM
+
-
Smoke
Detector
ExitButton
Door
Sensor
Lock Relay Connection
The system supports Normally Opened Lock and Normally Closed Lock. The NO
LOCK (normally unlocked when power-on) is connected with 'NO' and 'COM'
terminals, and the NC LOCK (normally locked when power-on) is connected with 'NC'
and 'COM' terminals. Take NC Lock as an example below:
1)Device not sharing power with the lock2)Device sharing power with the lock
Normally Closed Lock
Normally Closed Lock
GND
DC12V
FR107
Maximum 30V 3A input.
+12V
DC12V
GND
DC12V
FR107
+12V
NC
COM
NO
SEN
GND
BUT
NC
COM
NO
SEN
GND
BUT

ZKTeco SpeedFace-V3L Specifications

General

Display type	LCD
Screen shape	Flat
Built-in display	Yes
Display diagonal	2.4 \
Display size (HxV)	240 x 320 mm
Internal memory	256 GB
Processor cores	2
Internal storage capacity	512 GB
Operating system installed	Linux
Type	Face recognition terminal
Access code reader	-
Authentication type	Biometric, Face recognition
Access chip/card reader	No
Face recognition distance	0.5 - 2 m
False Rejection Rate (FRR)	0.02 %
False Acceptance Rate (FAR)	0.01 %
International Protection (IP) code	IP65
Operating temperature (T-T)	-5 - 45 °C
Total megapixels	1 MP
RS-485 ports	1
Package weight	800 g

Weight and Dimensions

Depth	58.5 mm
Width	185 mm
Height	20 mm
Weight	300 g
