ZKTeco SpeedFace-V5L TI Quick Start Guide

7
TXD
RXD
GND
RS232
Reader
485+
485-
GND
RXD
GND
TXD
RS232
Reader
RS485
Reader
RXD2
TXD2
GND
RXD
TXD
GND
485A
485B

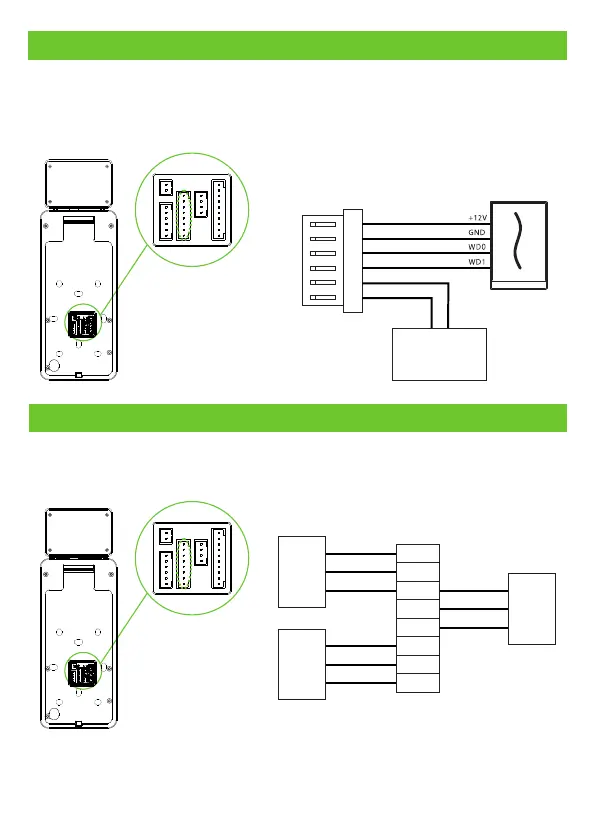

RS485 and RS232 Connection
Wiegand Reader Connection
Wiegand Reader
Access controller
+12V
IWD1
IWD0
GND
WD1
WD0
Wiegand card reader connects to the top 4 pins of the wiegand terminal and the last
two pins are used by the Access controller, as shown in the following figure. It sends the
credentials to the device via wiegand communication.
The RS485 and the RS232 lets user connect to multiple readers to the device. Two RS232
and one RS485 can be connected to the terminal, as shown in the figure below.

ZKTeco SpeedFace-V5L TI Specifications

General

Device Type	IP Access Controller
Model	SpeedFace-V5L TI
Fingerprint Capacity	10, 000
Card Capacity	10, 000
RFID Capacity	10, 000
Transaction Capacity	200, 000
Logs Capacity	200, 000
Display	5-inch Touch Screen
Wiegand Signal	Wiegand Input/Output
Temperature Detection	Yes
Palm Capacity	3, 000
Communication	TCP/IP, Wi-Fi
Interfaces	RS485, USB Host
Authentication Method	Face, Palm, Card, Fingerprint, Password
Face Recognition Speed	<0.3s
Power Supply	12V 3A
Face Capacity	6, 000 (1:N)
