ZKTeco SpeedFace-V5L TI Quick Start Guide

6

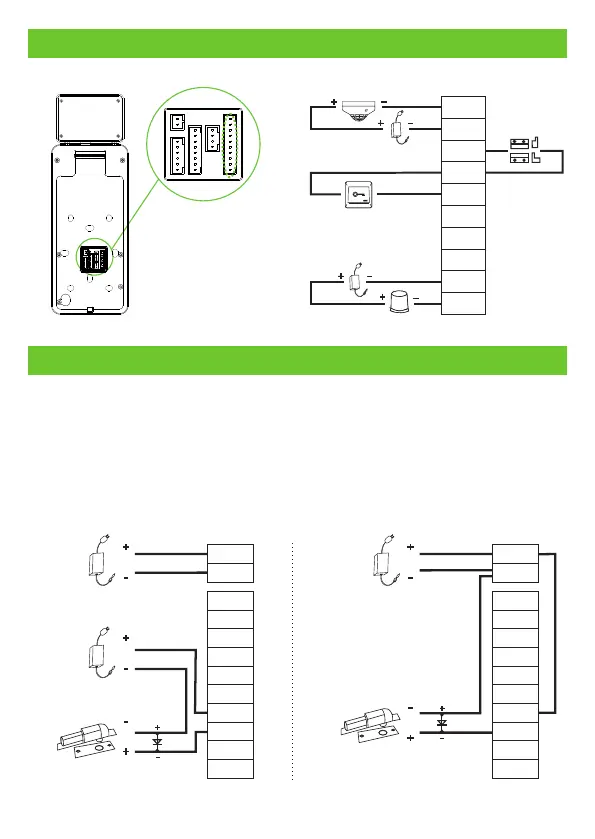

Lock Relay Connection
The system supports both Normally Opened Lock and Normally Closed Lock.
The NO Lock (normally opened when powered) is connected with 'NO1' and
'COM' terminals, and the NC Lock (normally closed when powered) is connected
with 'NC1' and 'COM' terminals. The power can be shared with the lock or can be
used separately for the lock, as shown in the example with NC Lock below:
1) Device not sharing power with the lock 2) Device sharing power with the lock
Normally Closed Lock
FR107
AUX
GND
SEN
GND
BUT
NO1
COM
NC1
AL+
AL-
+12V
GND
DC12V
+12V
GND
FR107
AUX
GND
SEN
GND
BUT
NO1
COM
NC1
AL+
AL-
DC12V
Normally Closed Lock
DC12V
Door Sensor, Exit Button & Alarm Connection
AUX
GND
SEN
GND
BUT
NO1
COM
NC1
AL+
AL-
Door Sensor
ExitButton
Alarm's power switch
Alarm
Smoke Detector

ZKTeco SpeedFace-V5L TI Specifications

General

Device Type	IP Access Controller
Model	SpeedFace-V5L TI
Fingerprint Capacity	10, 000
Card Capacity	10, 000
RFID Capacity	10, 000
Transaction Capacity	200, 000
Logs Capacity	200, 000
Display	5-inch Touch Screen
Wiegand Signal	Wiegand Input/Output
Temperature Detection	Yes
Palm Capacity	3, 000
Communication	TCP/IP, Wi-Fi
Interfaces	RS485, USB Host
Authentication Method	Face, Palm, Card, Fingerprint, Password
Face Recognition Speed	<0.3s
Power Supply	12V 3A
Face Capacity	6, 000 (1:N)
