ZKTeco SpeedFace-V5L Quick Start Guide

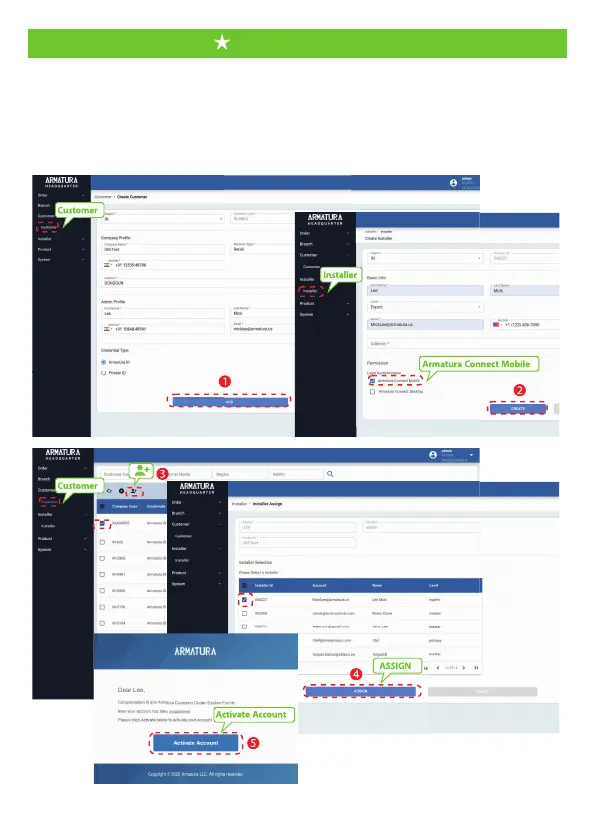

Connect to ACMS
The Branch/Partner needs to create a customer on the ACMS first. Then add an
installer and assign the installer to the customer. Once the installer has activated the
account, the SpeedFace-V5L Series can be assigned.
Set up on Armatura Connect
1.
28

ZKTeco SpeedFace-V5L Specifications

General

Face capacity	6000
Housing color	Black, Grey
Event capacity	200000
Built-in processor	Yes
Face recognition duration	1 s
Operating temperature (T-T)	-10 - 45 °C
Temperature measurement range	34 - 45 °C
Temperature measurement accuracy	0.3 °C
Temperature measurement distance	30 - 50 cm
Operating relative humidity (H-H)	10 - 90 %
Input current	3 A
Input voltage	12 V
Ethernet LAN (RJ-45) ports	1
Screen shape	Flat
Display diagonal	5 \
Display technology	TFT
Sensor type	CMOS
Camera resolution (numeric)	2 MP
Type	Face recognition terminal

Weight and Dimensions

Depth (with stand)	22.5 mm
Width (with stand)	91.9 mm
Height (with stand)	220 mm
