ZKTeco SpeedFace-V5L Quick Start Guide

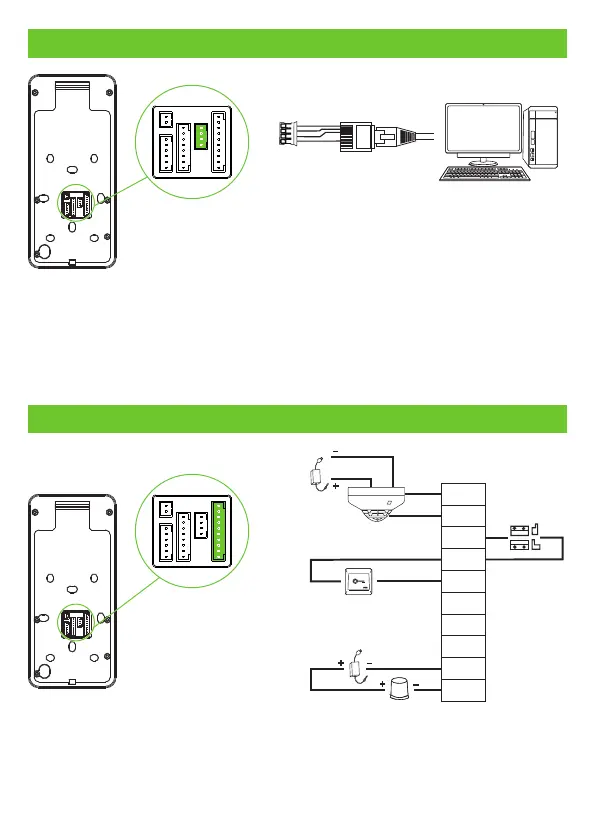

Ethernet Connection
Default IP address: 192.168.1.201
Subnet mask: 255.255.255.0
Click [COMM.] > [Ethernet] > [IP Address] , input the IP address and click [OK].
8
7
6
RJ 45
5
4
3
2
1
IP address: 192.168.1.130
Subnet mask: 255.255.255.0
TX+
TX-
RX+
RX-
PC
Note: In LAN, IP addresses of the server (PC) and the device must be in the
same network segment when connecting to software.
Door Sensor, Exit Button & Alarm Connection
AUX
GND
SEN
GND
BUT
NO1
COM
NC1
AL+
AL-
Door Sensor
ExitButton
Alarm's Power Switch
Alarm
Smoke Detector
NO
COM
7

ZKTeco SpeedFace-V5L Specifications

General

Face capacity	6000
Housing color	Black, Grey
Event capacity	200000
Built-in processor	Yes
Face recognition duration	1 s
Operating temperature (T-T)	-10 - 45 °C
Temperature measurement range	34 - 45 °C
Temperature measurement accuracy	0.3 °C
Temperature measurement distance	30 - 50 cm
Operating relative humidity (H-H)	10 - 90 %
Input current	3 A
Input voltage	12 V
Ethernet LAN (RJ-45) ports	1
Screen shape	Flat
Display diagonal	5 \
Display technology	TFT
Sensor type	CMOS
Camera resolution (numeric)	2 MP
Type	Face recognition terminal

Weight and Dimensions

Depth (with stand)	22.5 mm
Width (with stand)	91.9 mm
Height (with stand)	220 mm
