ZKTeco SpeedFace-V5L Quick Start Guide

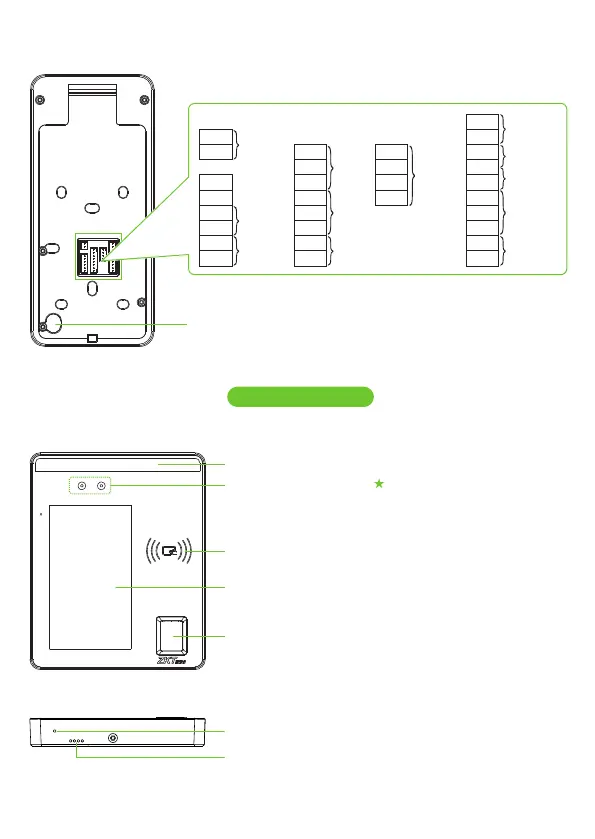

Magnetic Tamper Switch
RS232
Rs485
485B
485A
GND
TXD
RXD
GND
TXD2
RXD2
RS232
GND
12V
+12V
GND
IWD0
IWD1
WD0
WD1
TX+
RX+
TX-
RX-
AUX
AL+
AL-
NC1
COM
NO1
BUT
GND
SEN
GND
Lock
Alarm
Exit Button
Sensor
Auxiliary
Input
Ethernet
Power In
Wiegand
In
Wiegand
Out
2
SpeedFace H5L Series
Flash
Camera & Palm Collector
5" Touchscreen
Fingerprint Sensor
Card Reading Area
Reset
Speaker

ZKTeco SpeedFace-V5L Specifications

General

Face capacity	6000
Housing color	Black, Grey
Event capacity	200000
Built-in processor	Yes
Face recognition duration	1 s
Operating temperature (T-T)	-10 - 45 °C
Temperature measurement range	34 - 45 °C
Temperature measurement accuracy	0.3 °C
Temperature measurement distance	30 - 50 cm
Operating relative humidity (H-H)	10 - 90 %
Input current	3 A
Input voltage	12 V
Ethernet LAN (RJ-45) ports	1
Screen shape	Flat
Display diagonal	5 \
Display technology	TFT
Sensor type	CMOS
Camera resolution (numeric)	2 MP
Type	Face recognition terminal

Weight and Dimensions

Depth (with stand)	22.5 mm
Width (with stand)	91.9 mm
Height (with stand)	220 mm
