TS200 Series Tripod Turnstile User Manual
Page | 4

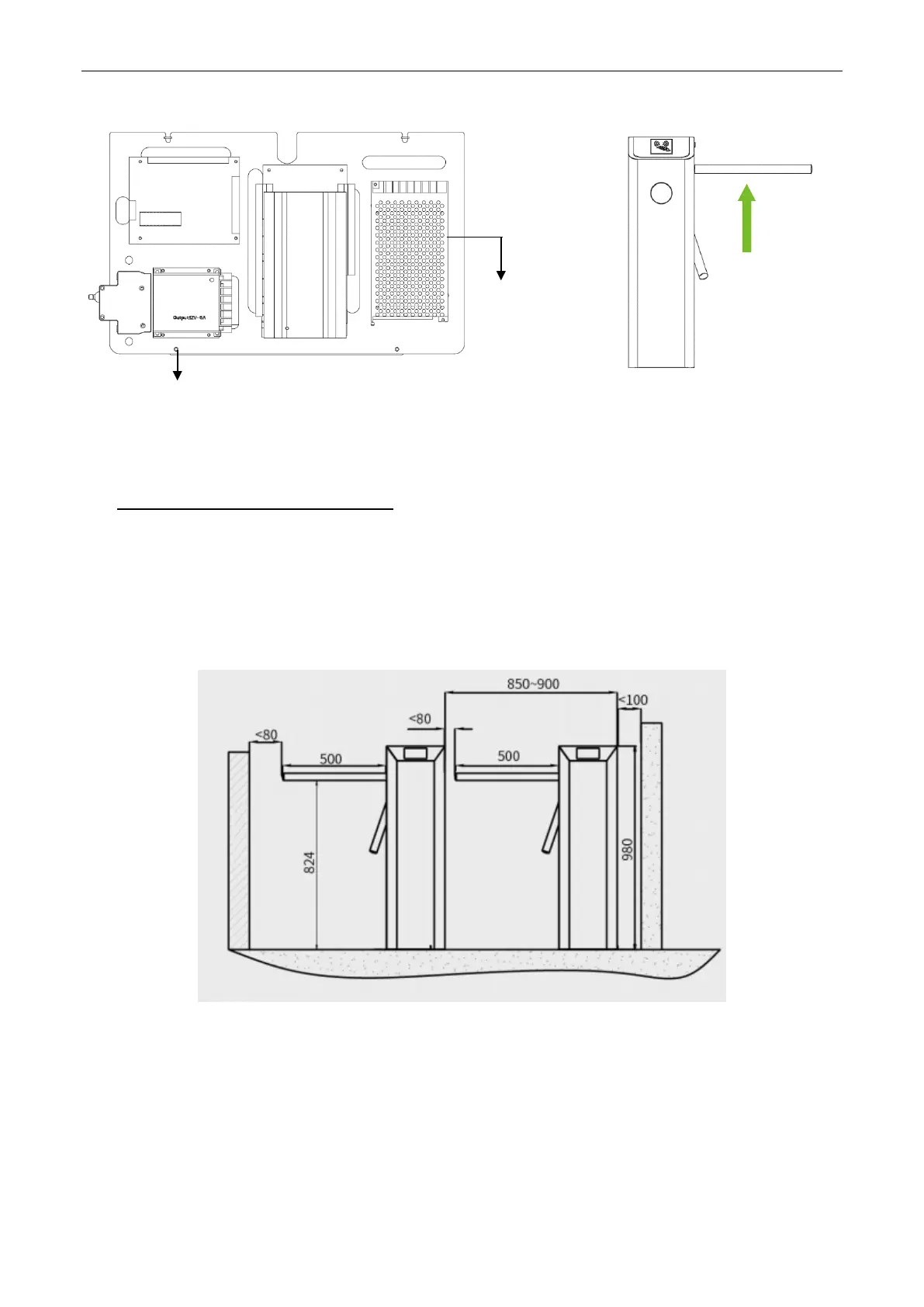

Figure 2-2
3 Equipment Installation
Installation Conditions 3.1
The equipment must be installed on concrete ground, ensuring that expansion bolts can be secured firmly.
You are suggested to install an assistant framework or fence to form a passageway, as shown in Figure 3-1.
Figure 3-1
Notes:
1. When installing the tripod turnstile against the wall, please reserve a distance of at least 100 mm in
order to open the cover for future adjustment and maintenance.
2. The spare space from the end of the arm shall not be greater than 80 mm (see Figure 3-1).
switch in the side
direction of this
power supply.
To Next Page
