TS200 Series Tripod Turnstile User Manual
Page | 6
Installation 3.3
Drill holes.
Drill holes according to the locations of holes as shown in Figure 3-3.

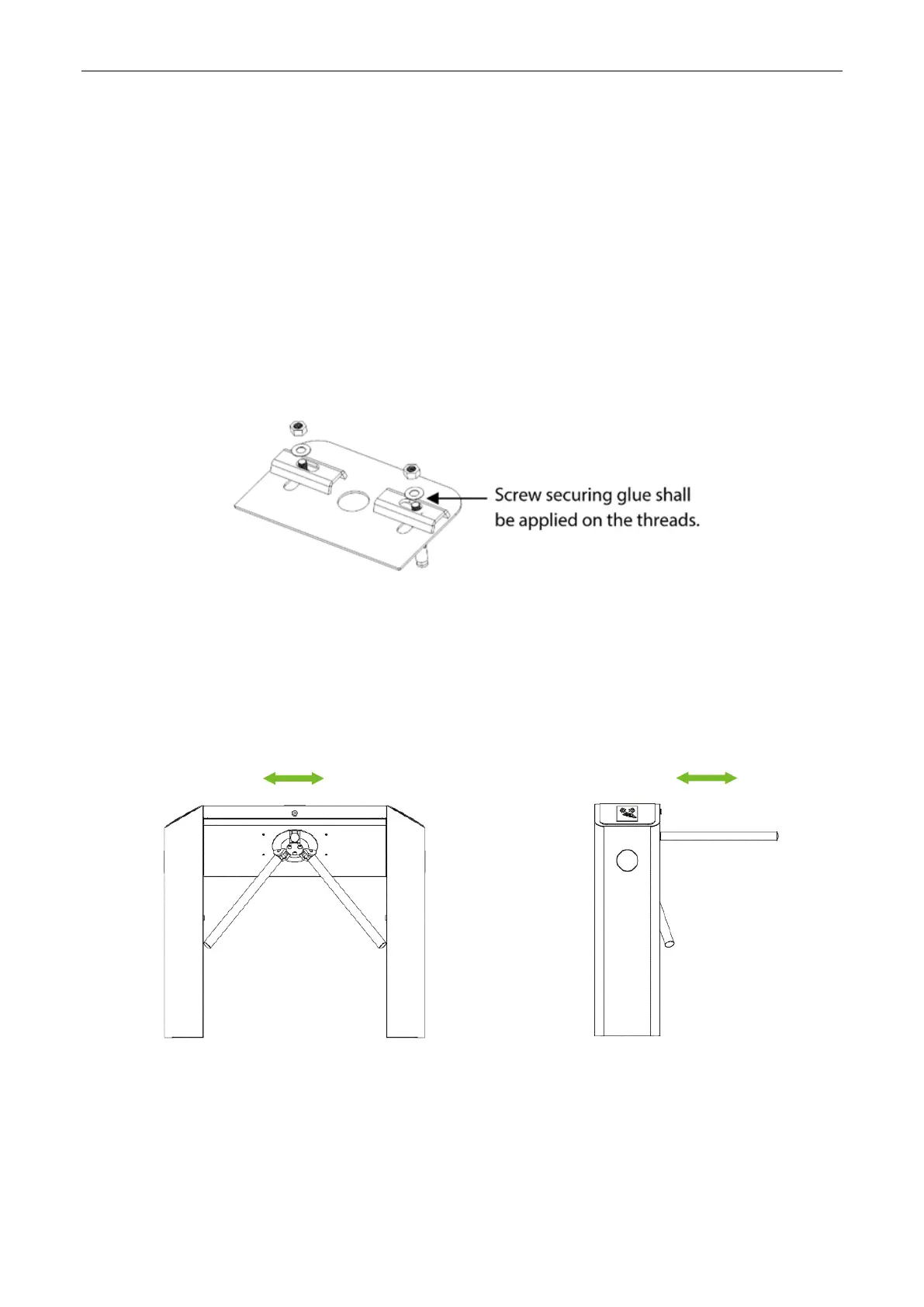

Fix the mounting plate to its original position.
Place the mounting plate properly, then apply screw securing glue on the surface and threads of the
expansion bolts, install four expansion bolts to secure the mounting plate, and use a horizontal ruler to
test the levelness of the mounting plate. If the mounting plate is not levelled, adjust it with the gaskets
provided. Note that all the four expansion bolts must be installed properly, as shown in Figure 3-4.
Figure 3-4
Install the turnstile on the mounting plate and tighten the screws. Apply screw securing glue before
using and putting gaskets on the screws to adjust the direction of the turnstile. If the tripod turnstile is
not levelled, you can place gaskets to adjust, as shown in Figure 3-5.
Installation levelness Installation levelness
Figure 3-5
