TS200 Series Tripod Turnstile User Manual
Page | 7

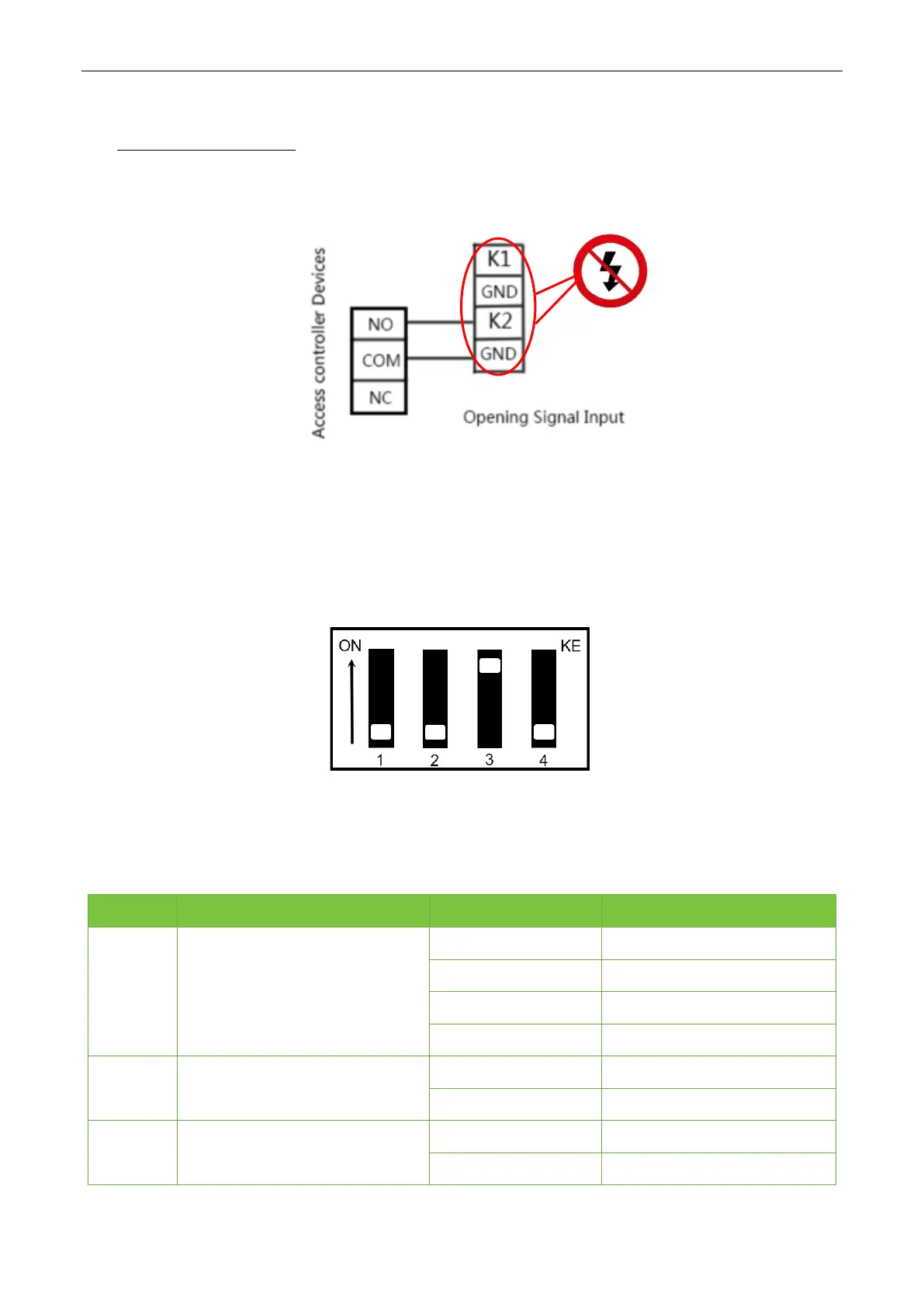

4 Cable Diagram
Connection Diagram of the Access Controller 4.1
Figure 4-1
Note: The lock relay duration of access controller device needs to be set to 1s. Forbidden using electrically
charged objects to connect to the port of Opening Signal Input, otherwise will damage the control board.
DIP Switch Configuration for SATT-L-V1.1 4.2
Figure 4-2
4.2.1 Function Introduction
No. Function Setting Bit Setting Tips
1&2 Opening Mode
00 (default) Two-way Swipe
10 Left Free, Right Swipe
01 Left Swipe, Right Free
11 Two-way Prohibited
3 Opening Duration
0 10S
1 (default) 5S
4 Continue Passing Function
0 (default) Open
1 Close
