ZKTeco TS2000PRO Series User Manual

TS2000 Pro Series Tripod Turnstile User Manual
P a g e |
11
Copyright©2020 ZKTECO CO., LTD. All rights reserved.
4 Cable Diagram

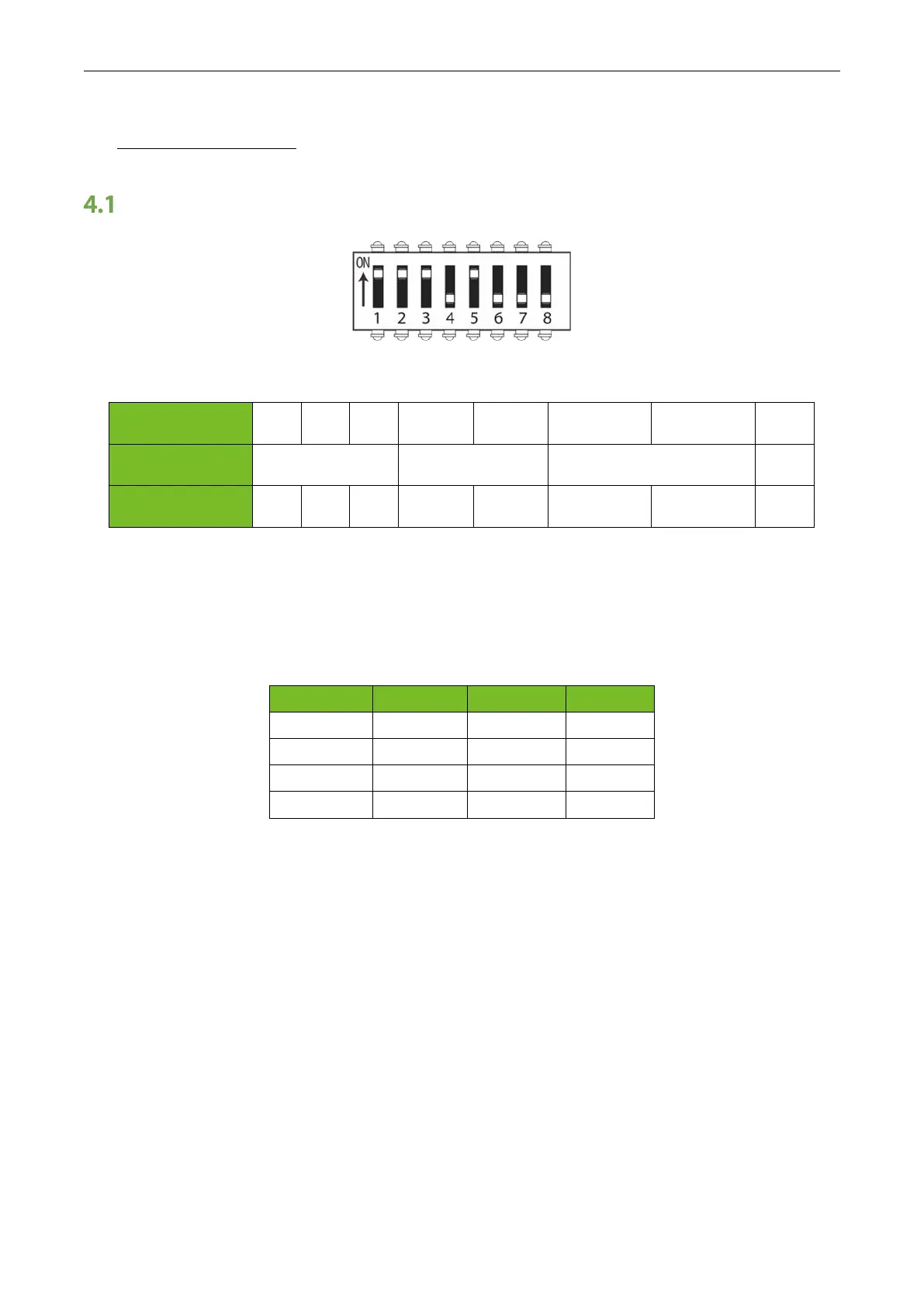

DIP K1 Switch Configuration
Figure 4-2
Pin
1
2
3
4
5
6
7
8
Function Setting
Opening Duration
Direction Indicator
Continue Passing Function
Alarm
Default
1
1
1
0
1
0
0
0
4.1.1 Setting the Turnstile Opening Duration
Opening duration refers to the period of time from opening to closing once the turnstile receives an
opening signal. In the DIP switch, number 1, 2, and 3 are used for duration setting. It can be set to different
values from 5s to 60s according to the following chart.
Bit Setting
Duration
Bit Setting
Duration
111
5s
011
30s
110
10s
010
40s
101
15s
001
50s
100
20s
000
60s
Note: The turnstile’s opening duration is set to 5s by default.
4.1.2 Direction Indicator
It is to indicate whether the passage allows people to pass. The green arrow means passing is allowed
while the red "X" means passing is prohibited. The indicator status can be set through number 4 and 5 in
the DIP switch. The description of the bit settings are as follows:
11 = One-way traffic, left passing is allowed.
10 = One-way traffic, right passing is allowed.
01 = Passing is allowed in both directions.
