ZKTeco X8-BT User Manual

3

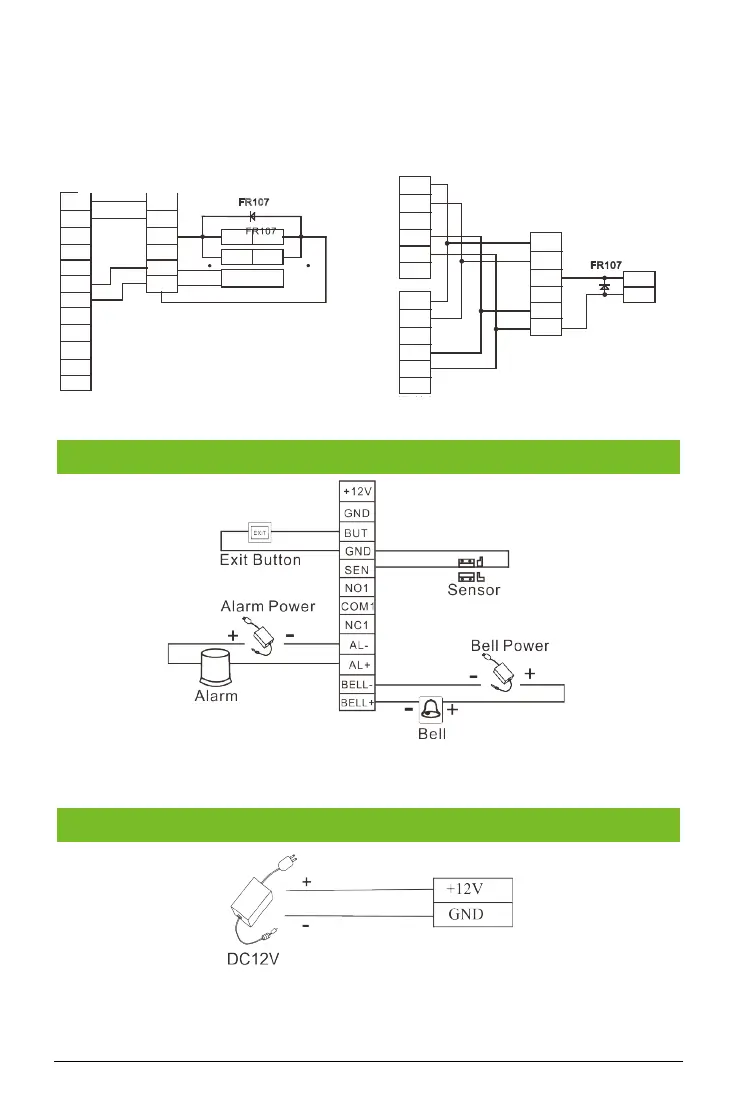

5. Connection with Power
 I: device’s current output, U
LOCK
: lock voltage, I
LOCK
: lock current.
3) One device controls two locks 4) Two devices control one lock
+12V
GND
BUT
GND
SEN
COM1
NC1
AL-
AL+
BELL -
BELL +
NO1
+
-
+12V
GND
NC
PUSH
NO
GND
通电常闭锁
V1+
V2+
V1-
V2-
出门开关
门禁机
专业门禁电源
+12V
GND
...
COM1
...
NO1
+
-
+12V
GND
NC
PUSH
NO
GND
通电常闭锁
V+
V-
+12V
GND
...
COM1
...
NO1
门禁机1
门禁机2
专业门禁电源
Only devices with an alarm consuming ≤ 12V DC can be connected.
Input 12V DC, 500mA (50mA in idle status). Positive is connected with +12V, negative is
connected with GND (do not reverse the polarities).
4. Connection with Other Devices
Access Control Device
Professional Access
Control Power
Access Control Device 2
Access Control Device 1
Professional Access
Control Power
Exit Button
NC Lock
NC Lock

ZKTeco X8-BT Specifications

General

Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	20 - 80 %
DC input voltage	12 V

Weight and Dimensions

Width	90 mm
Height	38.9 mm
