Zodiac MS FILTER D470 - I Dimensions and Marking

4

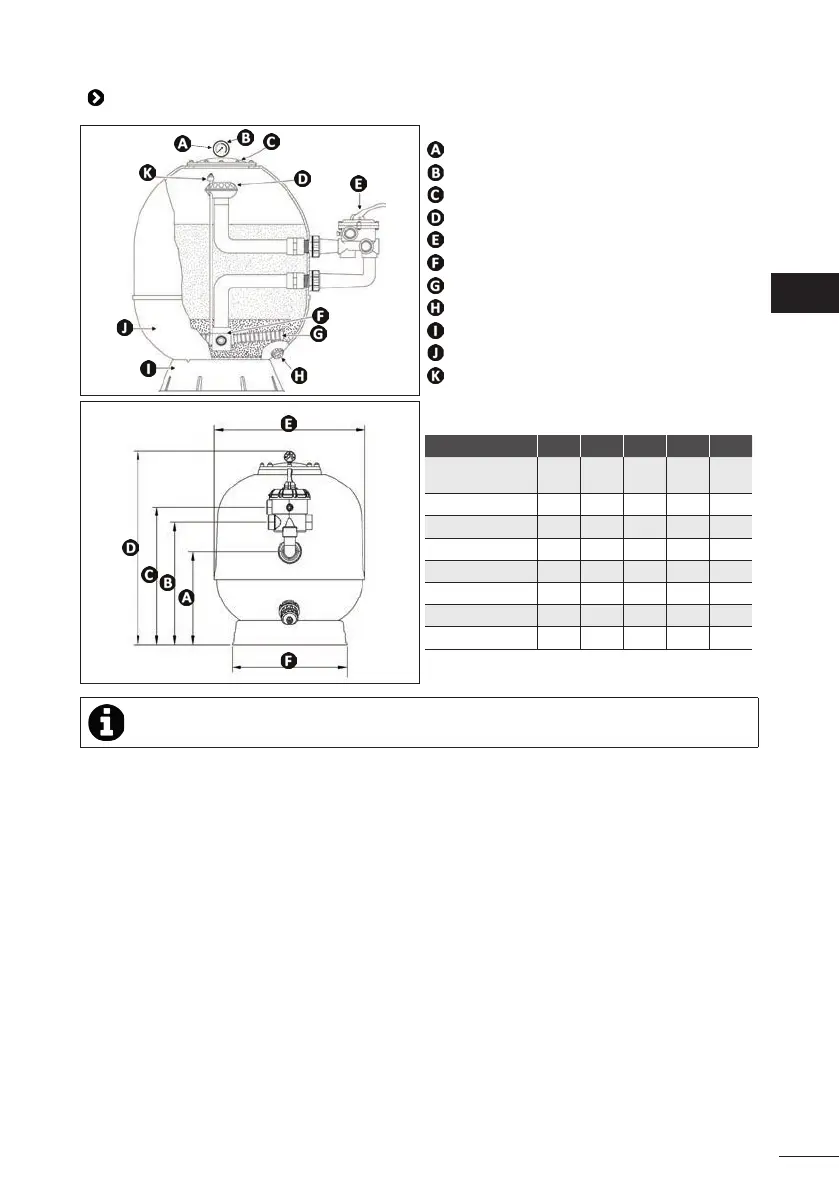

1.3 I Dimensions and marking
: Air bleed screw (on the back of the pressure gauge)
: Pressure gauge
: Cover + seal
: Diuser
: Mulway valve
: Manifold
: Strainers
: Drain plug
: Base
: Tank
: Automac air release
Dimension in mm D470 D530 D650 D800 D950
Clearance below
valve
310 320 375 390 420
A 340 350 405 430 460
B 465 475 530 660 690
C 529 539 594 736 766
D 705 745 815 984 1027
E (external) 475 532 645 798 950
E (internal) 450 510 635 770 920
F 347 400 490 625 705
Filter for indoor use or under a shelter.
