Zodiac T3 User Manual

Page 10
ENGLISH
Zodiac
®
T3
®
Pool Cleaner
|
Owner’s Manual

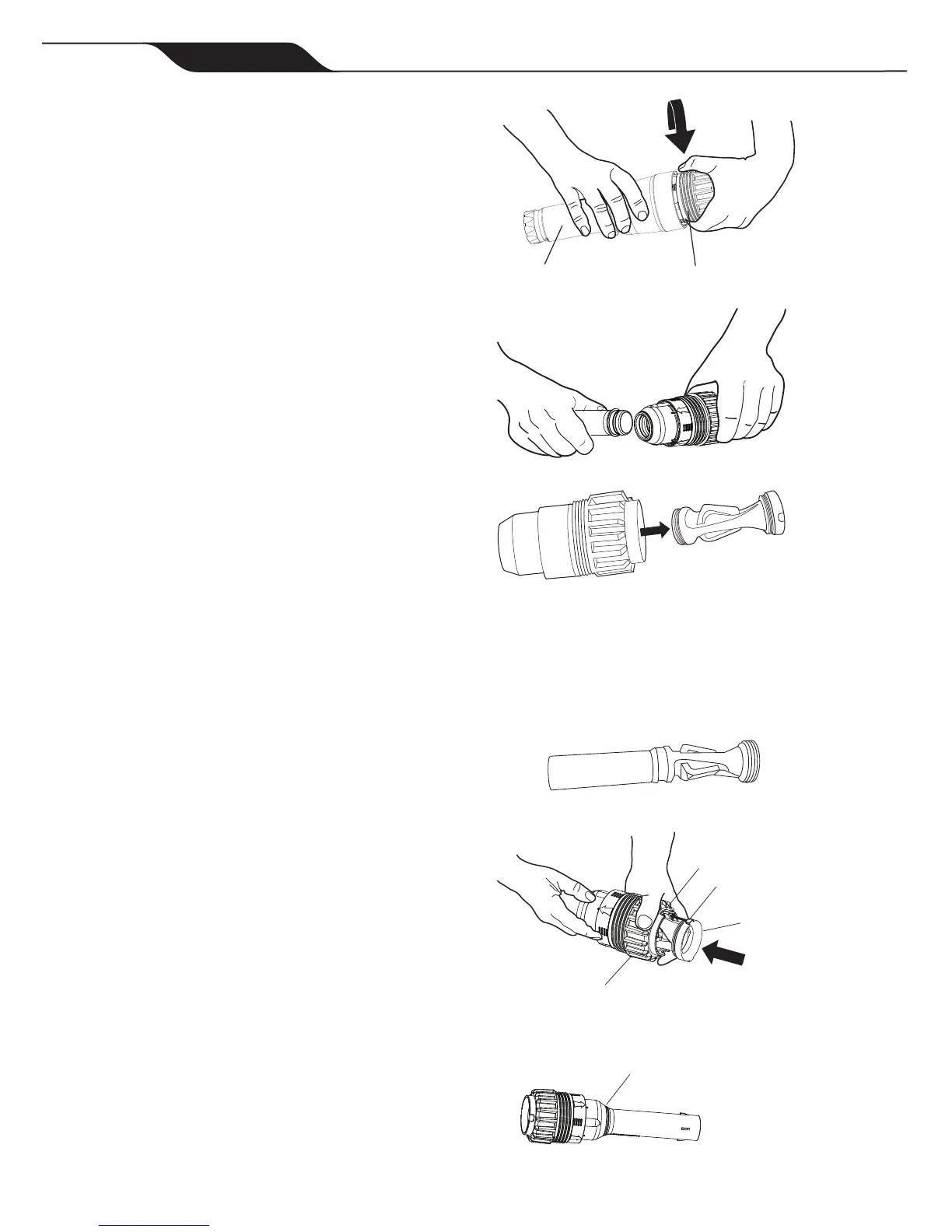

3. Unscrew the cup assembly, remove outer
extension tube and set aside (see Figure 5).
4. Pullinnerextensiontubefirmlyawayfromcup
assembly to separate (see Figure 6) , and set
aside.
5. Removediaphragmfromcupassembly(see
Figure7)andinspectforforeignobjectsor
wear.Rinsethoroughlywithcleanwaterbefore
reinstalling.Replacediaphragmifnecessary.
Figure 6
Figure 5
Outer Extension
Tube
Cup Assembly
To reinstall the diaphragm:
1. Attachdiaphragmtoinnerextensiontube
(seeFigure8).
2. Insert inner pipe and diaphragm into cup
assembly.Aligndiaphragmtabswithnotches
and pull straight through (do not twist) until the
edge of the diaphragm is visible
(seeFigures9and10).
Figure9
Cup Assembly
Notch
Tab
Diaphragm
Edge of
Diaphragm
Figure 10
Figure7
Figure8

Zodiac T3 Specifications

General

Pool Type	In-ground
Warranty	2 years
Pool Surface	Concrete, tile, vinyl, fiberglass
Cleaning Coverage	Floor and walls
Power Source	Pool Filtration System
Weight	18.5 lbs
Type	Suction-side pool cleaner
