Zodiac T3 User Manual

Page 9
ENGLISH
Owner’s Manual
|
Zodiac
®
T3
®
Pool Cleaner

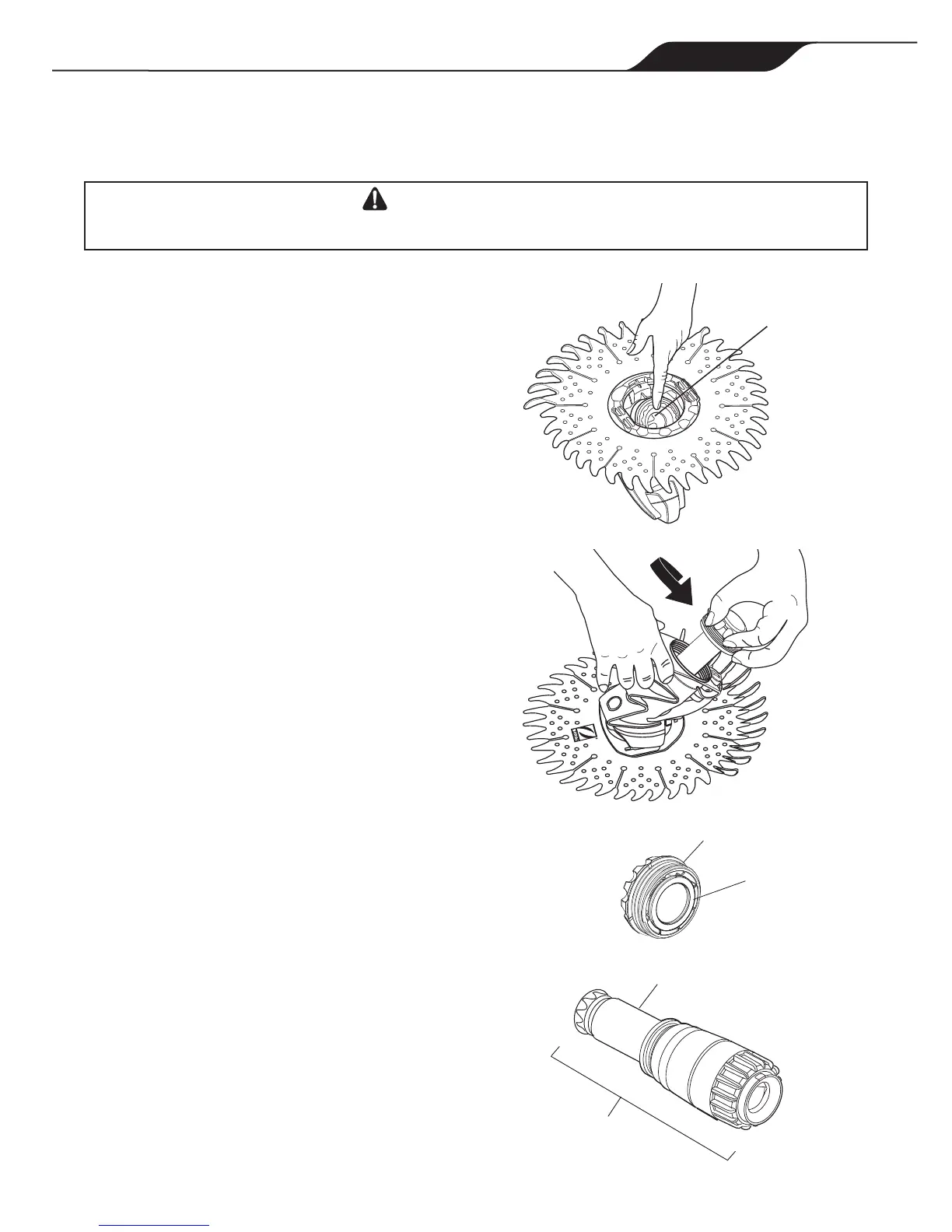

Diaphragm
Figure 1
Clearing the Diaphragm
WARNING
To avoid serious injury, turn off the suction pump for the cleaner before performing this step.
If the cleaner stops, turn off the suction pump and
remove the cleaner from the water, then check the
diaphragm for blockage.
1. Turn cleaner over (see Figure 1).
2. Inspect diaphragm and push
through debris or obstacles to clear.
If the diaphragm is not blocked, check
it for wear or damage.
To remove the diaphragm:
1. Unthread the handnut and slide it off the engine
outer extension tube (see Figure 2), and set
aside. The upper thrust washer is designed to
stay inside the handnut and detach as a single
unit.(SeeFigure3.)
2. Removetheengine(Figure4)fromthecleaner
body.
Figure 2
Figure3
Handnut
Upper Thrust Washer
Figure4
Outer Extension Tube
Engine

Zodiac T3 Specifications

General

Pool Type	In-ground
Warranty	2 years
Pool Surface	Concrete, tile, vinyl, fiberglass
Cleaning Coverage	Floor and walls
Power Source	Pool Filtration System
Weight	18.5 lbs
Type	Suction-side pool cleaner
