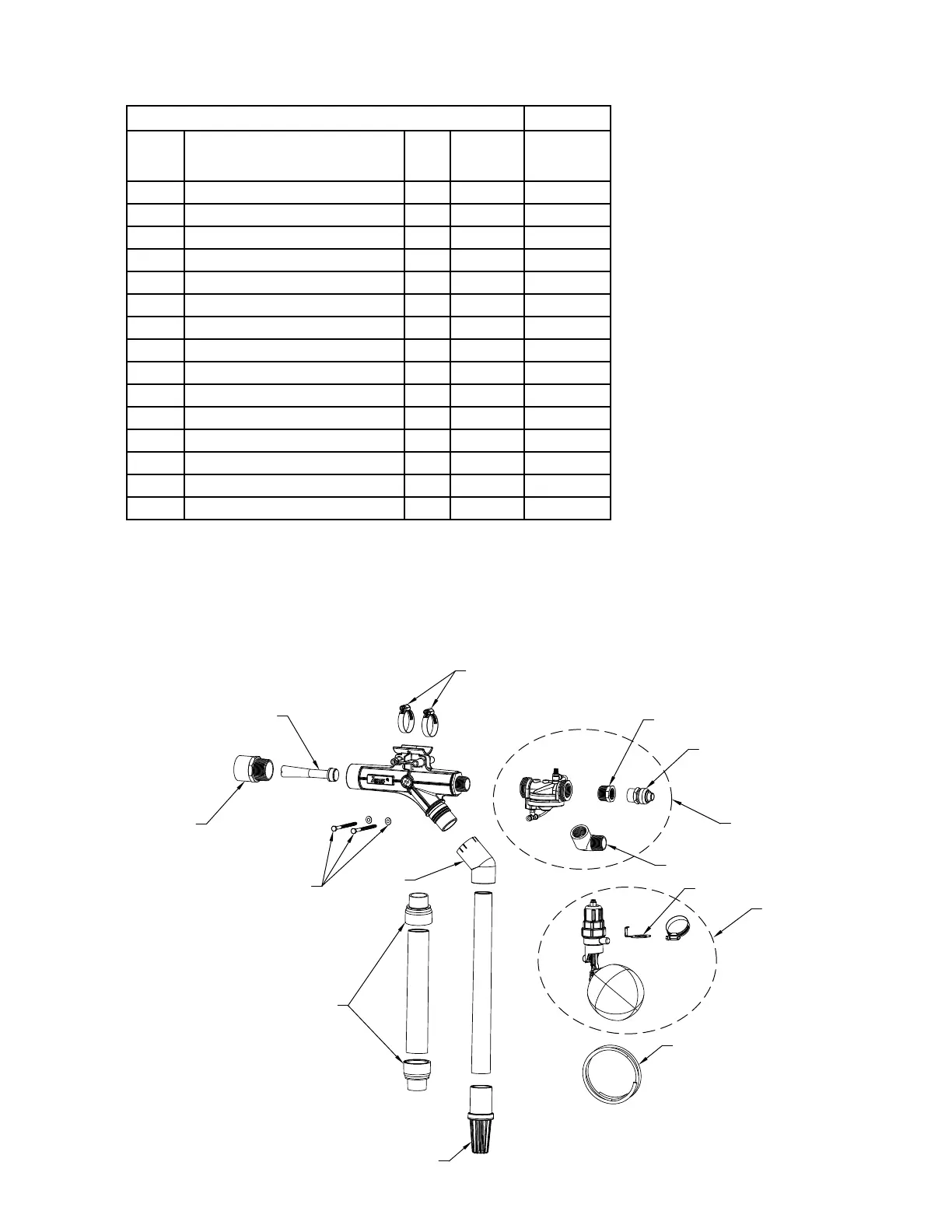

ILLUSTRATED PARTS BREAKDOWN
Flex Service Parts - Model 540 540-A
ITEM DESCRIPTION QTY NOTES
02/19
thru
Current
1 Foot Valve 1 2,4 150260
2 Fitting, Elbow 1 155508
3 Diaphragm Valve Kit 1 156059
4 Fitting, Adapter / MPTxSlip 1 4 155716
5 Lag Bolts & Washers 2 4 156078
6 Clamps 3 3,4 001766
7 Venturi 1 4C5534
8 Tubing 1 4 156343
9 Fitting, Push Connect 1 1,4 155718
10 Fitting, Reducer Bushing 1 1,4 155799
11 Fitting, Elbow / FPTxMPT 1 1,4 155715
12 Float, Kit 1 156077
13 Float , Bracket 1 3 155721
14 Elbow Adapter 2 4 156358
* Hardware Pak 540 1 156131
* Not shown in illustration
Notes:
1. Items included in Diaphragm Valve Kit.
2. Foot valve will need to be cut off as close to top of valve as possible and a new one glued in place.
3. Items included in oat kit
4. Items included in hardware pak
1
8
5
2
6
7
4
3
10
9
12
13
11
14
SK3231
