Maintenance 71

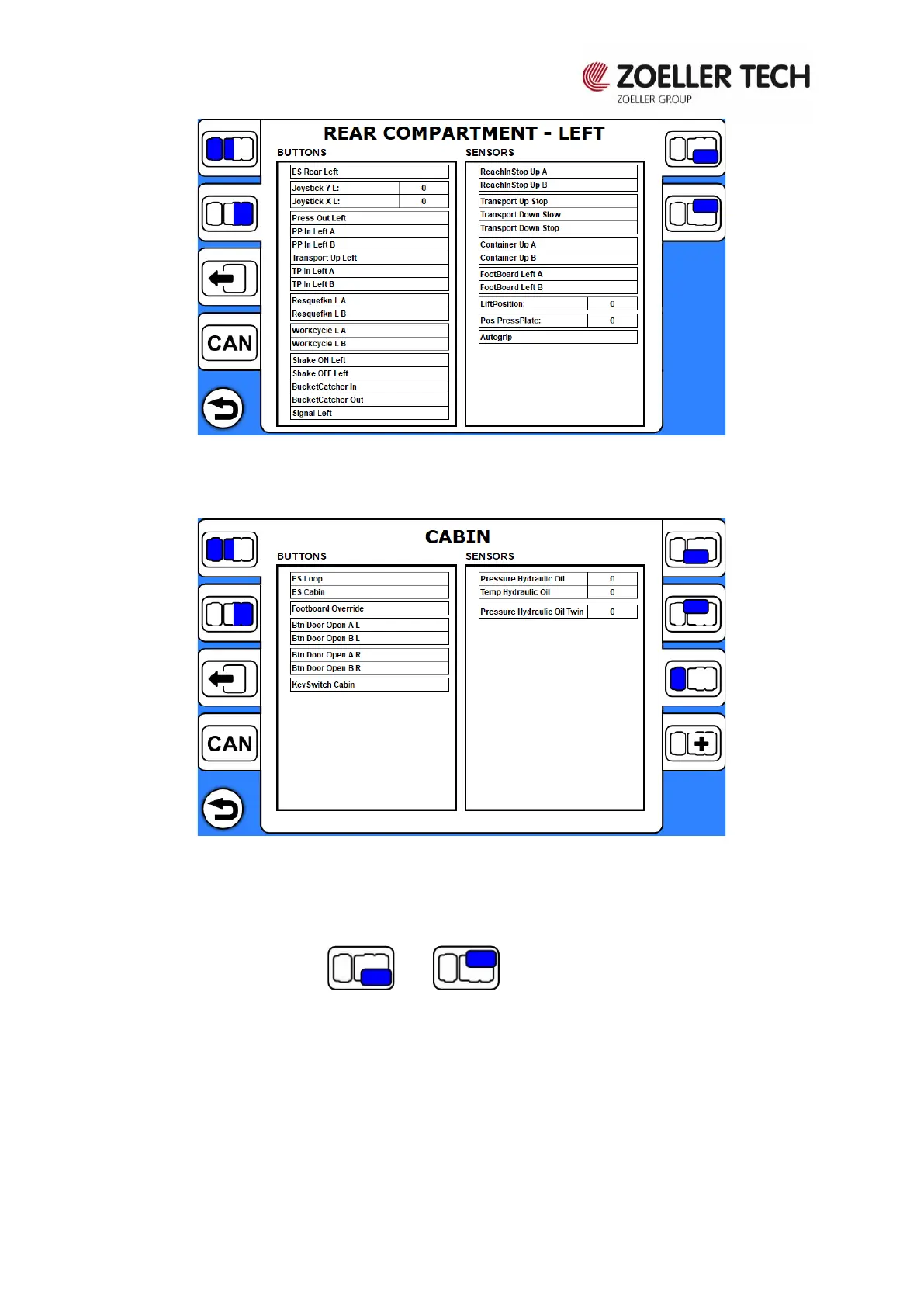

Fig. 8.11 Diagnostics – rear compartment – left
Fig. 8.12 Diagnostics – cabin
The "I/O modules" tab contains information about the status of all digital and analogue vehicle
inputs and outputs. The tabs and contain information about the inputs and
outputs located on both tailgates. When a given input or output is activated, the corresponding
line on the screen will be highlighted in green.
