Maintenance 72

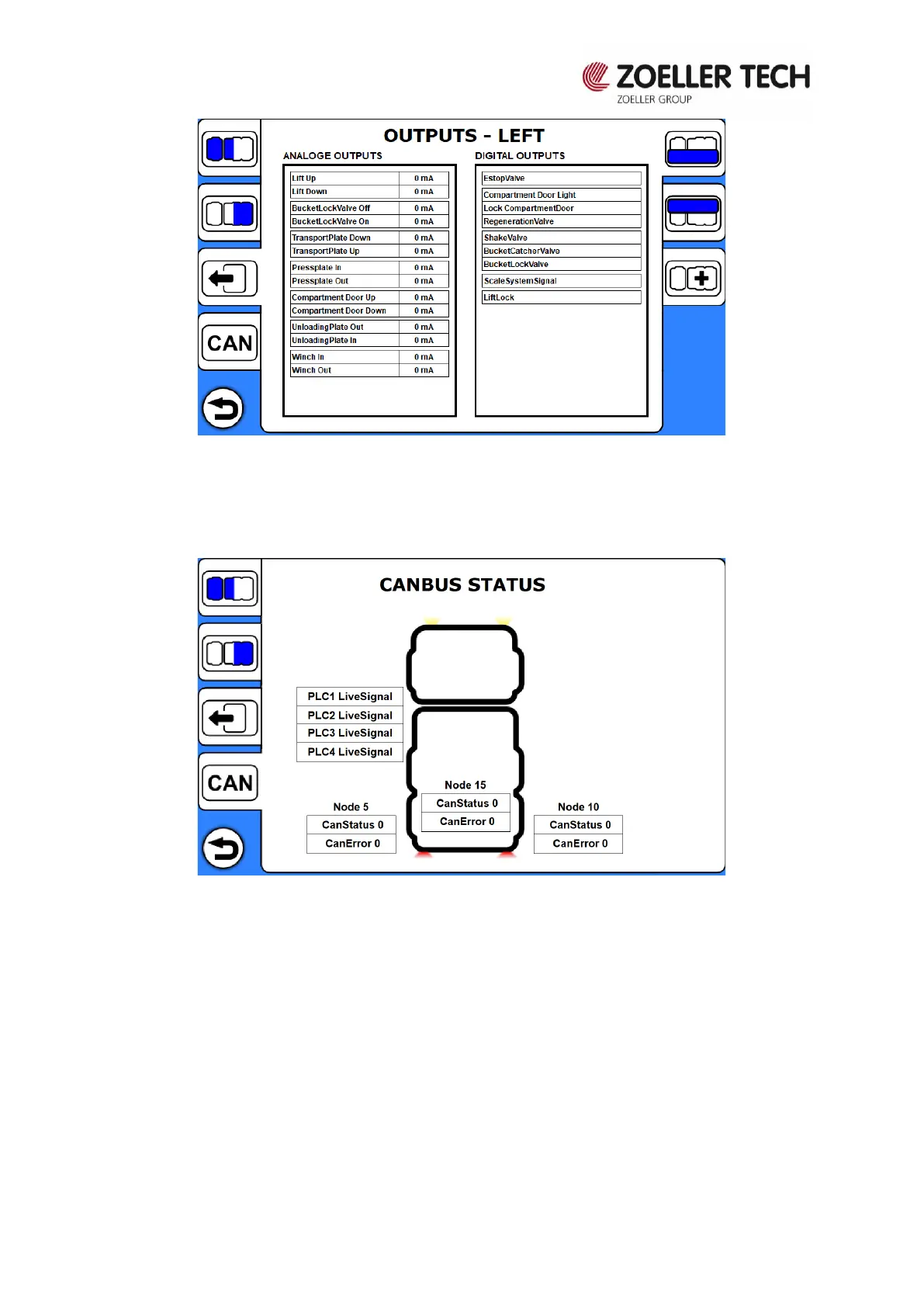

Fig. 8.13 Output menu
The „CANBUS status” tab contains information about CAN bus, see Fig. 8.14.
Fig. 8.14 Diagnostics – CANBUS status
8.8 BOOST CHARGING
If you need to charge the vehicle's battery, do it the usual way - not by boost charging. Boost
charging is not allowed because high voltage can damage the delicate electronics in the
vehicle's body. The label shown in Fig. 8.15 is located at the vehicle battery connection point.
