Zonet ZSR4134WE User Manual

10

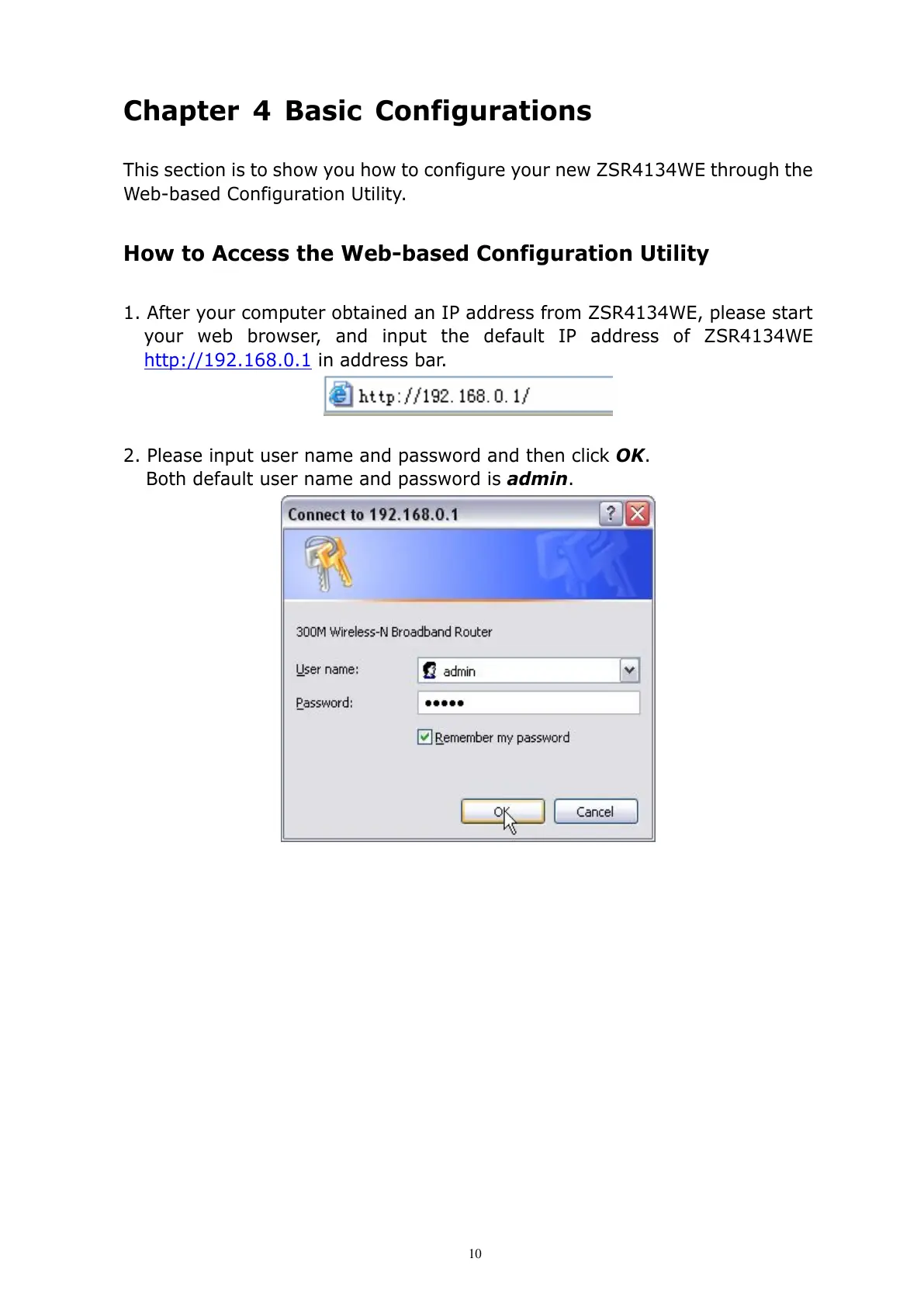

Chapter 4 Basic Configurations
This section is to show you how to configure your new ZSR4134WE through the
Web-based Configuration Utility.
How to Access the Web-based Configuration Utility
1. After your computer obtained an IP address from ZSR4134WE, please start
your web browser, and input the default IP address of ZSR4134WE
http://192.168.0.1 in address bar.
2. Please input user name and password and then click OK.
Both default user name and password is admin.
All manuals and user guides at all-guides.com

Zonet ZSR4134WE Specifications

General

Standards	IEEE 802.11b/g
Wireless Speed	Up to 54 Mbps
Frequency Band	2.4 GHz
Wireless Security	WEP, WPA, WPA2
Antenna	2 x External Antennas
Ports	4 x 10/100 LAN, 1 x 10/100 WAN
Data Rates	1, 2, 5.5, 11, 18, 24, 36, 54 Mbps
