Zontes ZT350-S 2022 User Manual

3
、
INTAKE SYSTEM COMPONENT
19
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1051371-002000 Φ59×9 pipe clamp assembly 1
Fig.1 INTAKE SYSTEM
COMPONENT
Air filter components 1
PROCEDURE:
●Air filter assembly
First, remove the fuel tank, side cover, cushion, PKE, ECU, battery and battery bracket according to the steps
of the corresponding parts to facilitate the next step of disassembly, which will not be repeated here.
Unplug the desorption tube and exhaust tube on the left side. After loosening the clamp ⑴, pull out the air
outlet pipe from the throttle valve body.
Refer to the "Electrical Device Assembly-1" section of this manual "Frame Assembly" on the upper right side
to remove the starter relay and bracket.

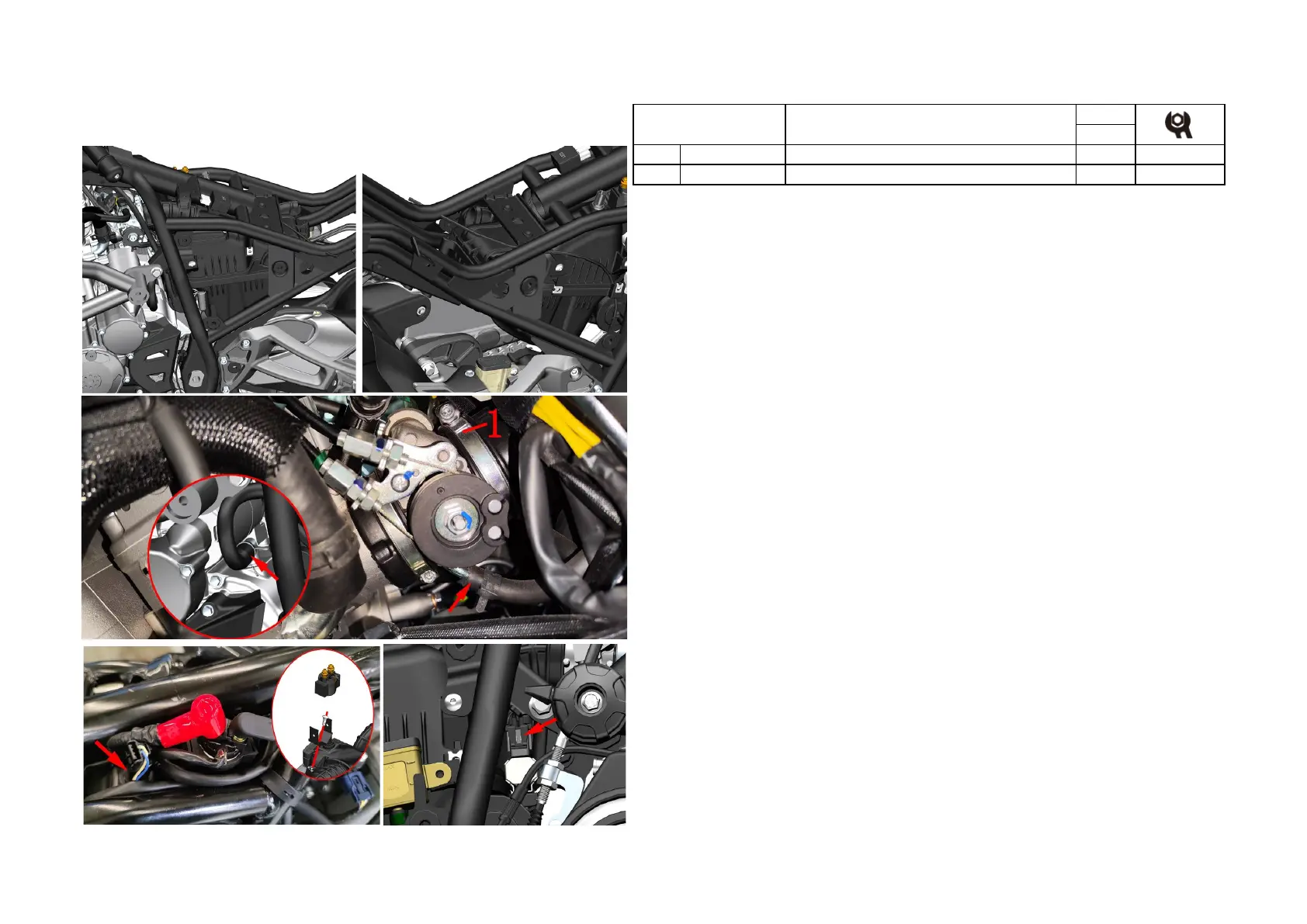

Unplug the temperature sensor indicated by the arrow in Figure 3.
Unplug the canister solenoid valve indicated by the arrow in Figure 4.
CAUTION:
●Remove the side cover, seat cushion,fuel tank, etc. in advance.
●Do not pull the cable hard when unplug the connector.
