Zontes ZT350-S 2022 User Manual

6
、
COOLING SYSTEM COMPONENT
57
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-067093 M6×10 top pin bolt (color Zinc) 1 12±1.5N.m
2 1051654-002000 Combination seal 6×13×1.8 1

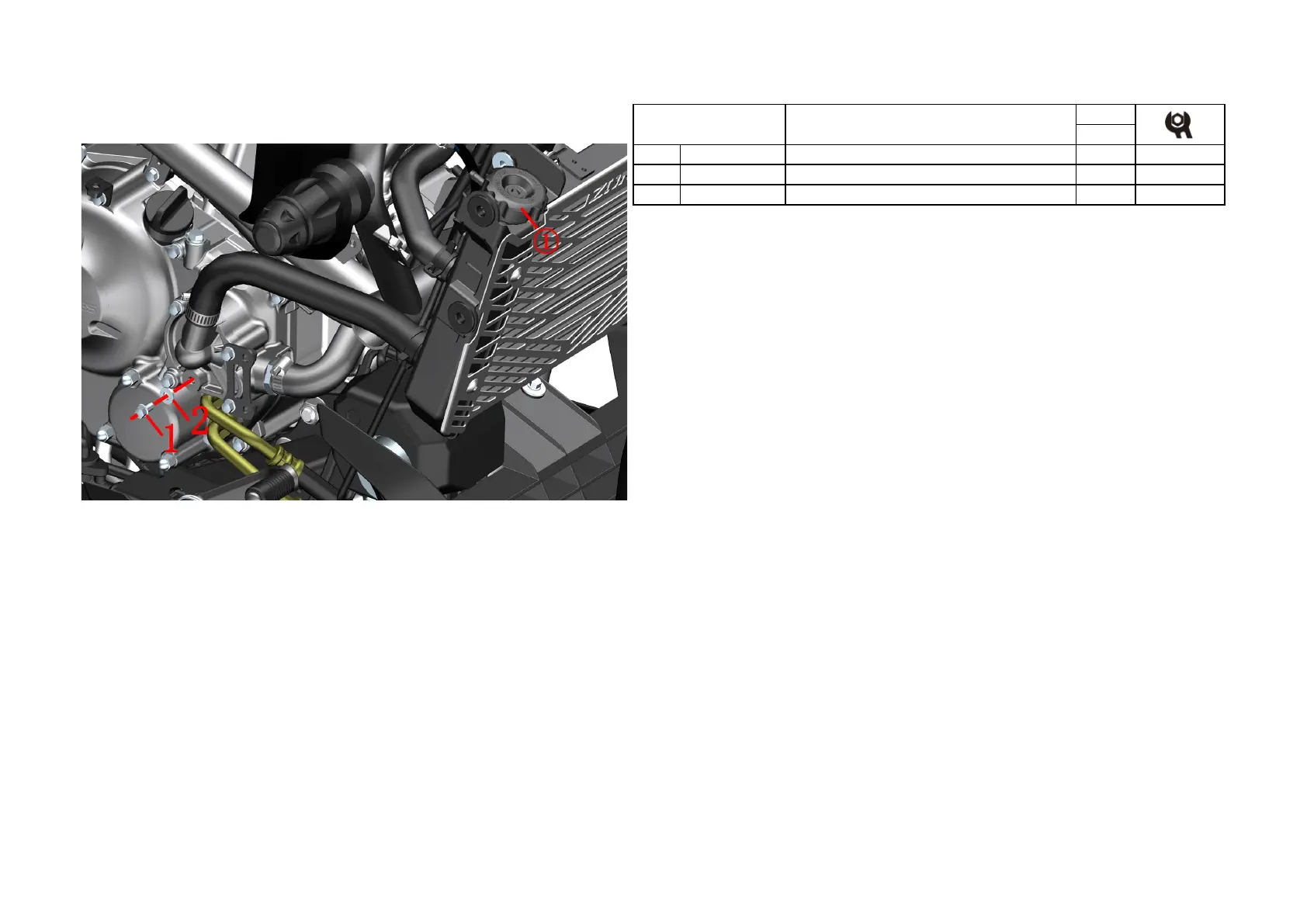

Fig6 COOLING SYSTEM
COMPONENT
Draining coolant
PROCEDURE:
●Drain the cooling liquid
Refer to the previous “Sub tank assembly” procedure to vent the coolant in the sub tank.
After placing the oil pan or other container under the right side of the vehicle, tilt the vehicle to the right.
After wearing waterproof gloves with both hands, remove the bolts ⑴ with a 8# sleeve and remove the
combination seal⑵.
Drain the coolant with a funnel or other device.Open the cooling liquid tank cover① to accelerate the
draining of cooling liquid in the cooling system.
Wipe out all of the cooling liquid on surface every component with a clean cloth.
CAUTION:
●Motorcycle should be well supported.
●Manipulation should start after the engine is completely cooled down.
●Cooling liquid is toxic. Avoid strictly eye or skin contact.
