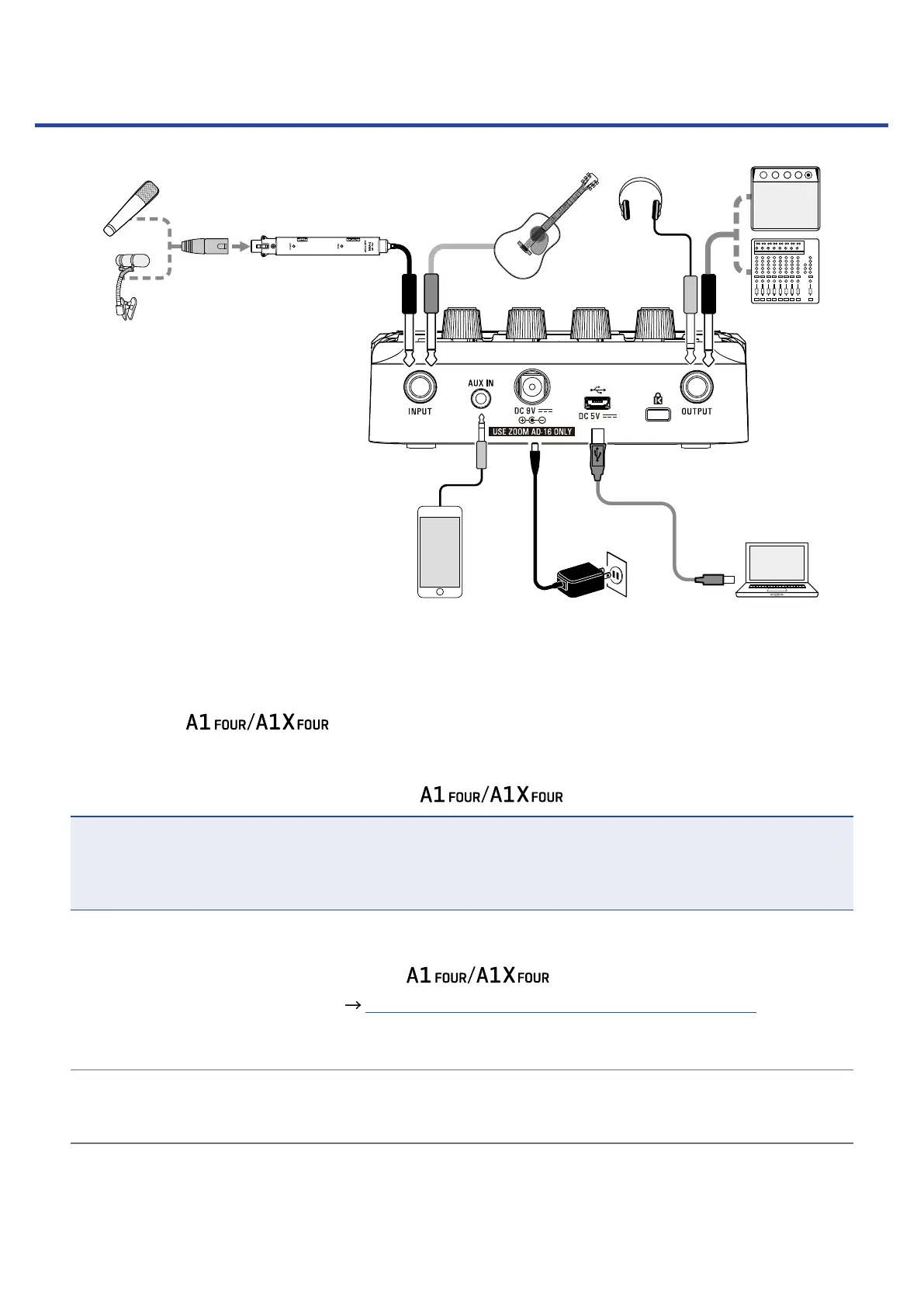

Connecting
1、7
4
25 3
6
MAA-1
1.
Minimize the volume of the output device.
2.
To use AC power supply, connect the dedicated AC adapter (ZOOM AD-16) to the AC adapter jack and
an outlet.
This turns the
power ON.
3.
To use a computer, connect a USB cable (not included) to the USB port and the computer.
When using USB bus power to operate the
, connecting this cable will turn it ON.
Guitar Lab
By using Guitar Lab, you can manage patch memories and edit and add effects, for example, from a
computer.
Download Guitar Lab from the ZOOM website (www.zoom.co.jp/).
4.
Connect an instrument to the INPUT jack.
When using battery power to operate the
, connecting to this will turn it ON.
Use the MAA-1 to connect a mic. (
“Connecting a mic using the MAA-1” on page 11 )
5.
To use external input, connect a portable audio player or other device to the AUX IN jack.
HINT
Signals input through the AUX IN jack will be sent to the OUTPUT jack directly without passing through
the built-in effects.
6.
Connect a PA system or headphones to the OUTPUT jack.
7.
Raise the output device volume.
