Zoom AMS-22 - Front and Back

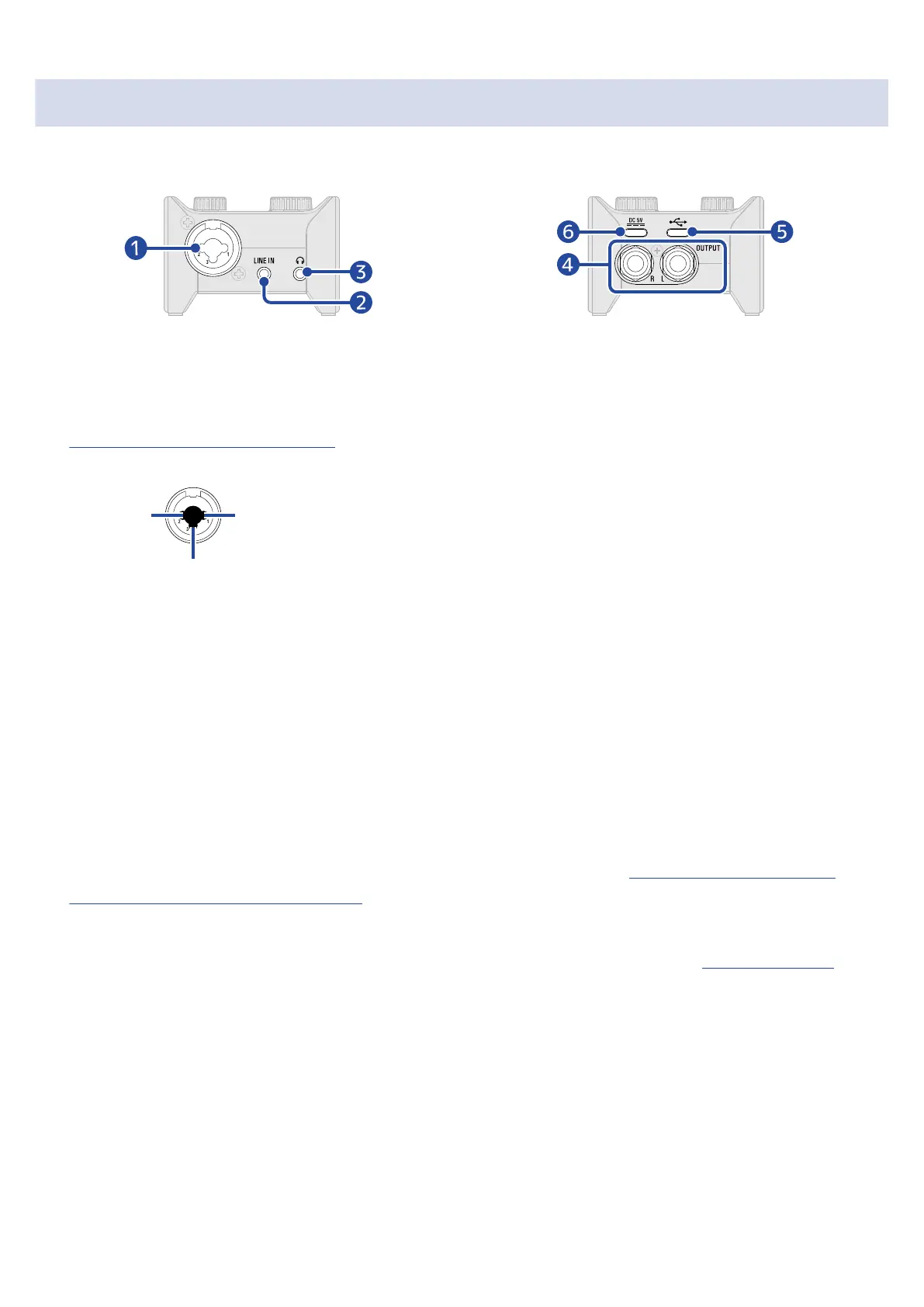

Front and back
■ Front ■ Back
❶
MIC/GUITAR jack
This input jack has a built-in mic preamp. Connect mics, keyboards, guitars and other audio sources
to this. This can be used with both XLR and standard phone (balanced or unbalanced) plugs. (→
Connecting instruments and mics)
XLR
1
2
3
1: GND
2: HOT
3: COLD
❷
LINE IN jack
Use this line jack to connect tablets and other devices with a stereo mini cable.
❸
Headphone output jack
This outputs a stereo signal. Connect headphones to this.
❹
OUTPUT standard phone jacks
These output the left (L) and right (R) channels of a stereo signal. Connect these to speakers with built-
in amplifiers, for example.
❺
USB port (Type-C)
Use this USB port to connect computers, smartphones and tablets. (→ Connecting to a computer,
Connecting smartphones and tablets)
❻
DC 5V port (Type-C)
Use this power supply USB port to connect an AC adapter or mobile battery. (→ Supplying power)
6
