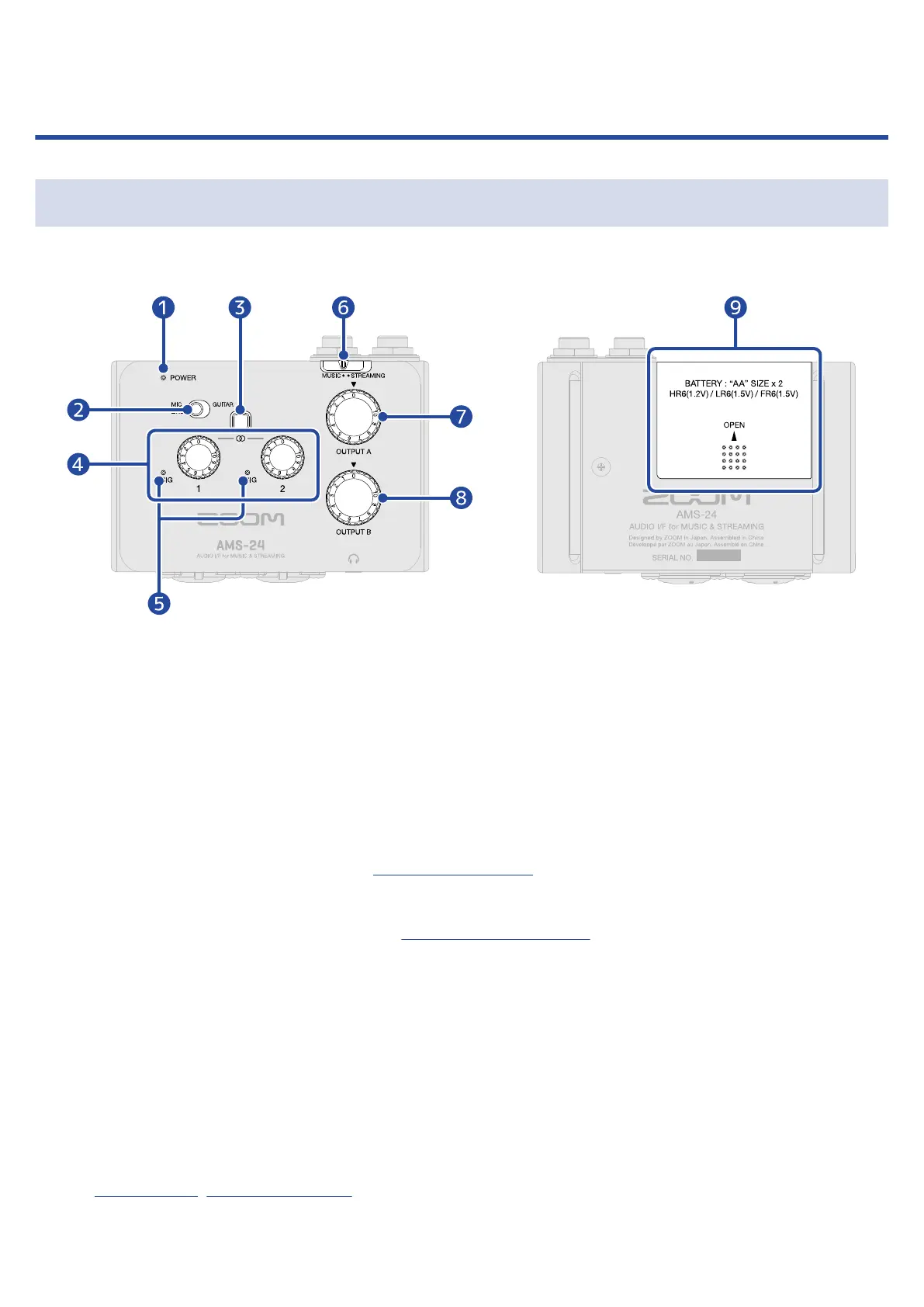

Functions of parts
Top and bottom
Top Bottom
POWER indicator
This lights when the power is on. This blinks when the remaining battery charge is low.
Input type switch
Set this according to the equipment connected to Input 1.
Stereo Link switch
Turn this on when inputting a stereo signal through Inputs 1–2. Input 1 will become the left signal while
Input 2 will become the right signal. When the Stereo Link switch is on, the input gain for both Inputs 1
and 2 is controlled by Gain knob 1. (→ Stereo link overview)
Gain knobs
Use these to adjust input signal levels. (→ Adjusting the input gain)
Level indicators
These indicators show signal levels after gain knob adjustment.
The indicator colors change according to the signal levels.
Lit green: Input signal is present. (−48 dBFS or higher)
Lit red: Input signal is clipping. (−1 dBFS or higher)
MUSIC/STREAMING switch
This switches between MUSIC and STREAMING modes. Set it to MUSIC when using the AMS-24 to make
music with a DAW, for example. Set it to STREAMING when using it to stream on the web, for example.
(→ MUSIC mode, STREAMING mode)
