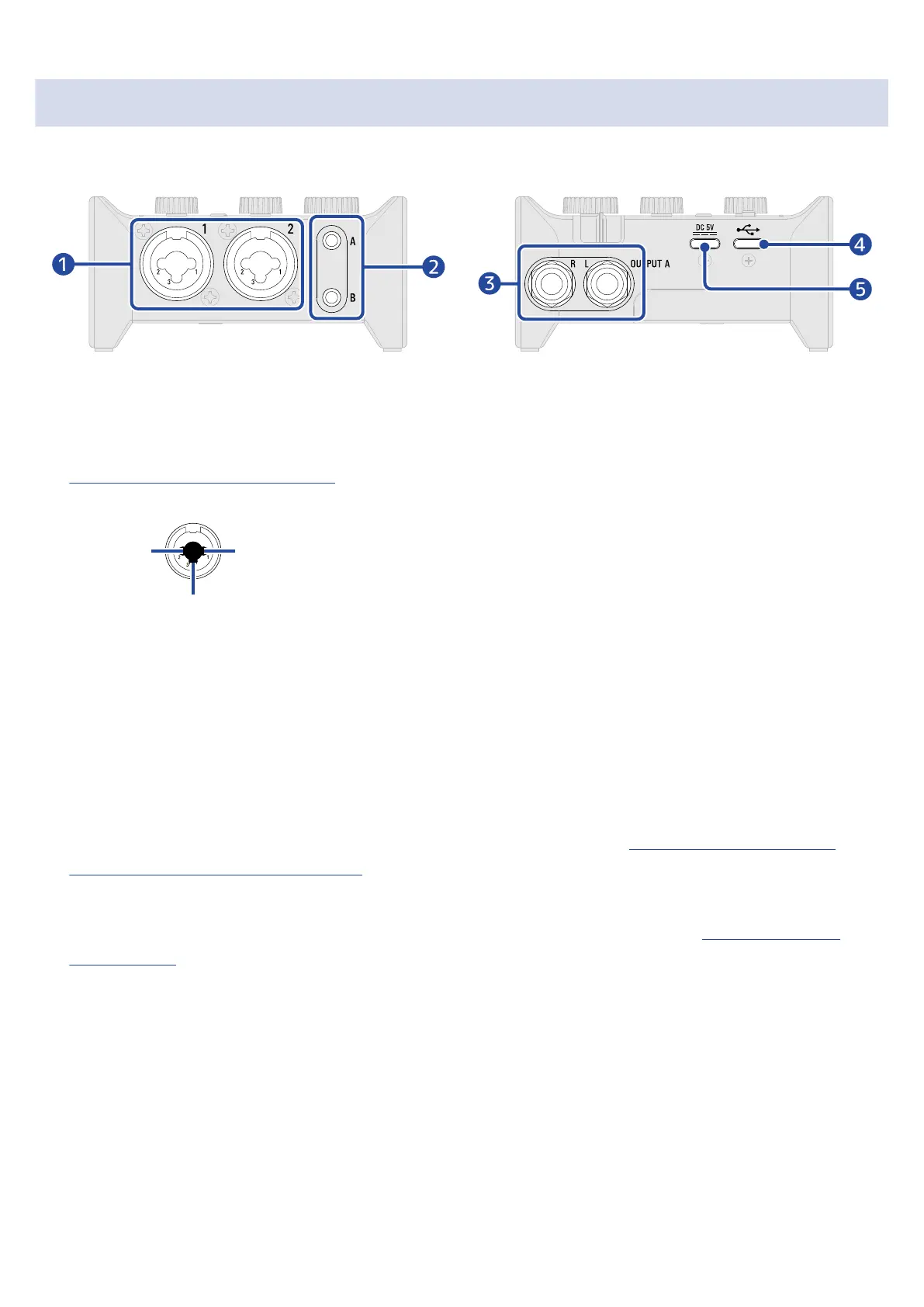

Front and back
■ Front ■ Back
❶
Input jacks 1–2
These input jacks have built-in mic preamps. Connect mics, keyboards, guitars and other audio sources
to them. These can be used with both XLR and standard phone (balanced or unbalanced) plugs. (→
Connecting instruments and mics)
1: GND
2: HOT
3: COLD
❷
Headphone output jacks A–B
These output stereo signals. Connect headphones to these.
❸
OUTPUT A standard phone jacks
These output the left (L) and right (R) channels of stereo signals. Connect these to speakers with built-in
amplifiers, for example.
❹
USB port (Type-C)
Use this USB port to connect computers, smartphones and tablets. (→ Connecting to a computer,
Connecting smartphones and tablets)
❺
DC 5V port (Type-C)
Use this power supply USB port to connect an AC adapter or mobile battery. (→ Using an external
power supply)
