Zoom H5 Quick Guide

Recording
Changing the phantom power setting
16

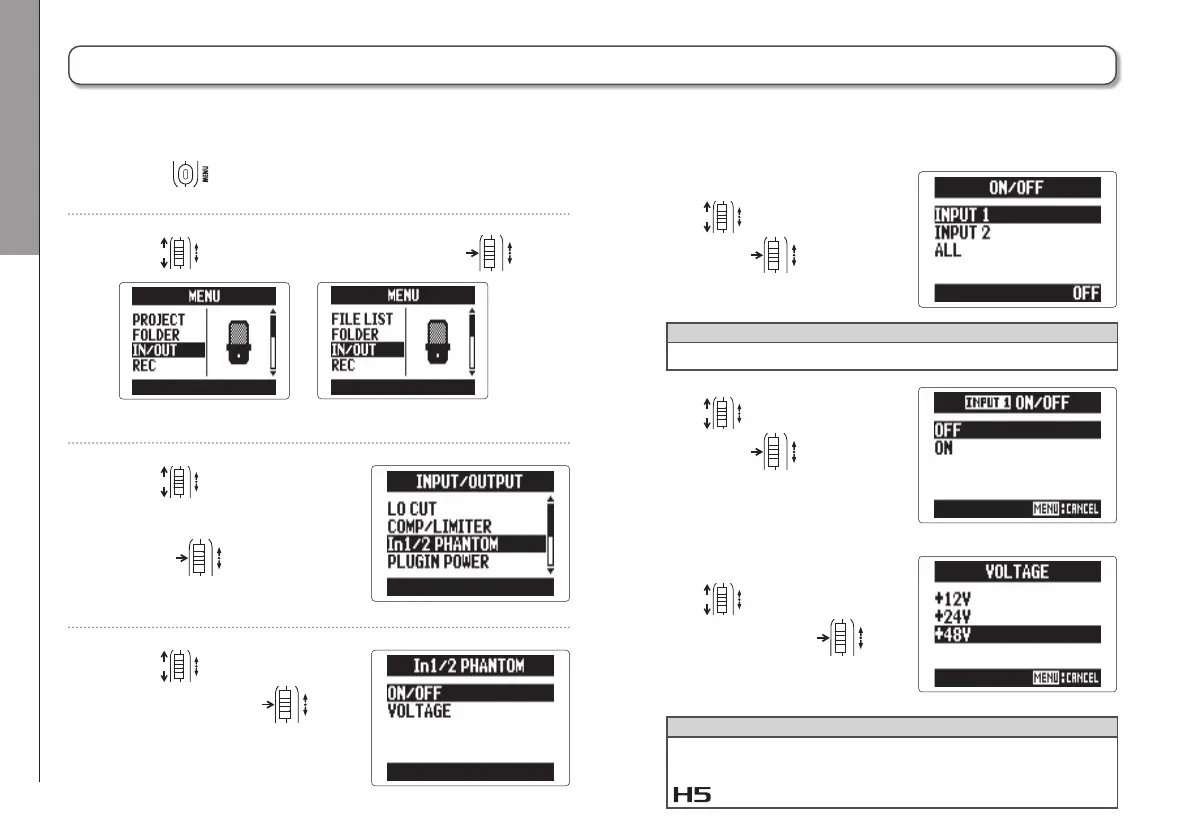

Changing the phantom power setting
1. Press .
2. Use to select “IN/OUT", and press .
MULTI FILE mode STEREO FILE mode
3. Use to select “In1/2
PHANTOM", and
press
.
4. Use to select an
item, and press
.
■ Turning "ON/OFF"
Use
to select an input,
and press .
HINT
Select ALL to use phantom power on both inputs.
Use
to select “ON",
and press .
■ Set the "VOLTAGE"
Use
to select the
voltage, and press .
HINT
If a condenser mic can be used with less than +48V, lower-
ing the voltage will reduce the amount of power that the
uses.
Input 1/2 can provide phantom power of +12V, +24V or +48V.

Zoom H5 Specifications

General

G-shock sensor	No
Number of cameras	1
Sample rate	96 kHz
Audio quality	24 bit
Audio recording	Yes
Microphone sensitivity	45 dB
Compatible memory cards	SD, SDHC
Power source type	Battery
Product color	Black
Microphone maximum input	140 dB SPL
Microphone input impedance	2000 Ω
Interface	1/8\
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Depth	135.2 mm
Width	66.8 mm
Height	42.1 mm
Weight	176 g
