Zoom H5 Quick Guide

Preparations
Display overview
08
Display overview

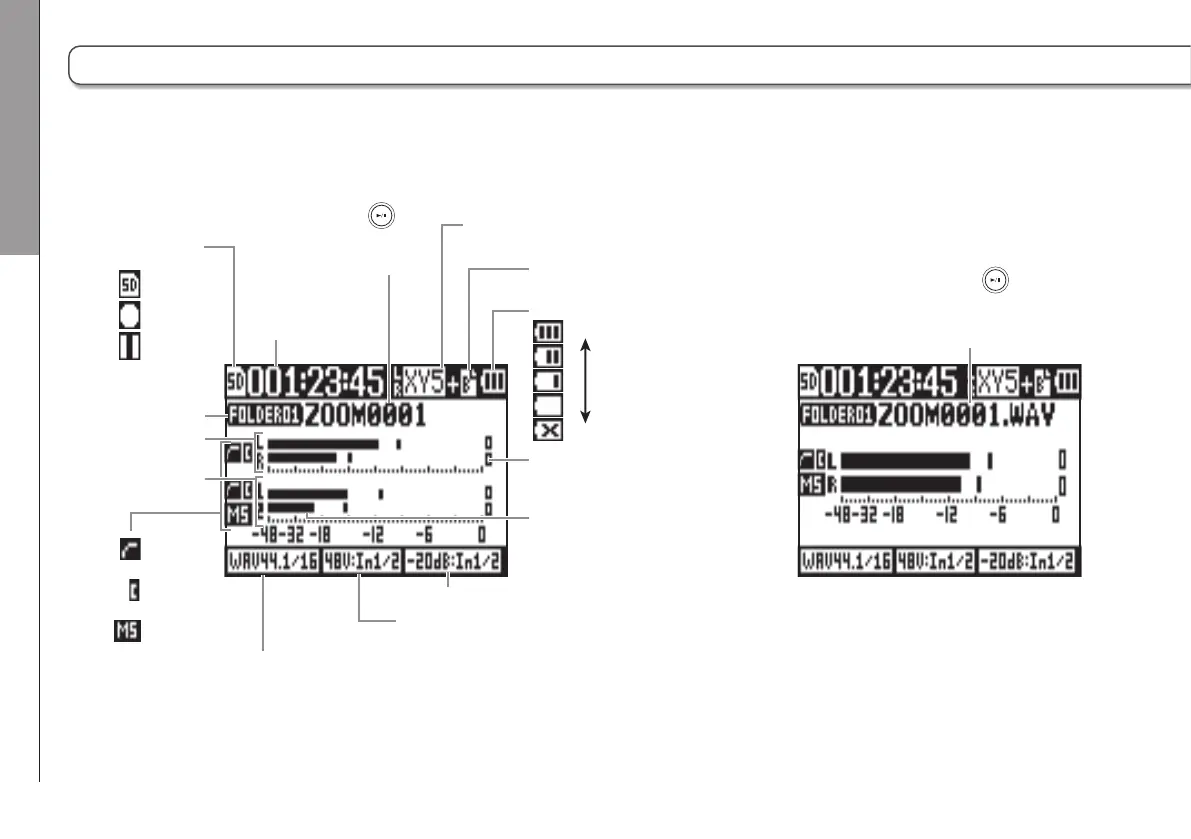

Home/Recording Screen
MULTI FILE Mode STEREO FILE Mode
PAD and inputs affected
Phantom power voltage and
Inputs affected
Folder name
Track L/R
Recording format
(During use as an audio interface,
computer or iPad setting shown)
Stopped
Status icon
Recording
LO CUT
MS STEREO
MATRIX
COMP/
LIMITER
Counter (remaining
recordable time)
Battery charge indicator
Clip
indicator
Name of input capsule
connected to L/R inputs
Paused
Level meter
(Recording input level)
Backup recording
ON
Track 1/2
After pressing
name of project playing
(when recording, name of
recorded project)
Full
Empty
After pressing
name of file playing
(when recording, name of
recorded project)

Zoom H5 Specifications

General

G-shock sensor	No
Number of cameras	1
Sample rate	96 kHz
Audio quality	24 bit
Audio recording	Yes
Microphone sensitivity	45 dB
Compatible memory cards	SD, SDHC
Power source type	Battery
Product color	Black
Microphone maximum input	140 dB SPL
Microphone input impedance	2000 Ω
Interface	1/8\
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Depth	135.2 mm
Width	66.8 mm
Height	42.1 mm
Weight	176 g
